This thread is reserved for CG Cookie Citizens that are participating in the "Vehicle Modeling with Blender" class. Its purpose is to serve as central communication for all participating Citizens (excluding Hobby plan Citizens) to ask Kent and fellow participants questions and to post homework. As the instructor of the class, Kent will be monitoring this thread on a daily basis (especially Mon-Thurs) throughout the month of June to review homework and answer questions.
Free members are welcome to observe the thread but please respect that communication is reserved for Citizens.
Work in progress. Really good challenge, if you have any advices, I take it.
tthepainter No. I began last saturday. Aprox 3-4 hours every day. I made the airplane exercise last summer, so i got some extra time for the car.
mmrdojo Wow!. Nice & smooth modelling. Love this cartoony style. Waiting to see it finished.
Hey everyone!
So after a couple busy days I managed to get some work done. I looked around the internet and actually managed to quite a lot more references which I'm now actually using more than my wonky blueprints, and I just wanted to ask is this topolgy acceptable? Have more edge loops to place, naturally:

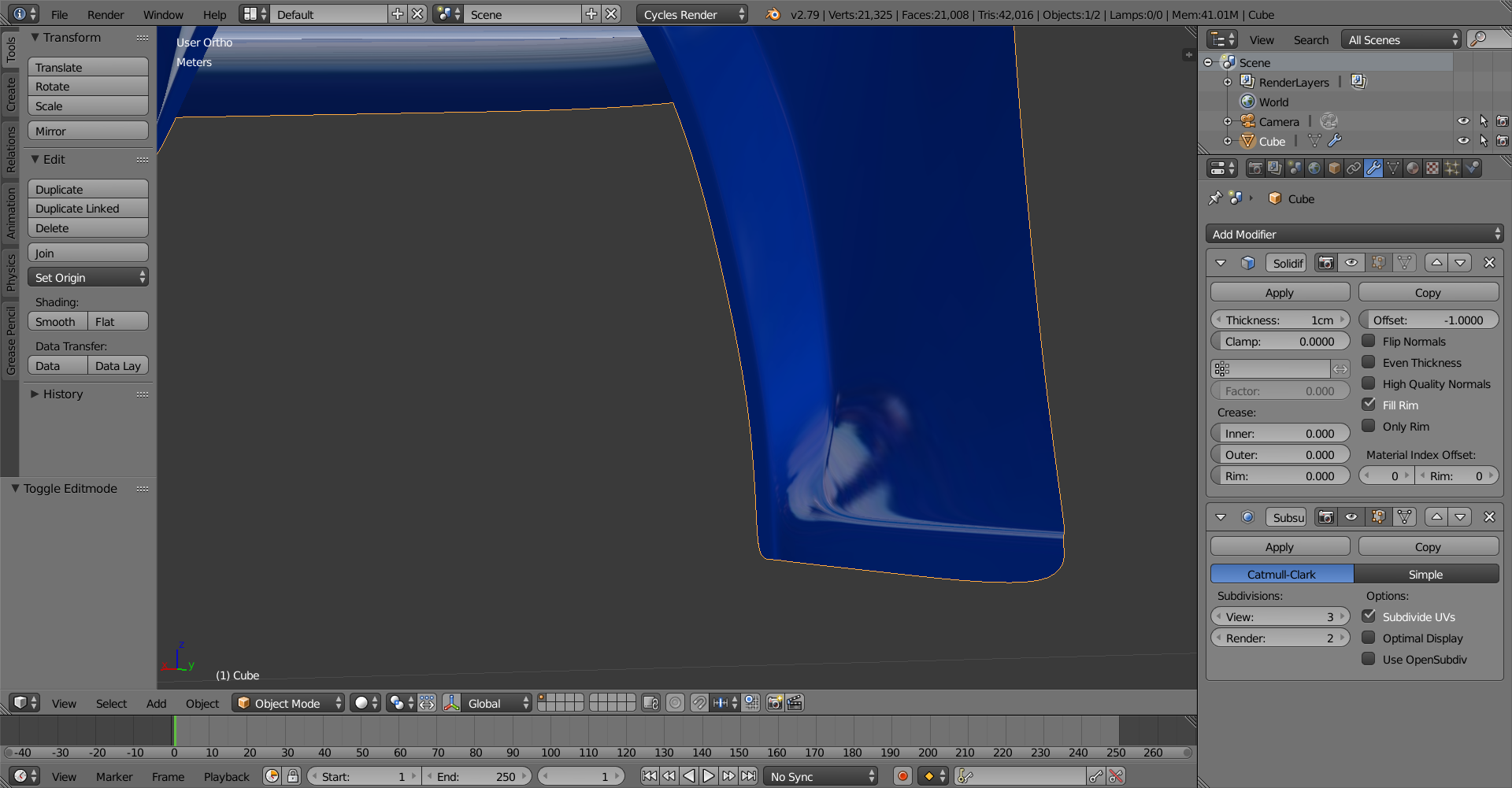

A thing I'm having a problem with (which kind of answers my above question for me) is in one corner the matcap seems hyper distorted and I was wondering if anyone had an idea how to resolve it?
I thank any and all in advance who can help me out, and good luck everyone in the course!
thecabbagedetective One thing you could do to improve your topology is to round out this edge loop.

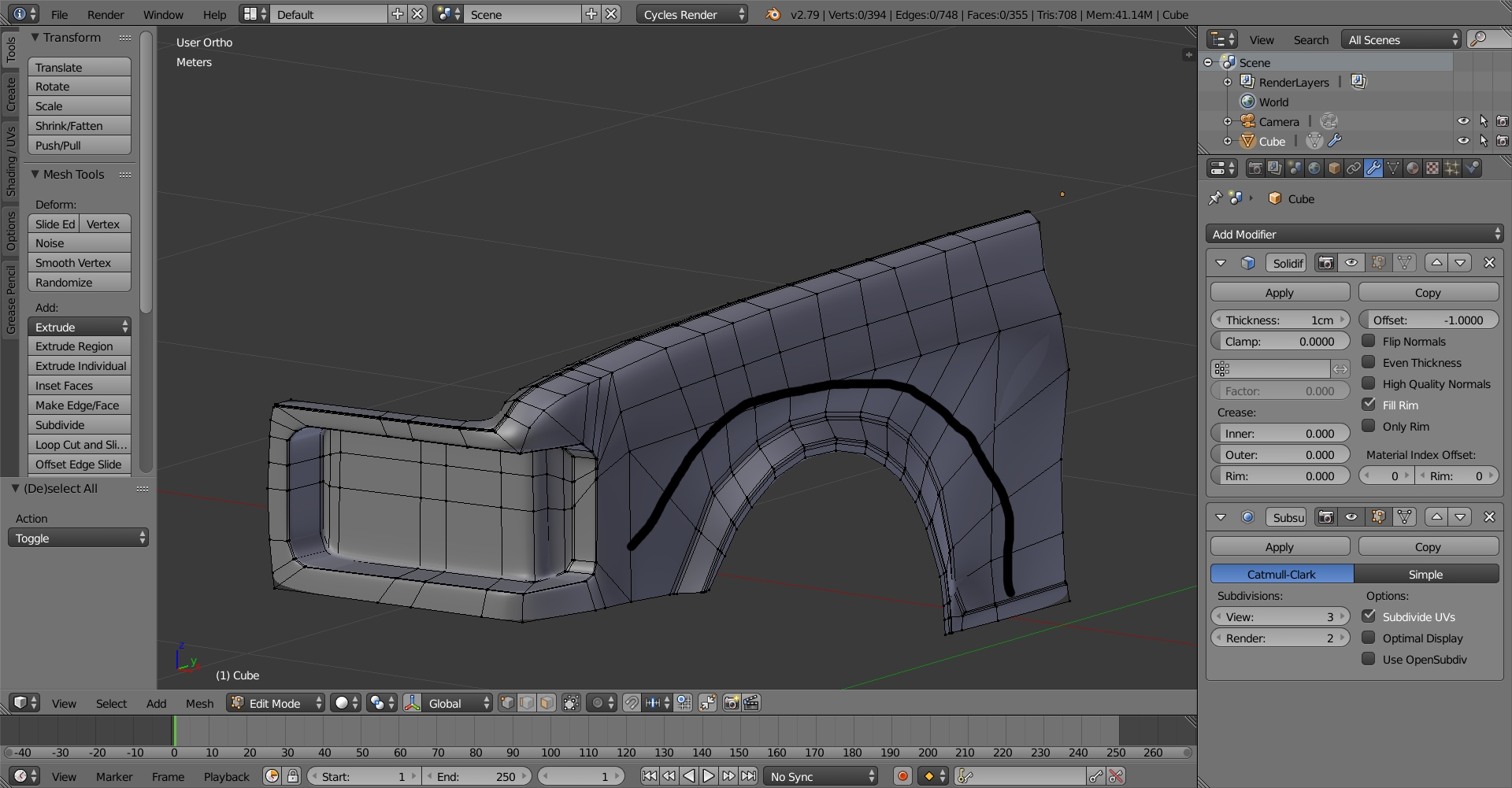

Right now it is a lot too blocky. I don't know about that horrible corner, though.
Wha?! That Probmron went from "coolest vehicle I never knew I wanted to ...cool I probably can't afford it." At least those 2009 models.
@theluthier
@theluthier
Okay, I can't do a video but I did some screenshots maybe that helps.
Background: In this case I seperated out the trunk lid from the body of the car and I wanted a small gap between the 2.

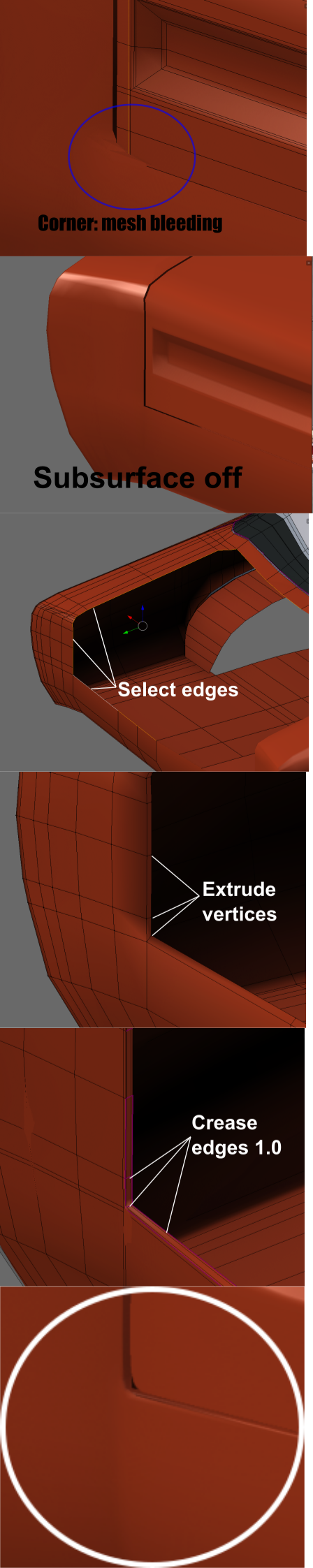

You can see the subsurface from the body bleeding over the trunk surface at the corner.
So I turned the sub on the body off, then extruded the vertices to give it some 'thickness' . Then I selected edges and gave them a crease value of 1.0. It seemed to work
williamatics That will be a better idea . I know almost nothing about shading and whenever i watch a tutorial and try to understand something i get the more confused. :D

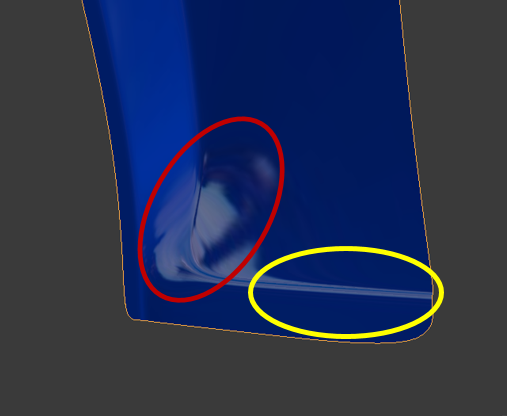

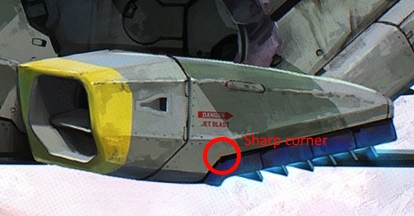

For the distortion you mention, the part that is encircled in yellow is quite usual when you have a sharp feature, it's the purpose of such sharp edges: catching light. The red part is indeed a little bit unusual.

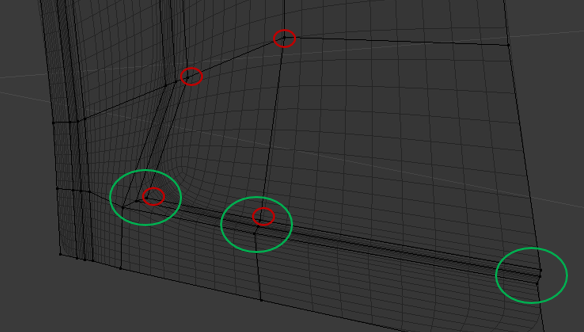

I would aslo look at the distance along the Y-axis for the sets of vertices in the green groups: you have a very dense mesh in a short distance, it can sometime lead to distortion.
Finally, try also with different shiny matcaps, some have low resolution and can be misleading. It can also be due to the orientation of your object: try to rotate it (double R can useful!) to see how the light behave on this area.
Hope that helps!
mmartinlisen Looking good, Martin. I like that you're keeping your mesh density low. Seems like you're working in the sweet spot of minimal/optimal. 👍

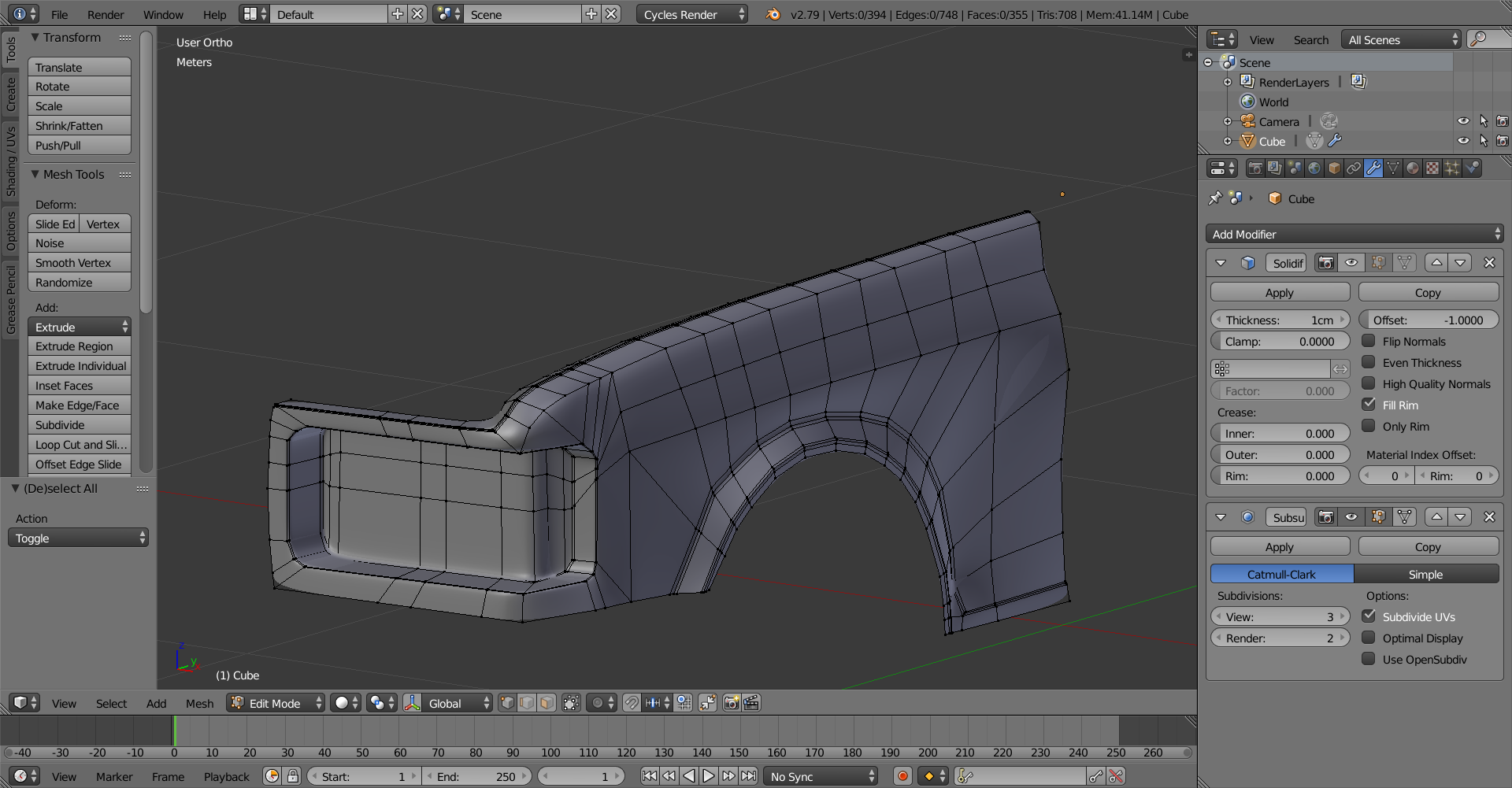

thecabbagedetective I'd say your topology is acceptable but it could be improved. Namely I think the basemesh is more dense than it needs to be in areas. For example the wheel well shape could be achieved with less edge loops:

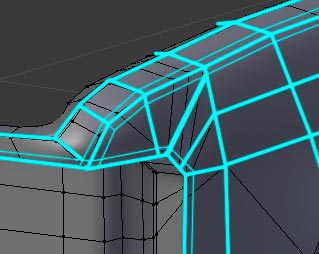

The red denotes removal and the blue denotes new edges/sliding existing edges. Also the northeast corner of the headlight is a bit wonky. Here's my suggestion for topology of that corner:

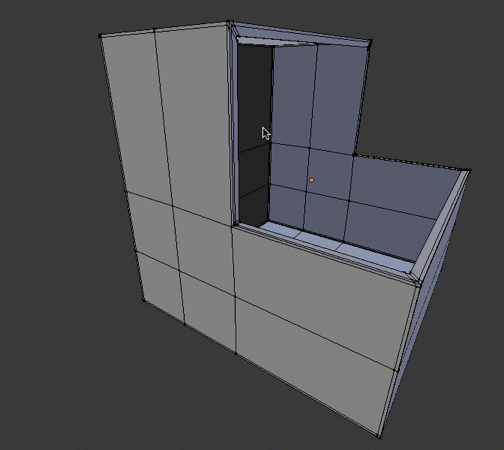

As for those las images of the wheel well corner, the topology doesn't look bad imo. It just looks like the corner verts are out of place/alignment with the surrounding verts.
Hey, passing the last 2 days building parts of an engine based on true measures and blueprint, that was a nice work.

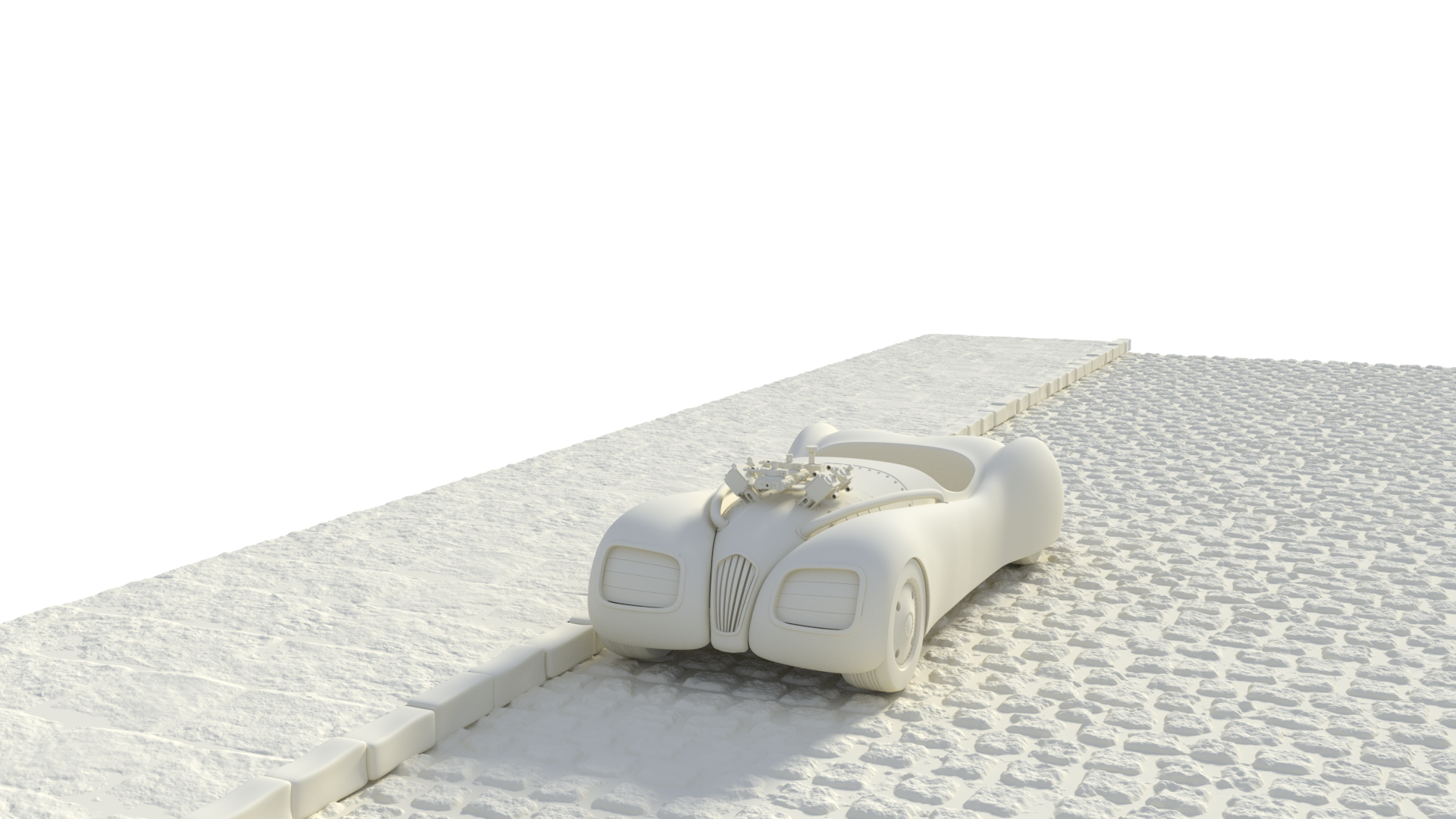

Here is a test on the car (there is still lots of work to do) in a clay render I really like that first look and I hope to end it before sunday :D
@theluthier How would you do that for a curved surface like this? I found it really hard to avoid distortion and get such a nice shape.
dieedi Looks great, but the car should probably be a few times bigger. Great work so far!

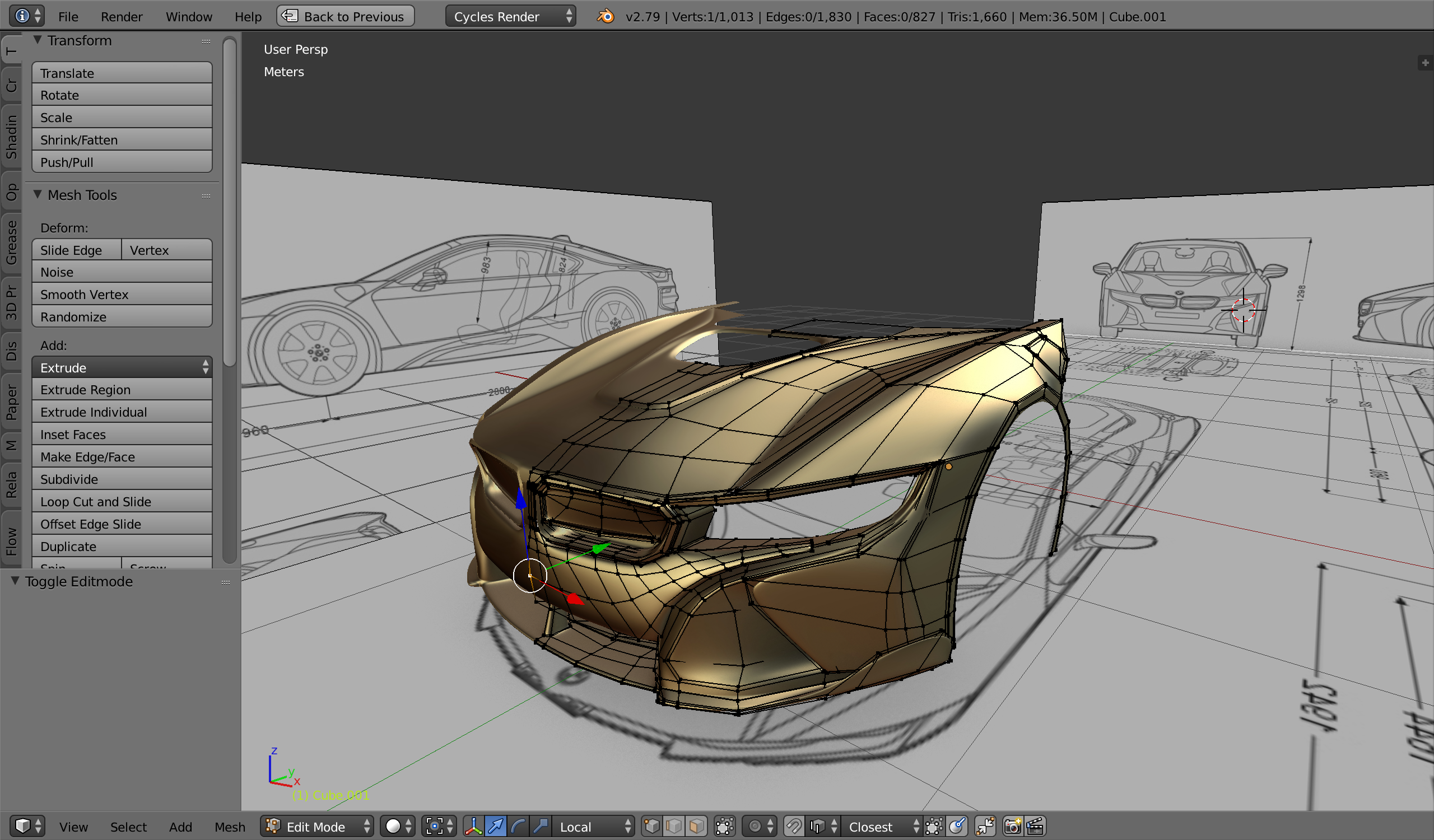

@theluthier Hey kent, I hope u would take a look at This it's the back part of Milen's car it's still in progress but I'm not very satisfied with the mesh, what do u think could be fixed?
Note:I duplicated the mesh twice one with subdivision-modifier applied and the other without it, to give u a better inspection over my topology.
@theluthier tbrbn williamatics Thanks to you all for the assistance, I've managed to apply all of your advice in one way or another. Honestly this is the first time I've ever modeled something with a deadline so I need to get out of the endlessly tweaking mindset I'm used to.
That also ties into what you've been saying about the mesh being too dense, because I don't stop to think about what the subsurf will do and just try to make it smooth from the getgo. After adding some extra details, applying your advice and adding edge loops I'm at about 17,000 verts with subsurf 3 so I don't think I'm doing to bad for my first attempt, onto the bumper next. Thanks to you all again!
