Odd normals
Question Modeling

Question

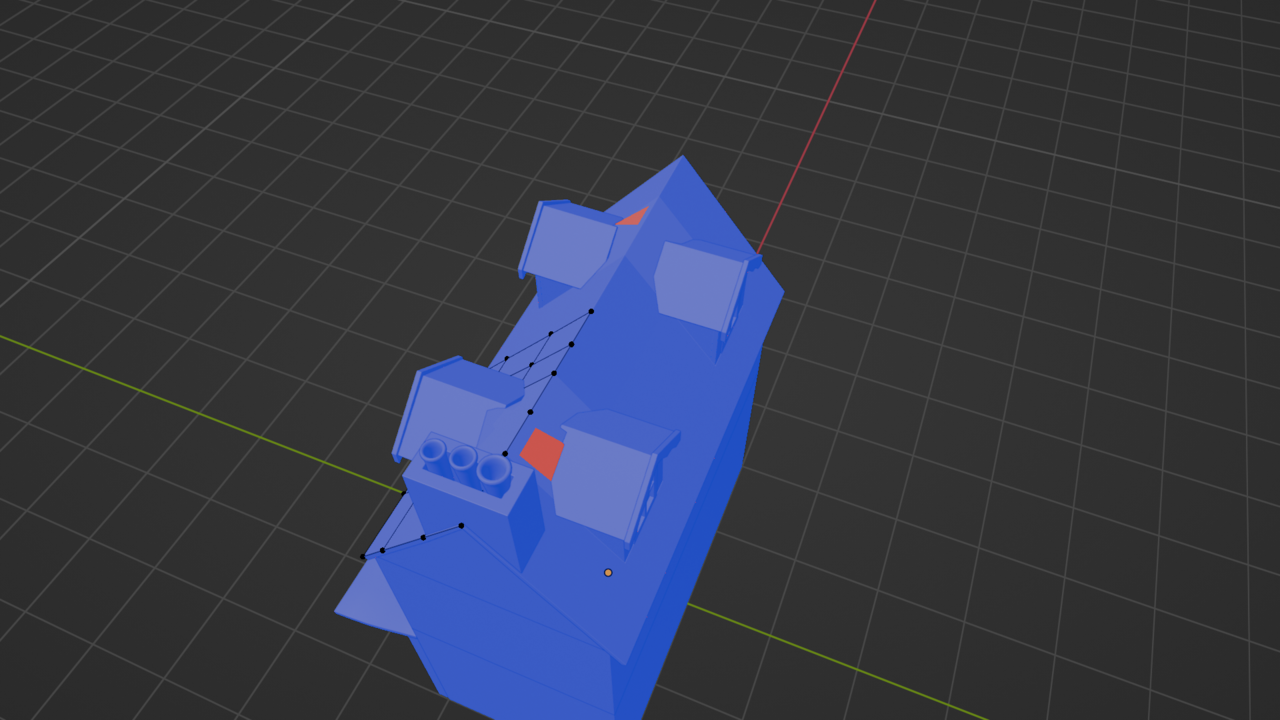

I am working on a Cubicity inspired Irish Pub, and am getting some odd normals from the mirror function. The roof is mirrored on both the x and y axes, and the modeled area does not have a problem...is there a way to fix this?

Answer 1 · 2024-03-12T15:13:36Z

Omar Domenech replied March 12, 2024 3:13pm

That is very strange. Perhaps you have an extra object in the Outliner? Can you upload the file and share the link for us to take a look at it?

Answer 2 · 2024-03-12T15:19:27Z

Martin Bergwerf replied March 12, 2024 3:19pm

Hi Kate KKateMcCSeattle ,

That looks like some Geometry poking through...Select all the Meshes (maybe even Hiding the Roof) and then go into Edit Mode...then try to Select the red parts.

Answer 3 · 2024-03-12T15:34:33Z

K

replied March 12, 2024 3:34pm

How do I upload the file? I cannot select the red faces because they are generated by the mirror modifier. The problemexists even when I have everything but the roof hidden, so I don't think anything is poking through.

Answer 4 · 2024-03-12T15:38:54Z

K

replied March 12, 2024 3:38pm

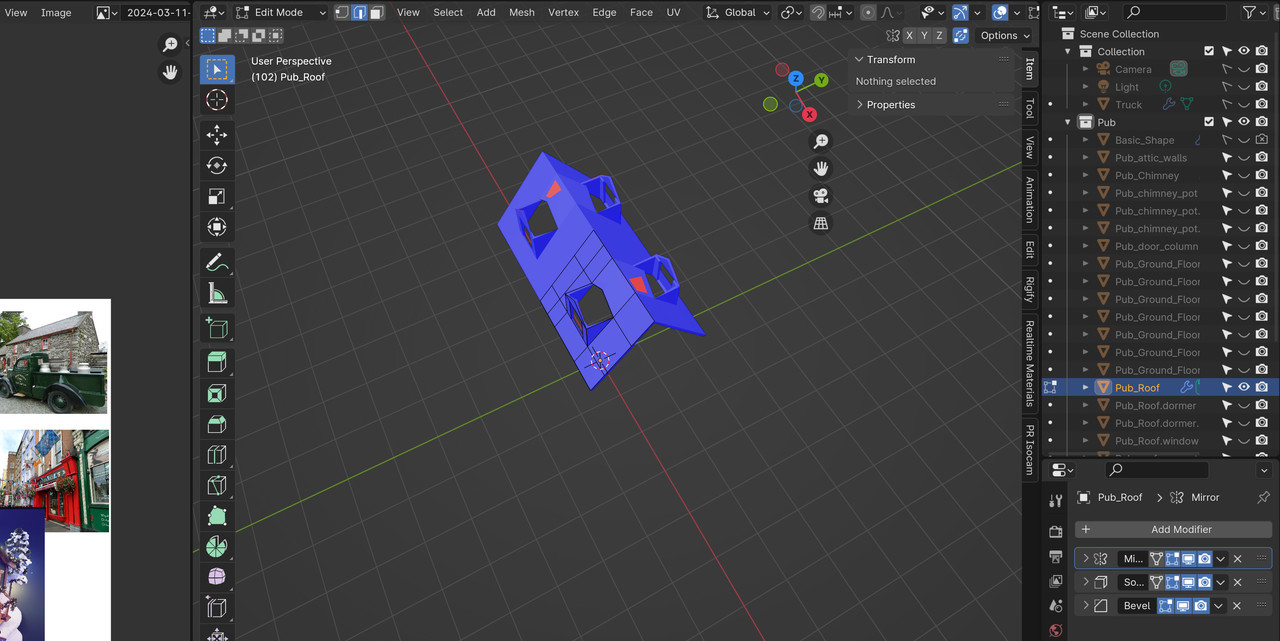

Here is a screen shot showing just the roof:

Answer 5 · 2024-03-12T15:45:50Z

Omar Domenech replied March 12, 2024 3:45pm

You can upload your file to Google Drive or some other hosting service and copy paste the link here.

Answer 6 · 2024-03-12T15:50:43Z

Martin Bergwerf replied March 12, 2024 3:50pm

Solution

I think it might have to do with the Solidify Modifier.

Answer 7 · 2024-03-12T16:08:41Z

K

replied March 12, 2024 4:08pm

Here is the link: https://www.dropbox.com/scl/fi/98mts6lnl07glf2tgsidg/Irish_Pub.blend?rlkey=ru3bygrtszops0lqwq0ijyf5x&dl=0.

Answer 8 · 2024-03-12T16:22:18Z

Martin Bergwerf replied March 12, 2024 4:22pm

Solution

HI Kate,

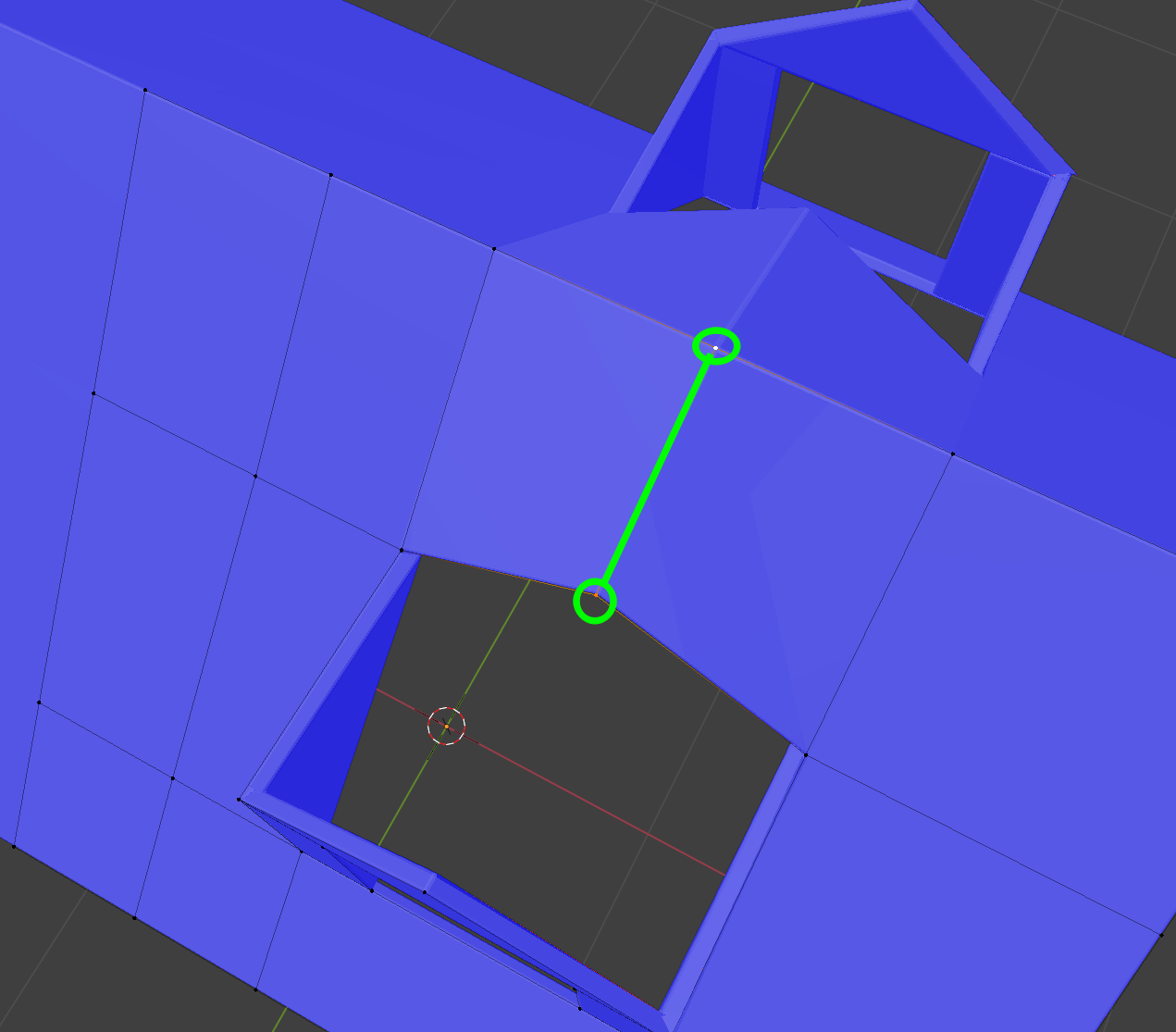

You should connect these two Vertices:

(with J).

Answer 9 · 2024-03-12T16:27:23Z

K

replied March 12, 2024 4:27pm

Thank you!!! connecting the vertices worked.

👍🏻

Answer 10 · 2024-03-12T17:39:27Z

Omar Domenech replied March 12, 2024 5:39pm

Another good old mystery solved, Sherlock.
