What is going on? Inset Issue on making cartridge slot.

Can anyone tell me what is going on? Wacky stuff. I've tried merging the vertices that aren't getting selected, they're the only ones there.

  • Martin Bergwerf replied

    Hi Johnathan,

    I don't really understand your question, but you seem to have double Vertices: Select everything (with 'A') and then M > Merge > By Distance (make sure the Threshold isn't too large (or too small)). Followed by (with everything still Selected)  SHIFT+N, to fix possible inconsistent Normals.

    Please ask again, if that doesn't fix your issue.

    1 love
  • Johnathan Tyler(3DTitties) replied

    That's my issue, I've already merged vertices and this is still going on, and for some reason at the beginning one side worked but then stopped working correctly. You could see if it happens for you if you'd like. https://drive.google.com/file/d/1XMkrKuo1469qGju5fK98tHC0ZodOu31N/view?usp=sharing

  • Martin Bergwerf replied
    Solution

    Hi Jonathan,

    You have a few problems. First let's do some clean up: you need to fix the overlapping Faces (a leftover from your earlier Inset with the wrong Selection, I guess):

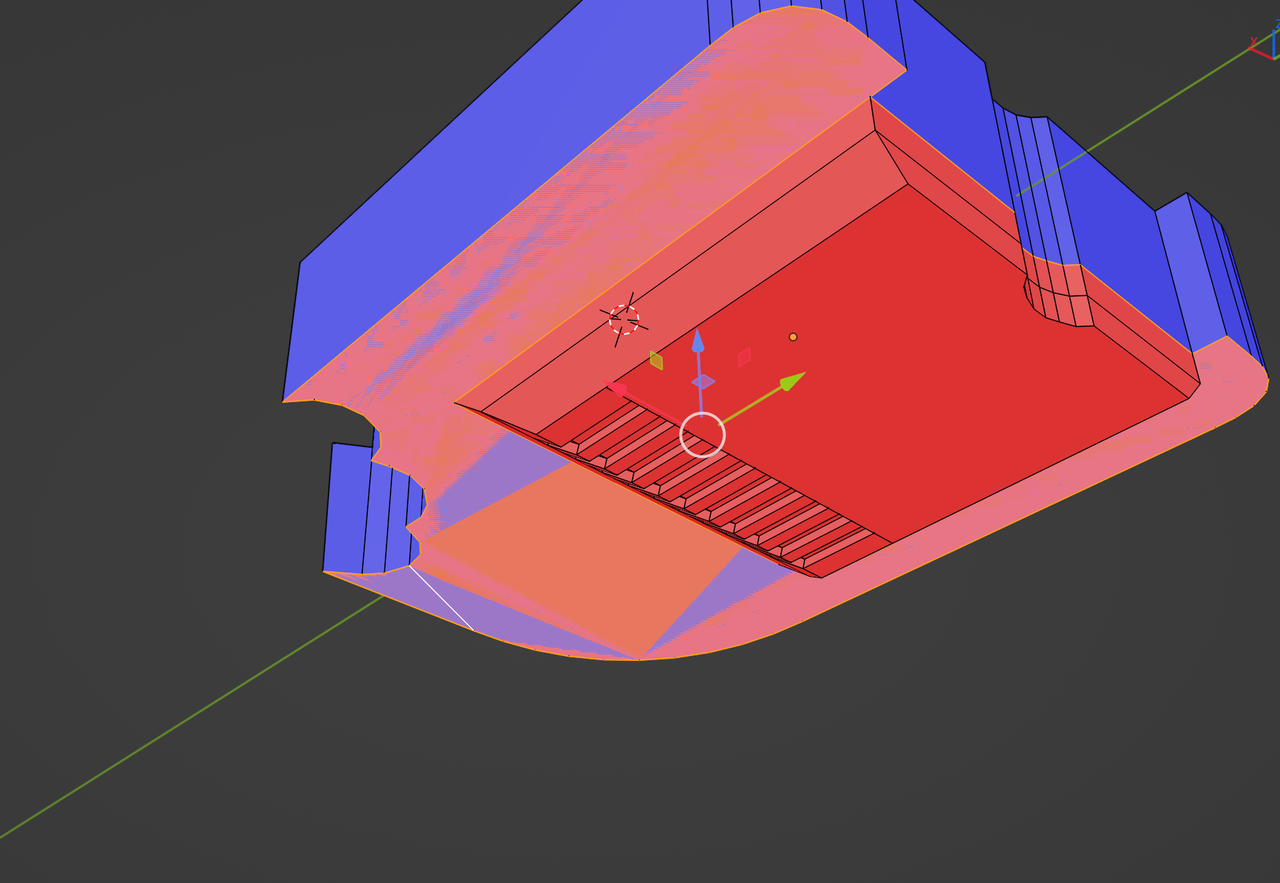

    Inset Problem.png

    That is one large Face and two smaller ones. get rid of the smaller ones..if it is difficult to only Select the two smaller ones, just Delete all three and the re-fill the bottom with one Face.

    Make sure, that the large Face is not like this:

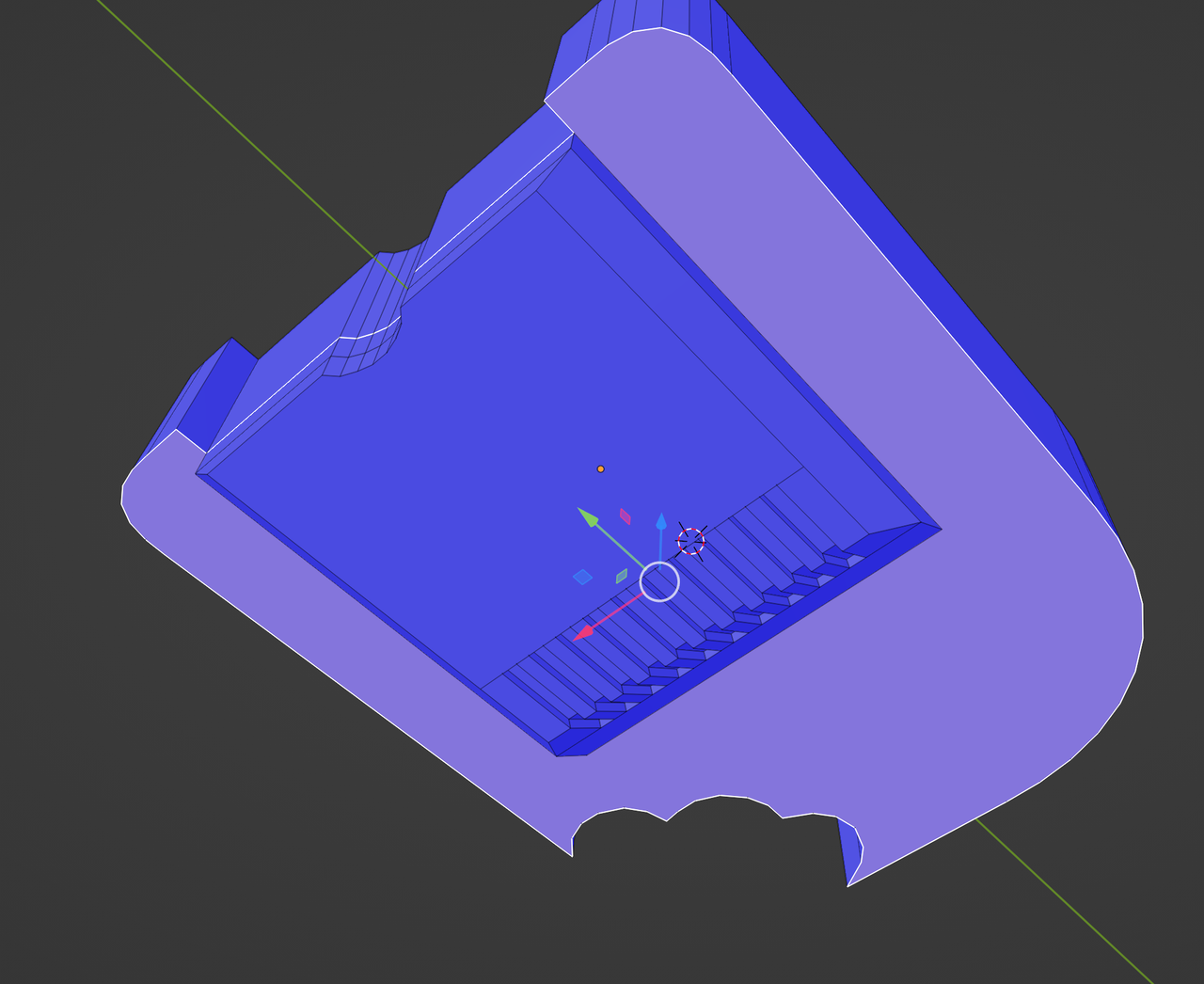

    Inset Problem_01.png

    But Fill it with this Selection:

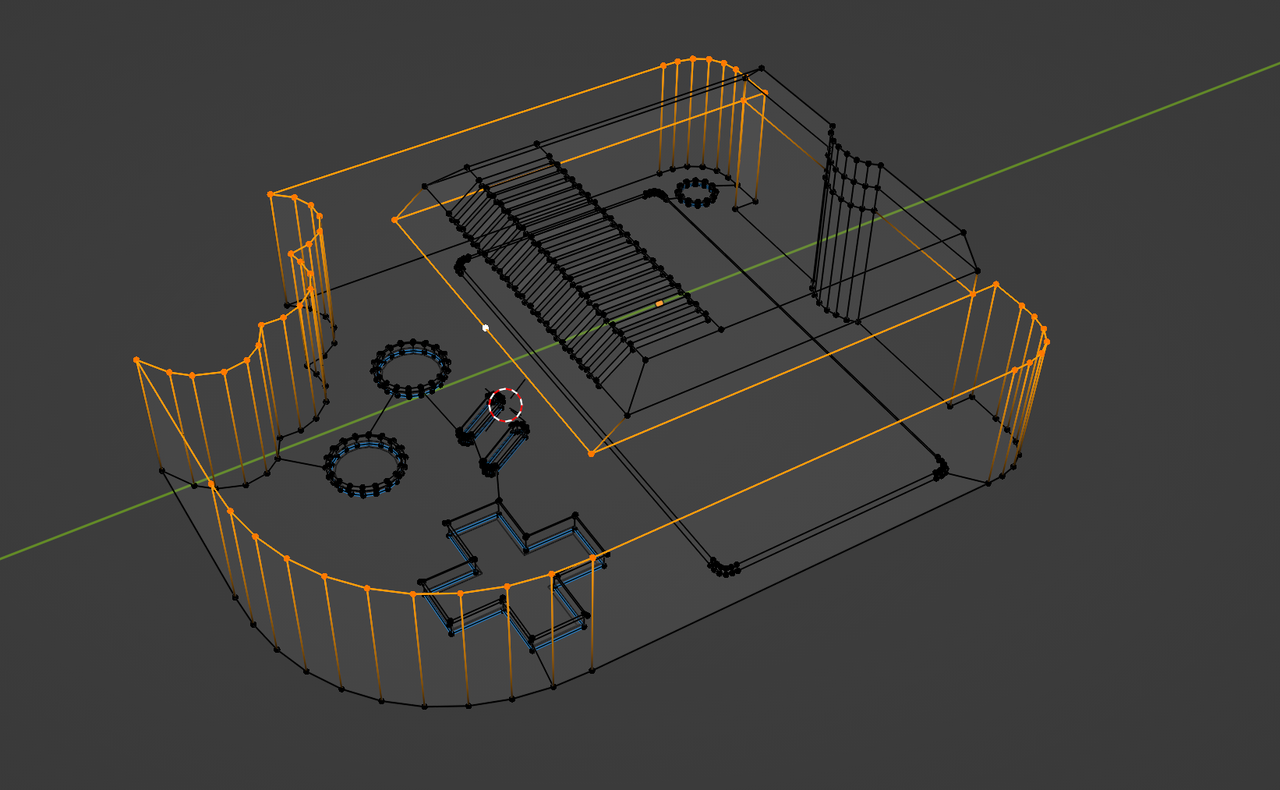

    Inset Problem_02.png

    Then Merge By Distance and lastly fix the Normals.

    2 loves
  • Omar Domenech replied

    And my favorite thing right now, you can use 3D Print Toolbox addon which can make mesh checks for you, super useful.

    1 love
  • Martin Bergwerf replied

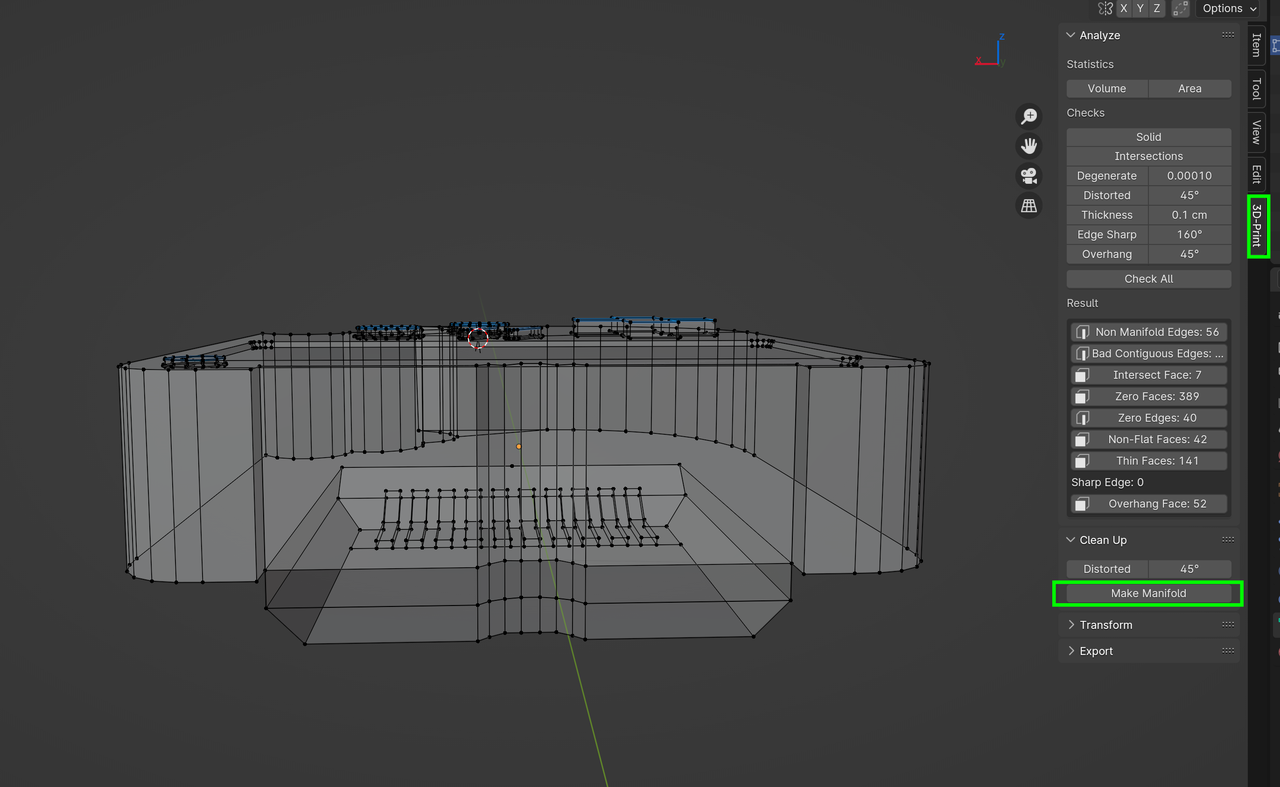

    If you use the 3D Print Toolbox Addon, you can simple press Make Manifold and it will fix your Mesh:


    But I think it's a good idea, to try and solve the problems yourself first...

    • True
    1 love
  • Johnathan Tyler(3DTitties) replied

    Thank you guys, I didn't even consider overlapping faces as an issue. I'll def try fixing it myself but also look into the 3D print toolbox.

    1 love
  • Johnathan Tyler(3DTitties) replied
    Fixed the faces causing this issue and my inset issue. Then, I ran into more and used the 3D toolbox which modified over 40 faces and edges, and some vertices too. I am not sure what I'm doing to make so many duplicates but I would be super frustrated trying to learn how to solve it all now so this 3d tool kit is super useful.
    1 love
  • Martin Bergwerf replied

    But be careful Johnathan,

    It doesn't always do what you want. You'll have some requirements for 3D Printing, that you do not need for your model.

    For instance, your model doesn't always need to be manifold...a Plane (Primitive) is non-manifold and running the Make Manifold command, will make the Geometry disappear....sometimes it 'fixes' too much and sometimes not enough.

    In your case it seems to have done really well, but it's not always a simple one-click solution for all your Mesh problems.

    1 love
  • Omar Domenech replied

    Yes as Martin says, I would use it to search for mesh problems, just so it highlights them in case I made a mistake so I myself can go in and fix them. But the fixing it by itself button is kinda tricky and dangerous.

    1 love
