Cannot Bevel top section of device

Hi there

I cannot seem to bevel the top part of the device. Part of the bevel seemed to be missing.

Video 1

Video 2

Please help. Thanks



  • Martin Bergwerf replied

    Hi Rimi ,

    Select the whole Mesh and then: M > Merge > by Distance.

    Followed by SHIFT+N.

    That will probably fix it.

    If not, it would be easiest if you could post a link to your .blend file (via Dropbox for instance).

    1 love
  • Rimi replied

    Hi Martin

    It worked, thank you very much.

    Just a quick question, what is the purpose of shift + N?

    Thank you once again!

  • Martin Bergwerf replied

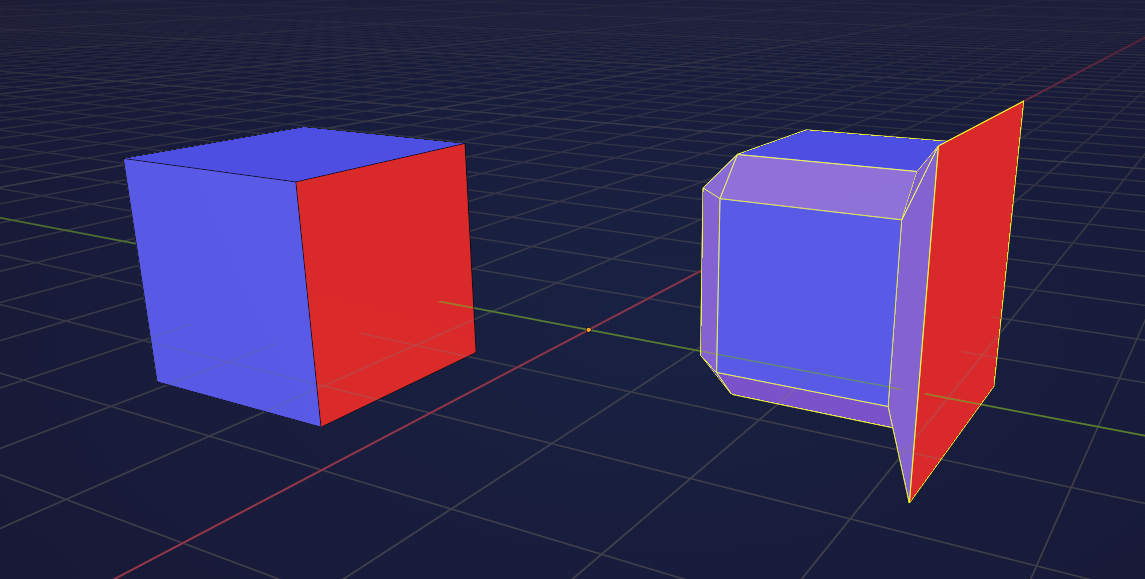

    Each Face has 2 sides, a front and a back. when a model has Faces that are not 'aligned', I mean a back Face next to a front Face, weird things might happen (not only when Beveling):


    In CG we often speak of Normals when discussing the direction of Faces. SHIFT+N makes those Normals consistent.

    1 love
  • Omar Domenech replied

    Shift + N is the hotkey for the "Recalculate Normals" operation. You can also find it under Mesh -> Normals where you'll find some other helpful options.

    1 love
