So I have found myself needing to fix some topology issues more and more on my loader arm project for the Heavy Equipment stream and wanted to use Python to make a shortcut that will activate the transform on a selected vert/edge/face and lock movement in x but allow y and z.
Hitting G then Shift + x over and over has gotten really tiresome and I was wondering if there is a simple python line I could assign to a keyboard shortcut or one of my extra mouse buttons?
I tried looking over in the console but the code does not populate until after I complete the transform move and if I use that it just moves the object for me. I want the transform to be active so I can decide where it goes if that makes sense.

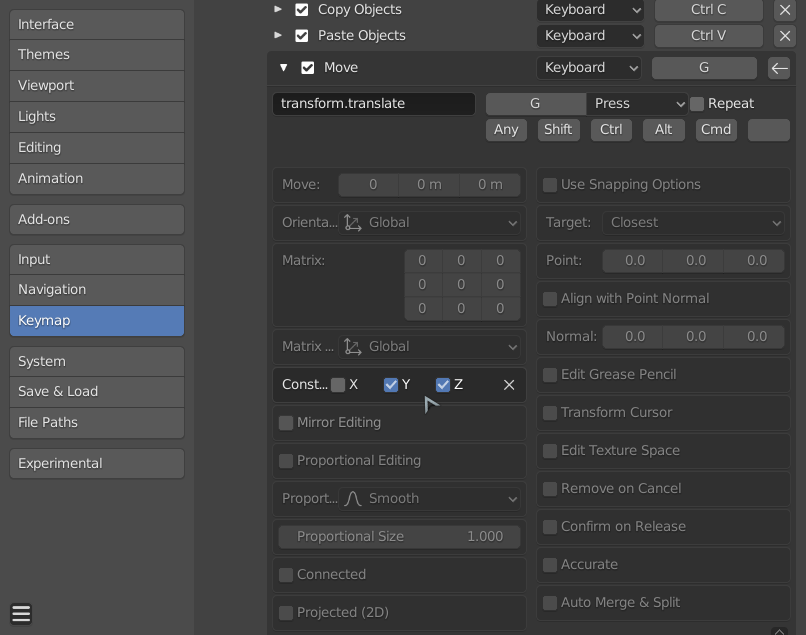

Hi Shawn, what you could do is go to Preferences > Keymap > 3D View > 3D View (Global) and make an extra Move shortcut like so:
(at the bottom where it says: +Add New)
Don't use G for this one of course, but any free key could do the trick.
I do not know how to do this with Python, but I dare say that it will be a lot more work to make a new Operator (Sybren Stüvel made an Operator episode in his 'Scripting for Artists' series).
That's perfect spikeyxxx I got some books on Python and the code isn't terrible to follow but I don't know if enough to be trying things out on my own.
I was hoping to stretch my python wings just a smidge. And thought this would be a great place to ask.
This is a perfect solution though. Thanks!

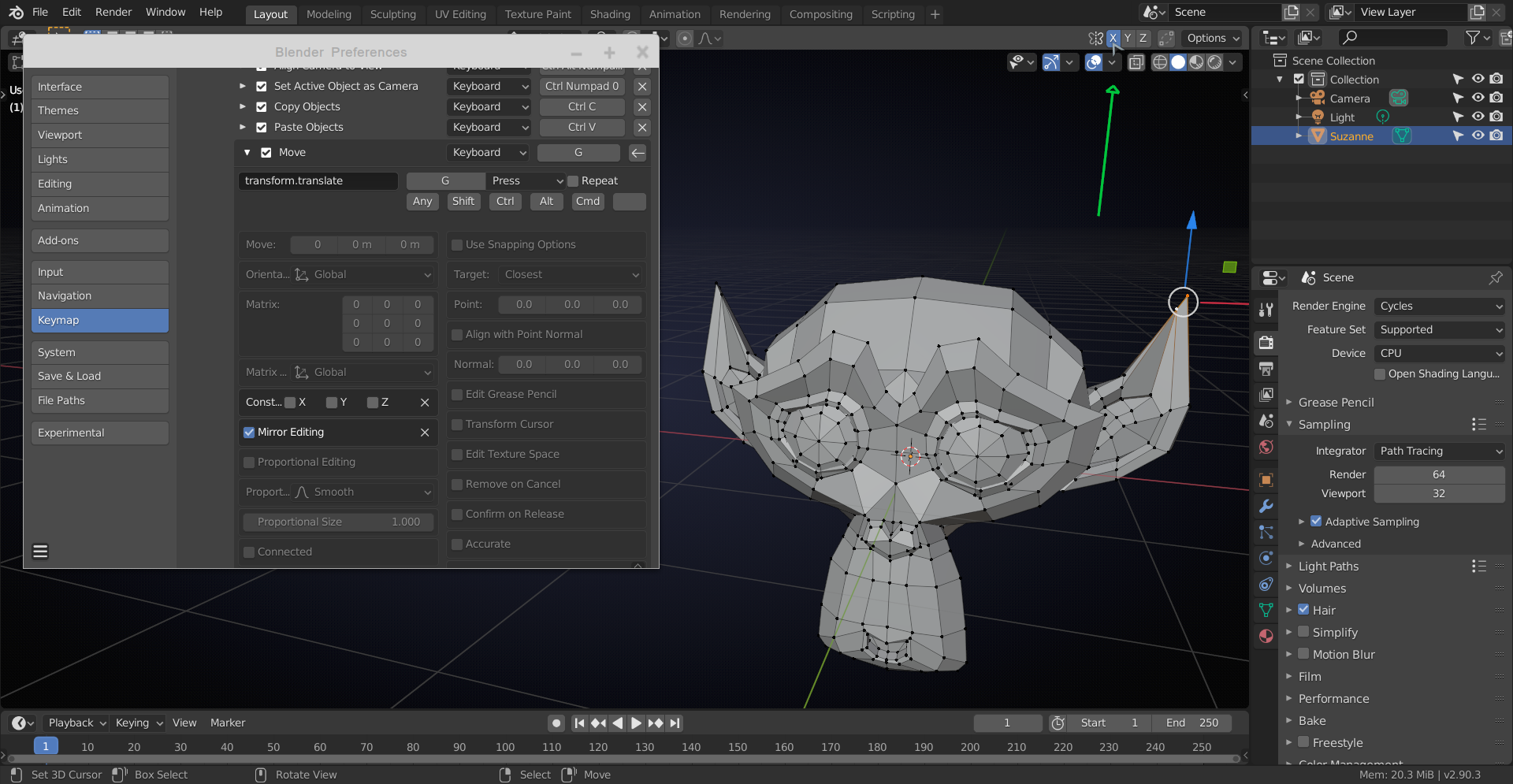

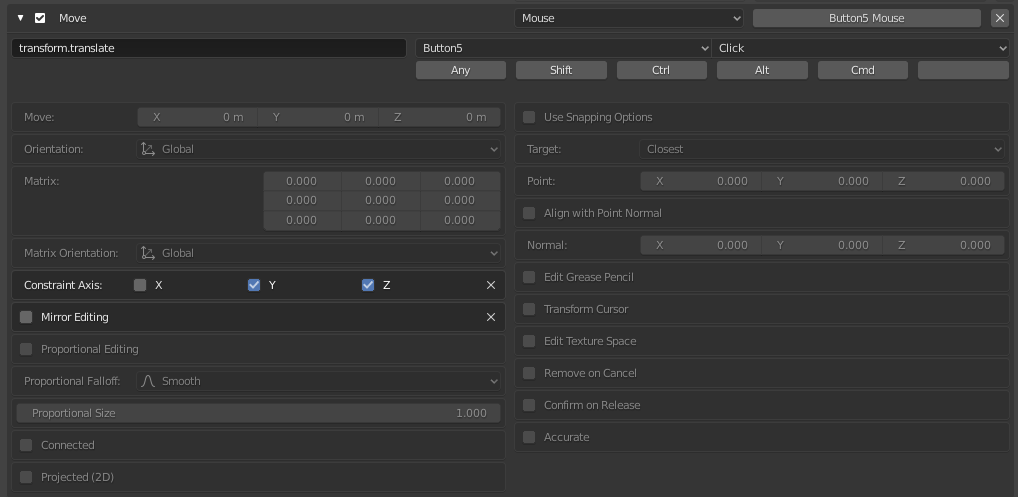

Here's my solution based on your feedback. Do you know what mirror editing checkbox does? Is that same as X-mirror?
Didn't know about this Mirror Editing, but when checked and having one or more axes enabled it moves the mirrored vertices (when there are any) together with the selected ones:
It's like mirror option in Sculpting. It appears to also do this when using the Move Gizmo (when the Mirror Editing checkbox is un-checked), but not when using the G hotkey...
Hmmmmmmm........Yeah I noticed when I push some of those check boxes that it overrides the Viewport options a little more than I realized. I ended up unchecking all of them in the Keymaps except the constrain to YZ.
Thanks spikeyxxx
