Crosshatch - Texture Scale by Camera Distance

Hi,

I'm working on a crosshatch shader which should have equally thick lines independent from the perspective (see upper image). But my solution is kind of hacky - is there an easy or better way to solve or calculate this (maybe even with camera-node)?

Thanks in advance.

Hacky with RGB-Curve:

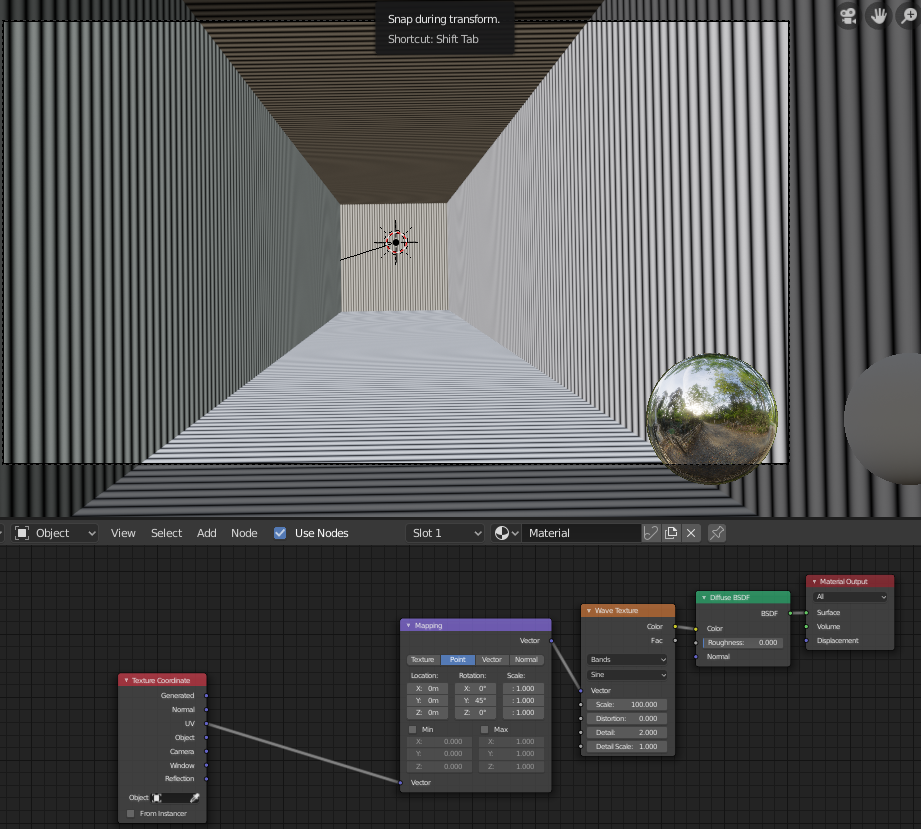

Normal with Perspective:

  • spikeyxxx replied

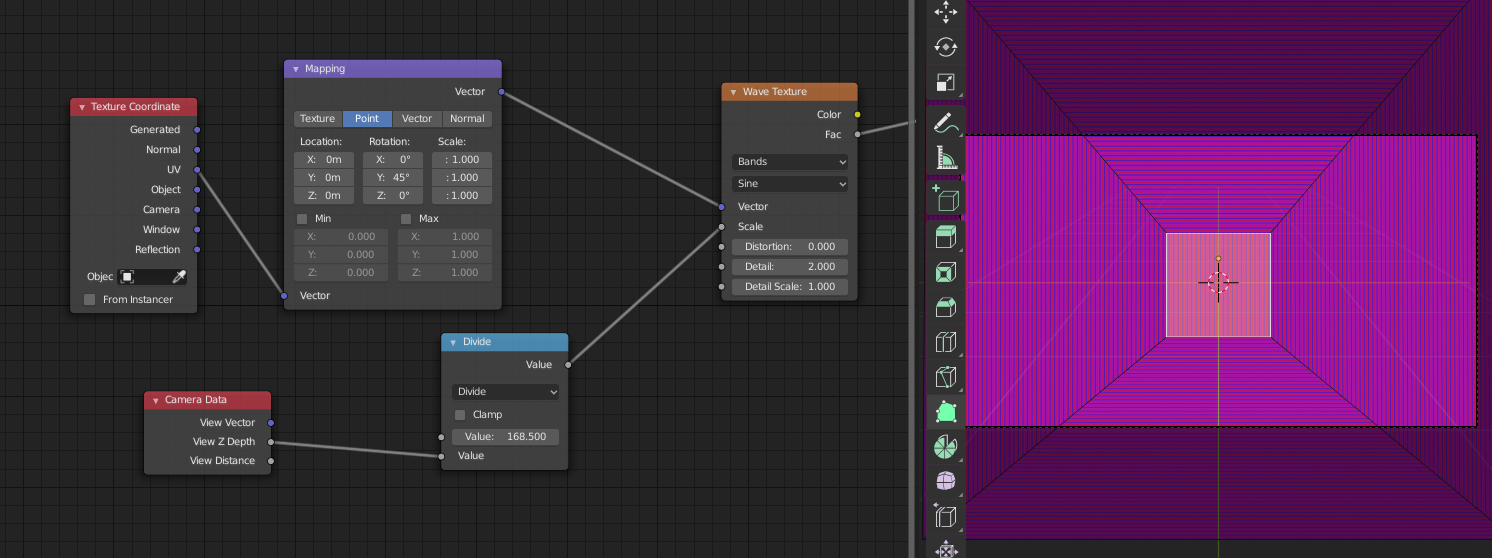

    Hi dhock, nice solution, but as I understand, you want something more exact. How about this node setup?
