Similar to the first question: what about cycles?

Question

I was wondering if it was possible to render Melvin in cycles. As far as I could tell, the texture only shows up in the blender internal engine. Is there any way to transfer this to cycles?

Answer 1 · 2019-04-02T02:24:07Z

Wayne Dixon replied April 2, 2019 2:24am

I thought it was cycles, I know all the Melvin animations I have done were rendered in cycles, but maybe the DL in the course is the older rig.

Maybe I can ask @theluthier

Answer 2 · 2019-04-02T13:12:58Z

Kent Trammell replied April 2, 2019 1:12pm

ssambear You're right that the material is a Blender Internal material in the file which isn't directly compatible with Cycles. But to re-create the material for Cycles is very easy.

Switch your render engine to Cycles
Go to the material panel and press "Use Nodes"

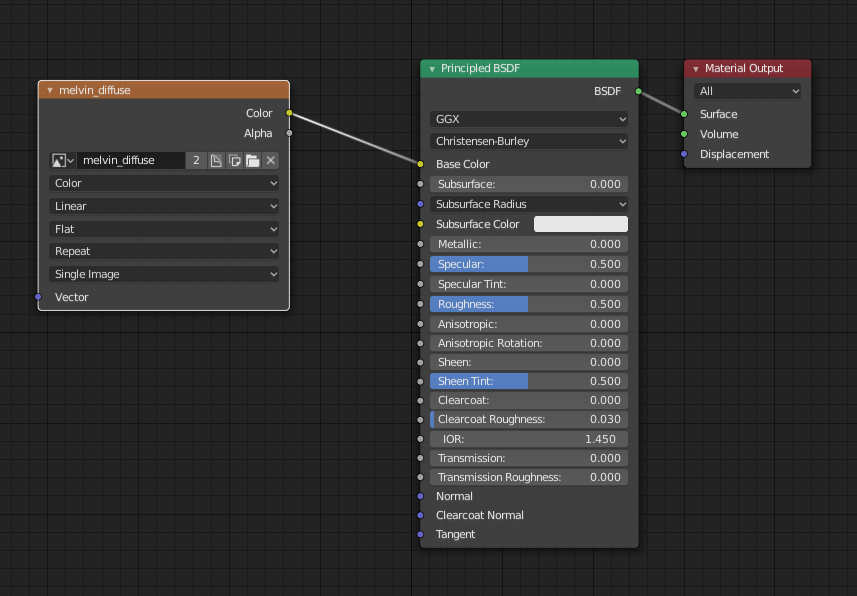

In the node editor you should have a principled BSDF node plugged into a Material Output Node.
Add an image texture node and select the "melvin_diffuse" image.
Plug the color output into the base color socket of the Principled BSDF

Answer 3 · 2019-04-02T13:23:53Z

s

replied April 2, 2019 1:23pm

Thanks so much! This worked perfectly.

Answer 4 · 2019-04-02T21:34:42Z

Wayne Dixon replied April 2, 2019 9:34pm

Isn't Kent a genius?

I love him, you love him, we all love him!

Thanks Kent

Answer 5 · 2021-02-26T20:05:21Z

c

replied February 26, 2021 8:05pm

Thanks! This helped me as well
