super weird results on ambient occlusion bake - displace is fine though - help!

posted to: Painting Skin

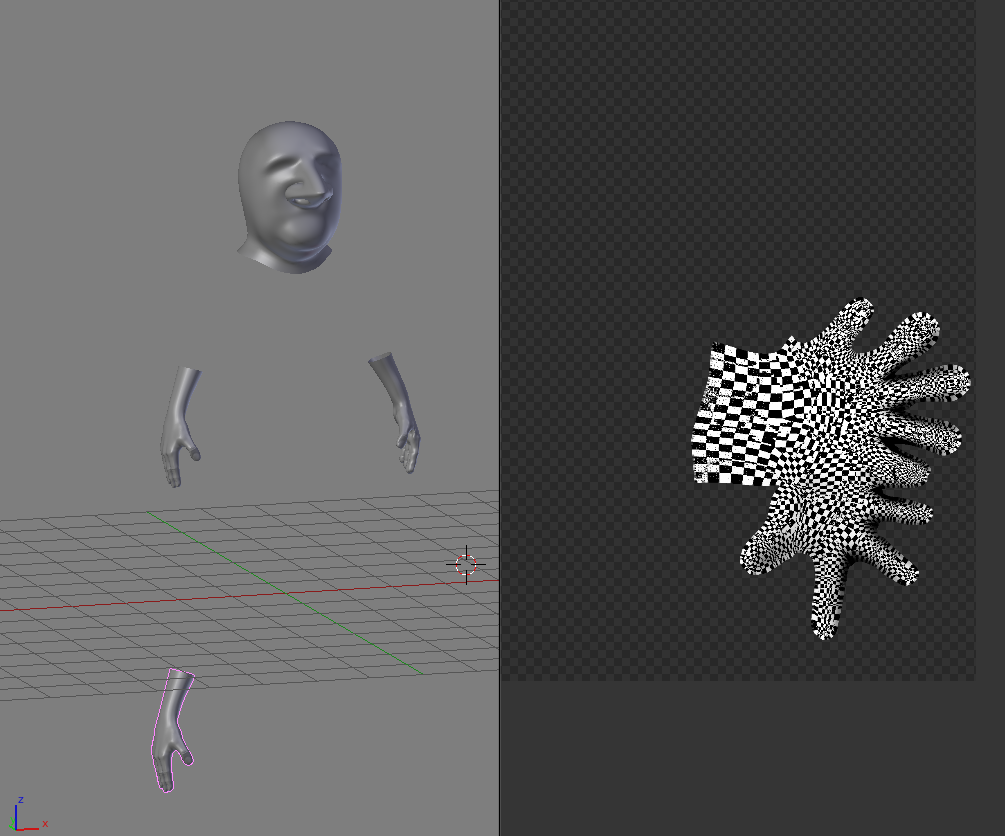

Getting these super weird results on my ambient occlusion bake - my displace bake is fine, I don't know what to try or do next...?

  • Kent Trammell replied

    Are your hands mirrored? If so, the bake is calculating each hand separately while trying to project the data on to the same UV island. So you're getting both sets of bake data fighting itself. Delete one hand (or disable the mirror modifier) and try baking again.

    Once you get a clean bake, you can simple re-mirror the hand geo.

  • Cortnie Johnson(cortniesierra) replied

    I tried that- I don't see any mirror modifier and when I go to assign just a single hand to the UV layout both still show up on the UV/Image editor even though only one is selected.

  • Kent Trammell replied

    Can you give me a link for downloading your .blend so I can take a closer look at your scene/setup?

  • Cortnie Johnson(cortniesierra) replied

    Yes... I'm still very new to Blender how do I do that? Sorry about this.


  • Kent Trammell replied

    No worries, it's not very intuitive. You need to host your file on the internet somewhere, like dropbox.com for example. Most people have an account there by now, but there's box.com, google drive, etc that serve the same purpose. Once you upload your .blend file there, you can copy the link to download that file and paste it here.

  • Kent Trammell replied

    ccortniesierra Thanks for the file! It stumps me a bit why the result is happening. The only way I got a successful bake was after disabling "Bake from Multi-res" in the bake settings. If you disable that and set your multires modifier's preview level to the highest (3 in this case) you'll get a clean bake from the highest resolution of detail.

  • Cortnie Johnson(cortniesierra) replied

    Thank you so much. This worked!
