Musgrave texture inconsistent across model

Question

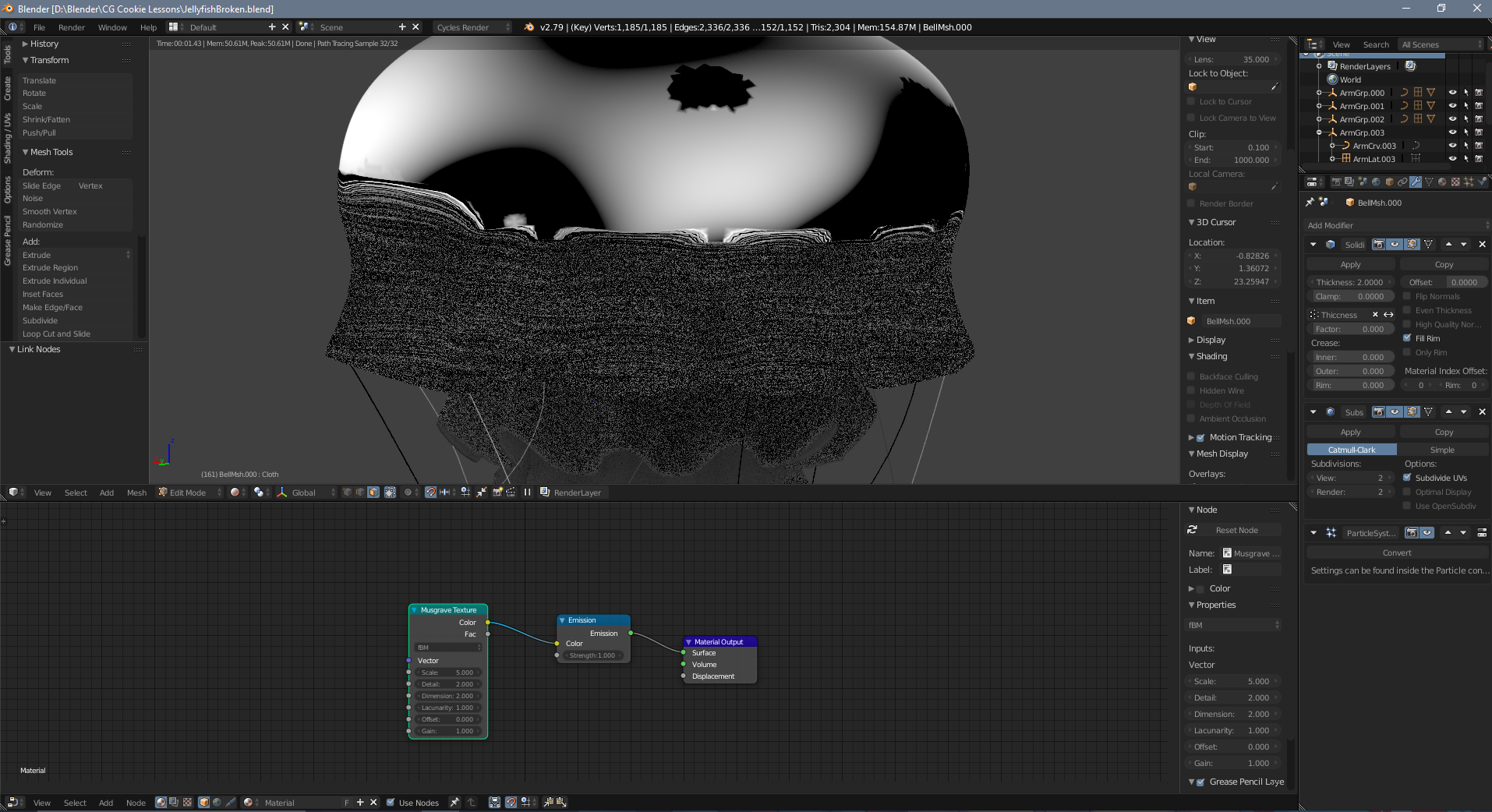

I'm having a bit of trouble with the Musgrave Texture node; The lower half of my jellyfish domes look like white noise. Blender version is 2.79

Answer 1 · 2018-02-05T14:04:28Z

Kent Trammell replied February 5, 2018 2:04pm

I've never seen that before...Can you post a download link to your .blend file so I can take a closer look?

Answer 2 · 2018-02-05T21:52:00Z

c

replied February 5, 2018 9:52pm

Here's my .blend file
https://drive.google.com/open?id=1spTug0w6_LtSBI2GCeOjgjmsSO_ydDvz

Answer 3 · 2018-02-07T00:31:28Z

c

replied February 7, 2018 12:31am

I found a work-around in the mean time:
Texture Coordinate node with the Normal setting plugged into the Musgrave Texture's vector slot, then dropping the scale number till the texture matches the video.

Answer 4 · 2018-02-07T16:01:01Z

Kent Trammell replied February 7, 2018 4:01pm

A couple solutions about this. Start by selecting your object, then:

First try applying your scale with CTRL + A and choosing "Scale". Wonky scale values can cause funky behavior in many situations including textures and rigging. As a general rule, when I get funky behavior with an object, one of my first troubleshooting options is applying transforms (scale first, then rotation, then translation - or all 3 at once depending on the situation). You can always undo it if it's not the fix.

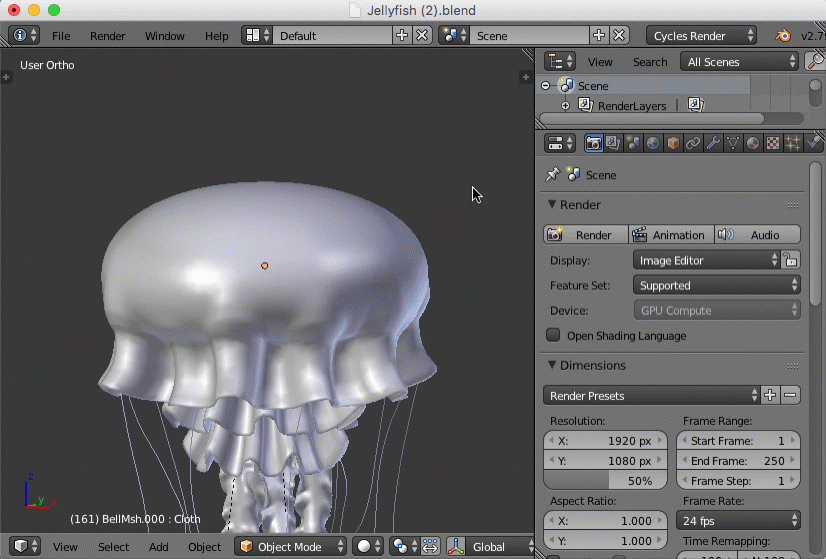

Disable Auto Texture Space and resetting texture space size values to 1. Similar principle to applying scale transforms (from X,X,X to 1,1,1) but for an object's "texture space"

Answer 5 · 2018-02-07T23:09:21Z

c

replied February 7, 2018 11:09pm

Thanks! Applying transform fixes the issue for me.
