vertex snapping

When I try to select all the vertices and use Snap with vertex snapping enabled, then choose the X axis, the selected vertex behaves unpredictably when I hover over the target vertex I want to snap to. Could you please help me with this?


1 love
Reply
  • vinay gowda(vinay21) replied
    You can find this at the 11:30 mark in the 'Modeling a Sci-fi Crate' tutorial.
    1 love
  • Martin Bergwerf replied

    Hi Vinay,

    Have a look at what you are Snapping with (Snap Base).

    1 love
  • Martin Bergwerf replied

    Okay, at that 11:30 mark, I don't know exactly what is not working for you..(but I must admit, that it took me a while to get used to how Snapping works in Blender)

    2 loves
  • vinay gowda(vinay21) replied
    Thanks for the quick response, Martin! 😊 I've attached the image—could you please take a look at it?
    1 love
  • vinay gowda(vinay21) replied

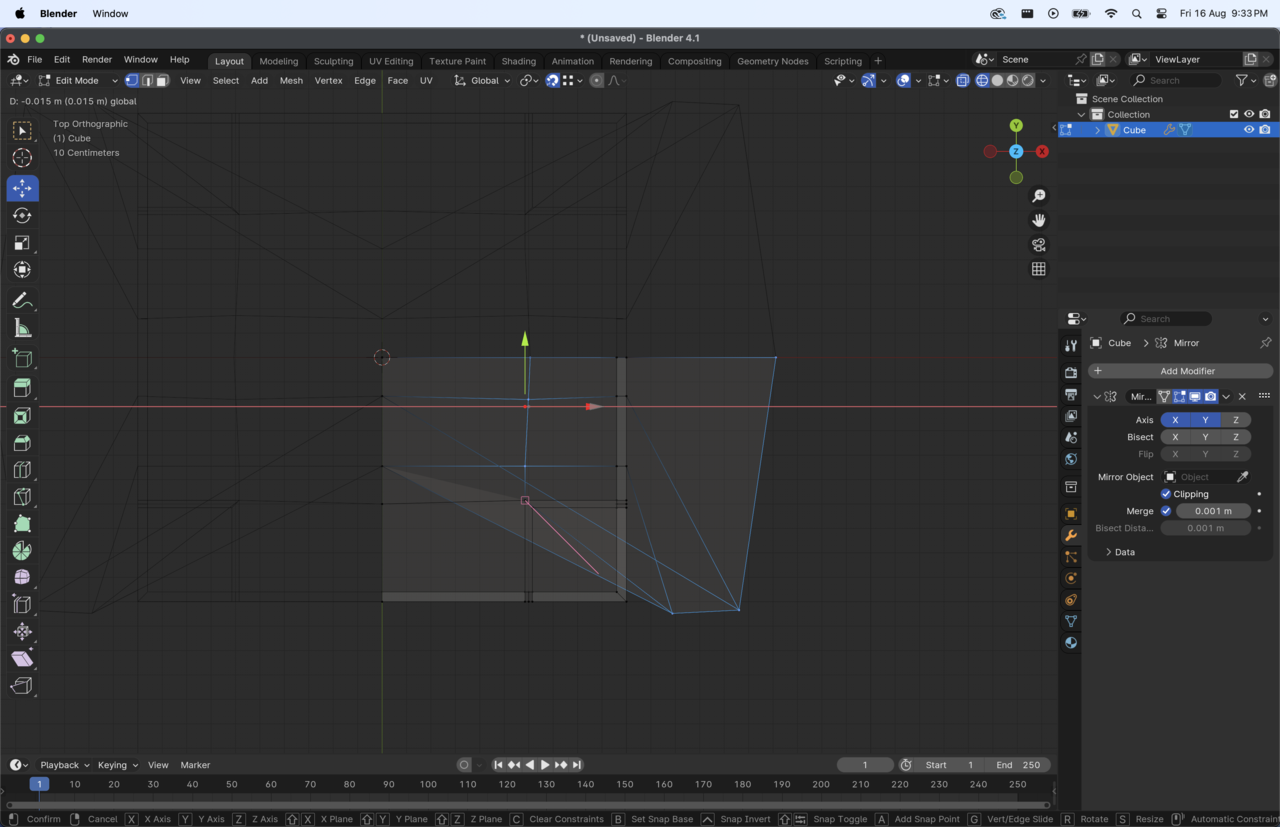

    16 at 9.33.48 PM.png

    1 love
  • Adrian Bellworthy replied

    What do you mean by "select all the vertices"?
    You only want to select the vertices you wan to move, not the vertex you want to snap to and certainly not all vertices.

    With snapping enabled, vertex selected in the snap target options and the correct vertices selected, left click and hold on the red X axis on the gizmo and then move the mouse over the vertex you want to snap to (align with).
    A square indicator should appear over the 'snap to' vertex and the selection snap to the correct position.

    1 love
  • Adrian Bellworthy replied

    Ok that looks like you may have more vertices selected than just the ones you want to align.

    1 love
  • Adrian Bellworthy replied

    Snapping is weird and takes a little getting used to, but it's like riding a bike, we all fall off at first but once you know how it is easy.

    2 loves
  • vinay gowda(vinay21) replied

    Thanks Adrian

    1 love
  • Omar Domenech replied

    Also remember before the Fundamentals there is the Blender Basics, it is the course JL always refers to as "what we saw in the basics". It is the very first step to take. So you may want to start with this course before you tackle the Fundamentals. Linking up:

    https://cgcookie.com/courses/blender-basics-an-introduction-to-blender-4-x


    3 loves
  • Martin Bergwerf replied

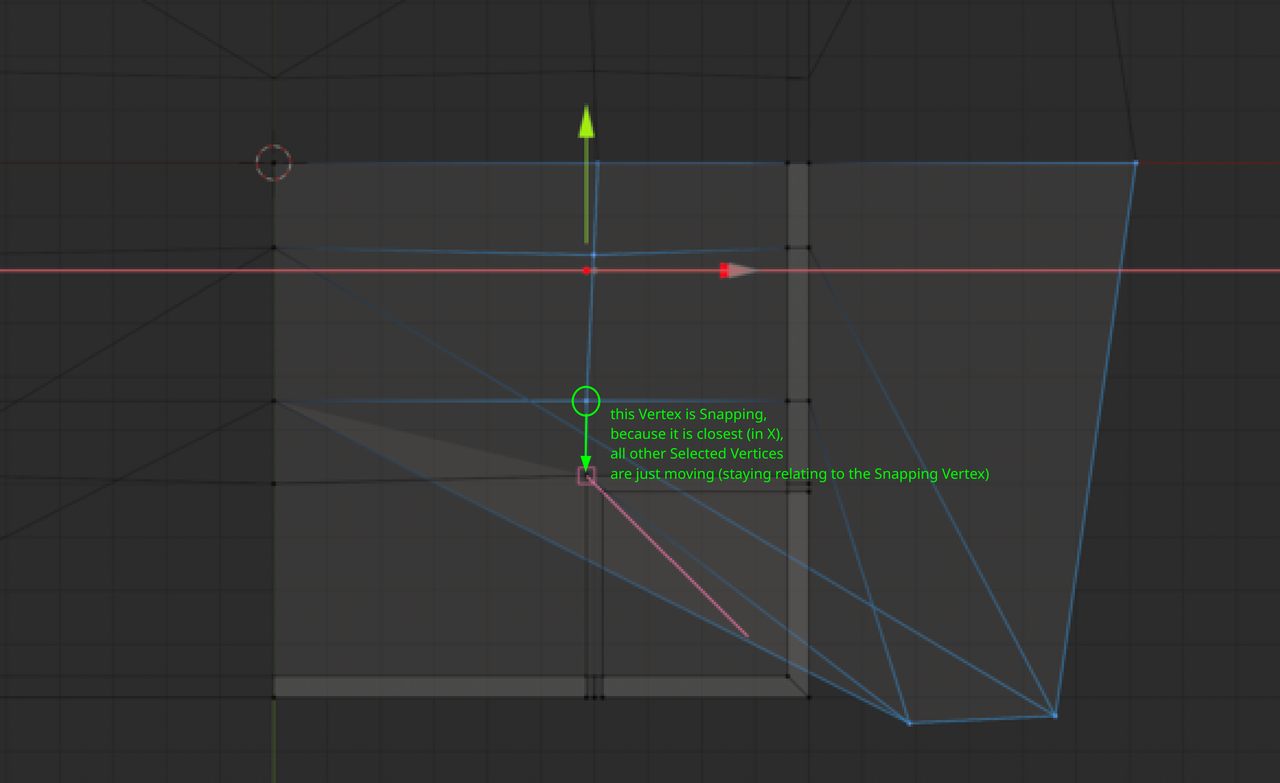

    Sorry, I'm a bit late, but the way I read your Screenshot is like this:


    (And yes, Blender Basics is a must!)

    2 loves
  • vinay gowda(vinay21) replied

    Thanks to your feedback, I'm now diving into the basics.
