Fill Problem

I have managed to do the first fill, but when i try and do the second fill it does not work, the vertices overlap and it is really messy, this is what i have before it messed up

1 love
Reply
  • Omar Domenech replied

    Try to do it in small stages. Don't make big selections that Blender will have a hard time figuring out what to fill, just select a couple of vertices and F to fill that, then other couple of vertices, F to fill those and so on and so forth until you have the whole thing filled.

    2 loves
  • Omar Domenech replied

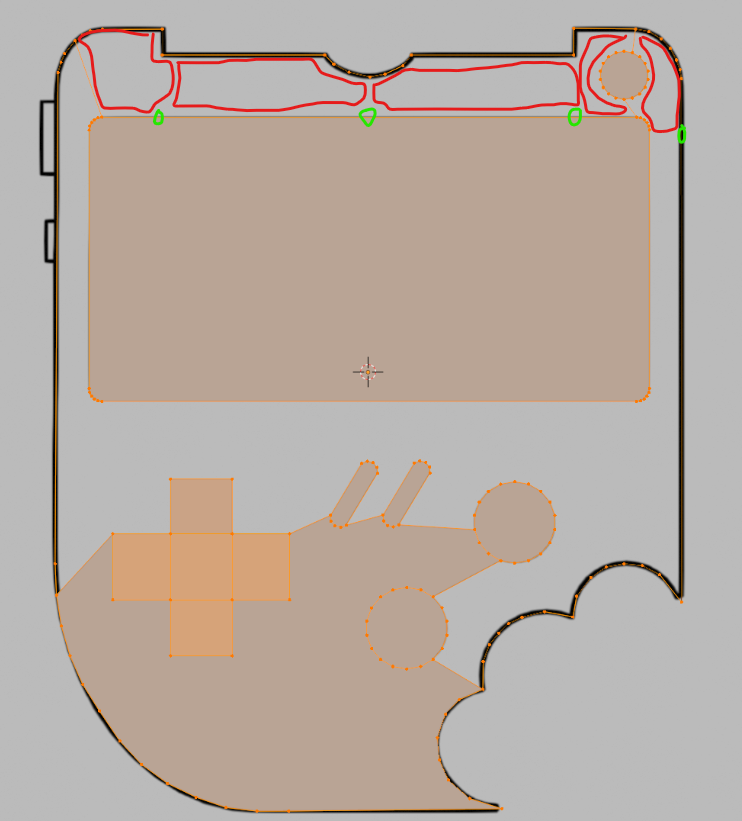

    You can for example add new vertices where the stretch is too long (green circles are new vertices and red areas the fill with a face) That way you keep it localized and avoid overlaps.


    2 loves
  • Martin Bergwerf replied

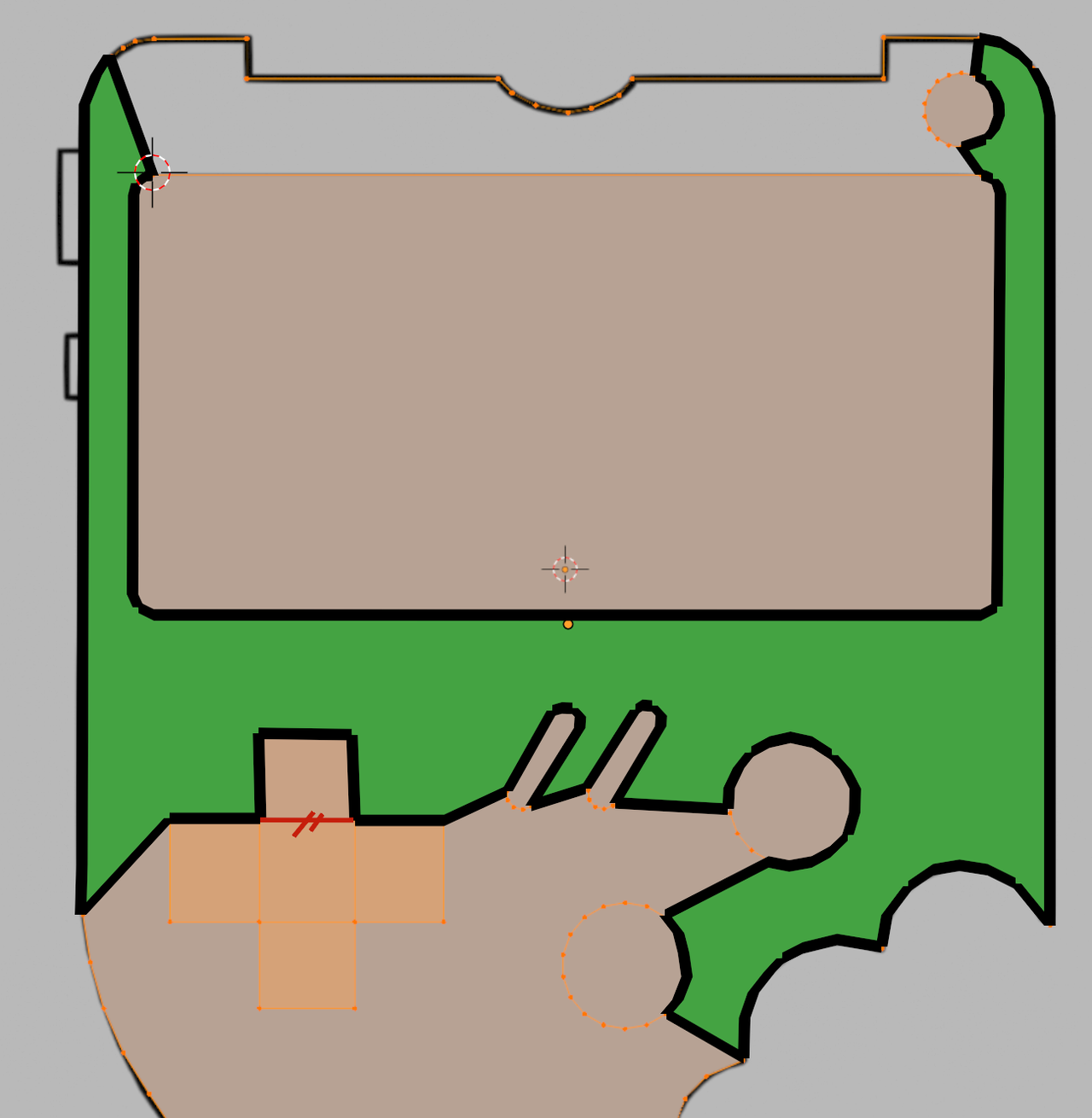

    Also, make sure that your Selection is correct, so to fill in this green area, only select these Edges:


    And you need to be in Edge Select Mode here, to avoid inadvertently selecting that red Edge.

    And it looks like your D-pad already has overlapping Faces, so you might need to go back a few steps (just Delete Faces in Face Select Mode and then start over, Filling).

    1 love
  • Adrian Bellworthy replied

    So the bottom section looks incorrect,
    The vertices and edges highlighted in red should not be selected when filling this section.
    I would advice using edge select mode as a beginner, because vertex select mode will select unintentional edges by selecting both vertices of an edge.


    1 love
  • Michael Hodgkins(Shade) replied

    Thank you all for your feedback and tips, it's now fixed :D

    • 👍🍪
    • 👌
