snapping issue

my aircap is not snapping correctly even though i'm doing the same as shown in the lesson

  • Martin Bergwerf replied

    Hi Muhammed @haamza ,

    Most likely is, that you are not doing the same as shown in the lesson, but if you can tell us a bit more, like how your aircap is snapping, when not correctly. One or more screenshots might also be helpful.

  • muqaddas replied

    please correct me mistake im beginner

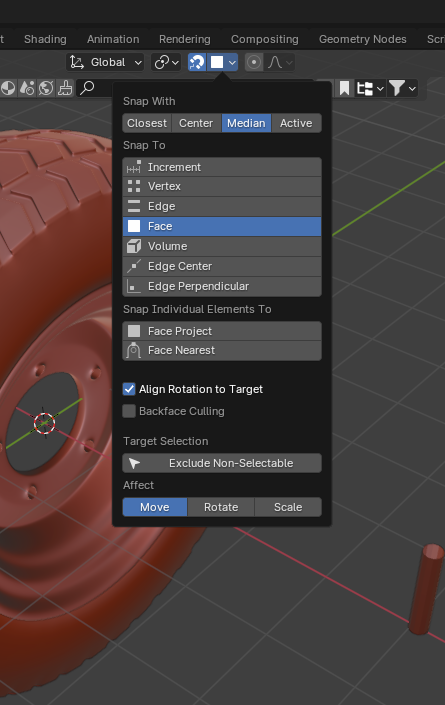

    024-03-16 031217.png

  • Martin Bergwerf replied

    ...and how does it snap?

    (I don't think it's a mistake in your Snap Settings...)



    1 love
  • Omar Domenech replied

    Snapping can sometimes behave a little funky. In Blender 4.0 there was a great upgrade to tell Blender specifically where you want to snap to, you can see it on this video here:

    https://cgcookie.com/lessons/pivots-snapping-and-proportional-editing

    1 love
  • muqaddas replied

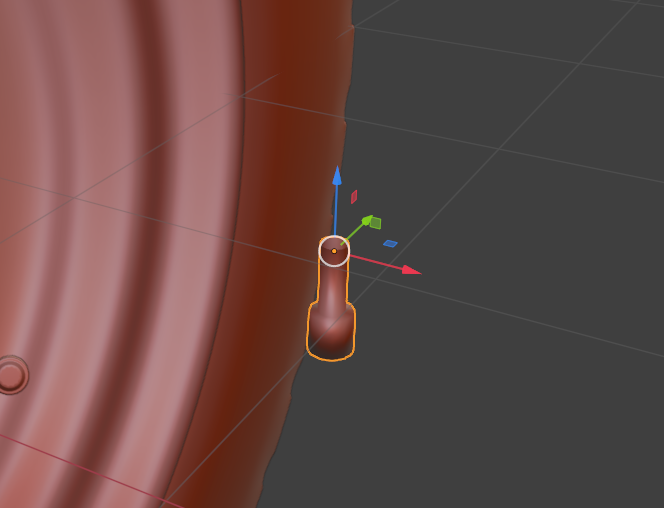

    my problem solved after changing the origin like in tutorial its in the bottom and and when I set it on top its snaped well on the position 🤷‍♀️😁
    024-03-18 023841.png

    • 🤘🏼
    • 👍🏻
  • Adrian Bellworthy replied
    Solution

    Sounds like your normals maybe flipped on your wheel. Which will cause the snapping 'align rotation' to be incorrect.

    You will need to fix this or you will have issues later in the course.

    Select the wheel and enable the Show Face Orientation Overlay, if the wheel turns red, then your normals are incorrect.
    If this is the case, with the wheel selected enter edit mode, press A to select everything, then press SHIFT+N to flip the normals and the wheel should now be Blue.

    The color of the face orientation overlay...
    Red = back (internal) face
    Blue = front (external) face

    You will now have to move the origin back to the bottom of the air cap.

    1 love
  • muqaddas replied

    hello Adrian Bellworthy I checked that and yes normals were the actual issue thank you soooomuch for this information  🙌

    • 👍
