Gizmo

Question

after creating the plane and adding the modifier and scaling, my gizmo is no longer on the object I'm scaling, it works but its at a different origin, which makes scaling very difficult. Can anyone tell me how to reset it back to be with the object

Answer 1 · 2024-02-28T12:40:32Z

S

replied February 28, 2024 12:40pm

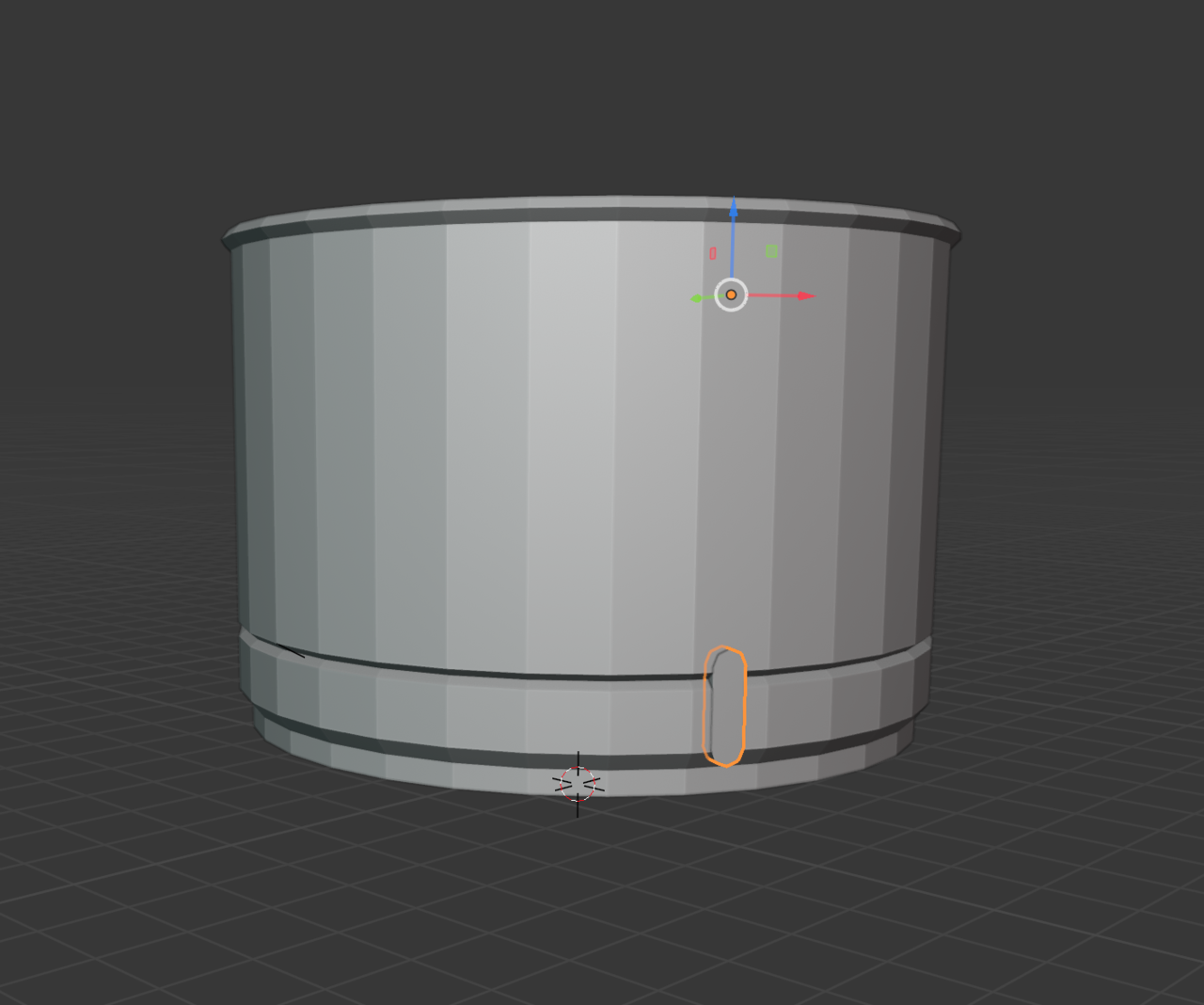

28 at 7.33.33 AM.png

1 love

Answer 2 · 2024-02-28T12:55:18Z

Martin Bergwerf replied February 28, 2024 12:55pm

The Gizmo is exactly at your Object! That orange dot is the Objects origin; where the Object is, not necessarily where the Object's Vertices are.

Now, to get the Origin back to the Mesh, go to Object > Set Origin > Origin to Geometry.

2 loves

Answer 3 · 2024-02-28T14:11:35Z

Omar Domenech replied February 28, 2024 2:11pm

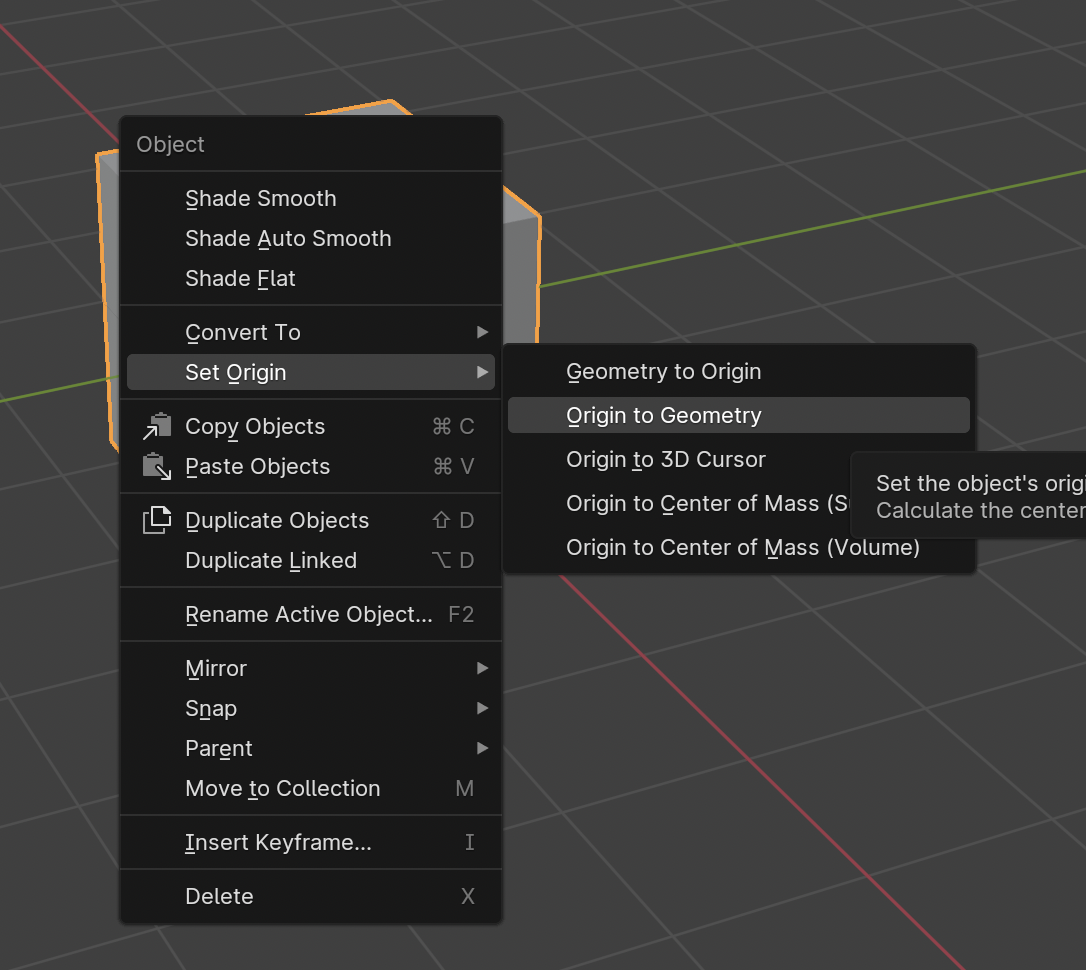

You can also right click and Set Origin:

2 loves

Answer 4 · 2024-02-28T14:28:43Z

S

replied February 28, 2024 2:28pm

great! easy fix. thank you.
can you tell me why that happened? did I do something or press something for it to not have the origin and geometry aligned?

1 love

Answer 5 · 2024-02-28T14:42:48Z

Omar Domenech replied February 28, 2024 2:42pm

If you move an object in edit mode, the origin point gets left behind, it doesn't move with all the geometry. When you move an object in object mode, the object origin comes along. So you probably moved things in edit mode at some point. Try it out and see for yourself.

1 love
