Assigning /unassigning vertices to vertex groups
Question Modeling

Question

Im trying to unselect the wing vertices from the group so theyre not shrinkwrapped, i shift select the vertices i want , highlight the group in data properties and click remove (next to assign) but nothing seems to happen , thx

https://drive.google.com/file/d/1zLSOnWUINBG19PVt1o5CzmutkQqSS7JT/view?usp=sharing

Answer 1 · 2023-09-15T14:51:15Z

Adrian Bellworthy replied September 15, 2023 2:51pm

Hey Jojo ,
The remove button should work fine.
Note this does not deselect the vertices, so it looks like nothing happens.
Press ALT+A to deselect everything, then press the select button under vertex groups.
You now see they are indeed removed from the group.

1 love

Answer 2 · 2023-09-15T16:09:11Z

Martin Bergwerf replied September 15, 2023 4:09pm

Hi Jonathan,

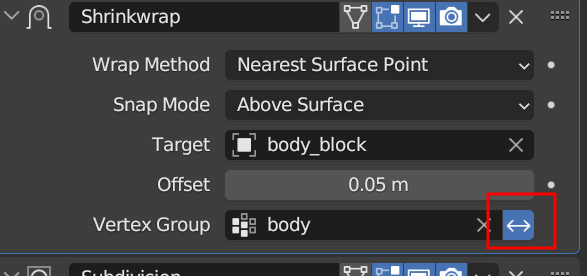

nothing wrong with your Vertex Group, but you have the Invert Button enabled in the Shrinkwrap Modifier:

This means it excludes the body Vertex Group from the Shrinkwrap and only Shrinkwraps the wings.

1 love

Answer 3 · 2023-09-15T17:34:08Z

replied September 15, 2023 5:34pm

oh yeah, i clicked that thinking it did something else, turns out my offset is too high
