Im not being able to select any vertices, edges or faces

When you box select the vertices, edges or faces they become highlighted in edit mode but im not being able to box select any of them. they do select individually or if i press shift then box select. Any idea why im not being able to box select them?
  • Omar Domenech replied

    That is weird, if they become highlighted that means they are selected. So if you are box selecting them and they highlight in orange or whatever color you have assigned to your UI theme, they are getting selected and then you can do any transform or operation to them. Can you post a screenshot of the problem, or better yet, a video screen grab of the thing in action.

  • Adrian Bellworthy replied

    You mean you can't left click and drag to box select?

    Do you have any 3rd party add-ons enabled?

  • Sana Shakeel Chaudhry(Roxie) replied

    https://drive.google.com/file/d/176OUuqs6bsWlZ6LyABTpBhFSJYJalo-v/view?usp=sharing

  • Martin Bergwerf replied

    Or maybe Sana RRoxie ,

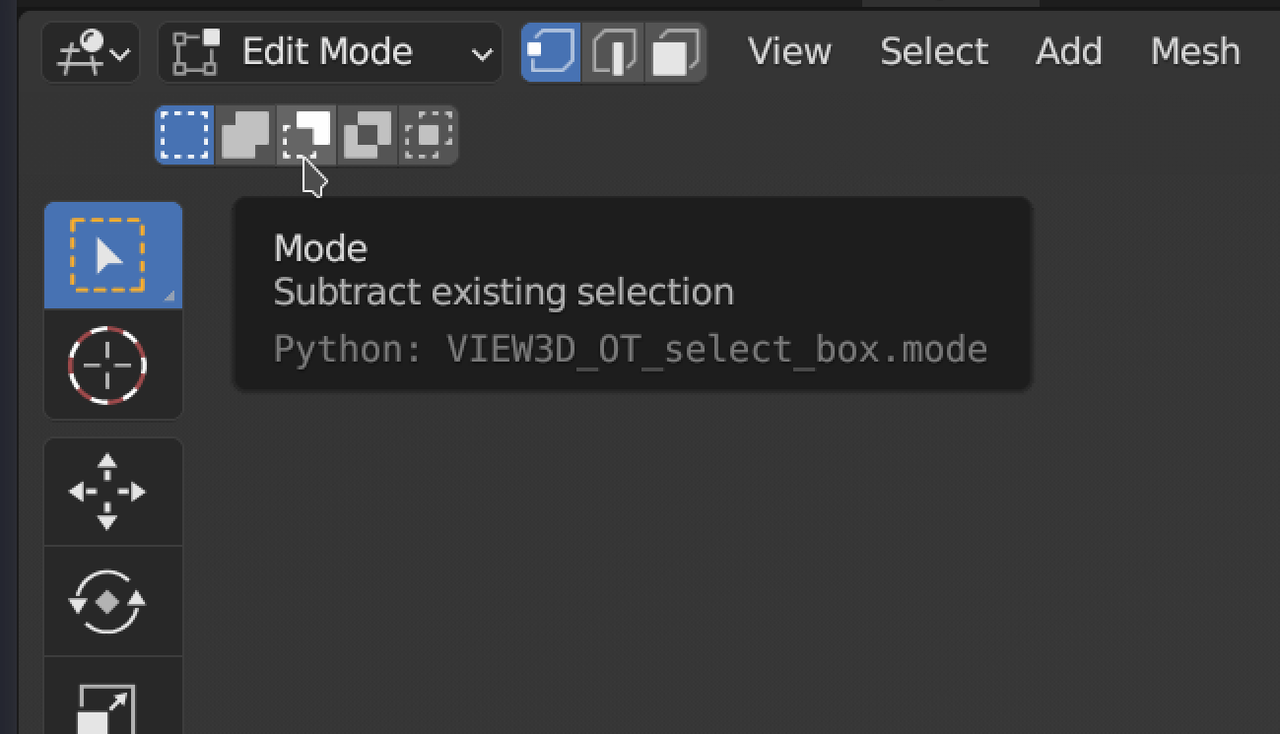

    You have the wrong Selection Mode enabled, like Subtract, for instance:



  • Sana Shakeel Chaudhry(Roxie) replied

    This area is not visible on my screen, i dont know why

  • Omar Domenech replied

    Thanks for sharing the video Sana. It may be what Martin says. Also I see in the outliner you have the reference image selected. Make sure you only selected the mesh and then go into edit mode.

    1 love
  • Martin Bergwerf replied

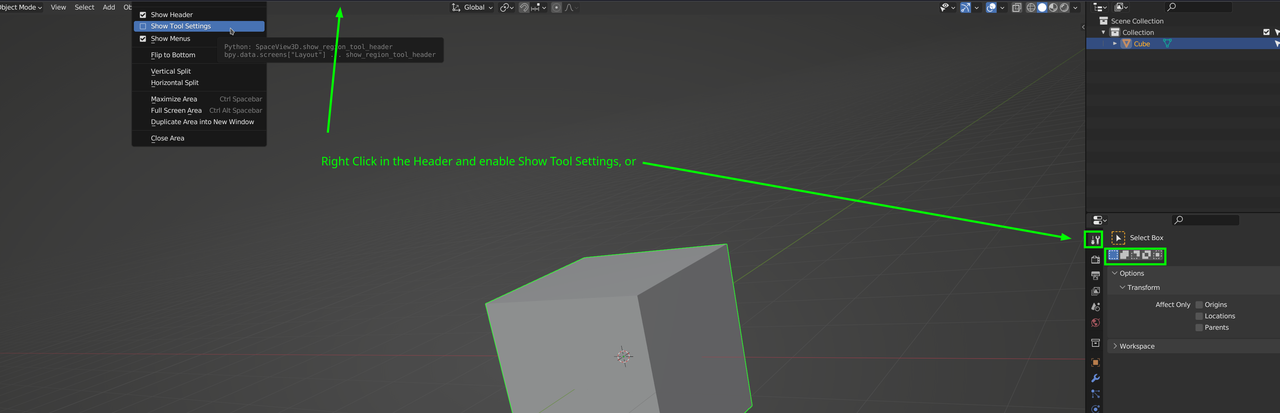

    I see that you don't have your Tool Settings enabled in the Header:


    1 love
  • Sana Shakeel Chaudhry(Roxie) replied

    Yeahh that was the problem. Thank youuuu <3 Its fixed now.

    • 🤟🏼
    • 🤟
  • Sana Shakeel Chaudhry(Roxie) replied

    how do i turn on the command key for angle? to press A and it holds the angle? how do i do that?

  • Omar Domenech replied

    Can you give us more context please? I don't know exactly what you mean by command key. Are you rotating? When your performing what operation are you trying an angle? The A key is for selecting all or deselecting.

  • Sana Shakeel Chaudhry(Roxie) replied
    when we're making the cartridge and have to cut with K so we're using knife tool but to keep the line straight we have to press A. mine doesnt work. how do i turn it on?
  • Martin Bergwerf replied

    Hi Sana,

    the Knife Tool takes some getting used to.

    Maybe practice on the Default Cube a bit until you get the hang of it.

    Press K, then Enter and then you can press A to constrain to an Angle (increments of 30° by default). Pressing A more than once cycles through different options (Screen/Relative/Off/Screen...)Screen is the one you probably want here.

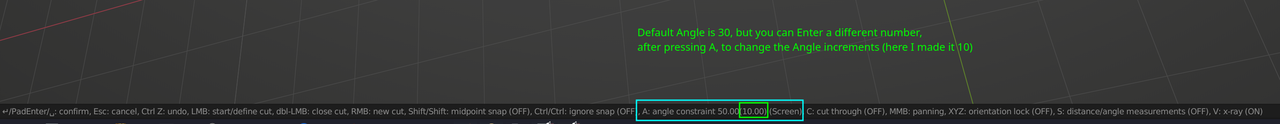

    Watch the options at the bottom of the 3D Viewport:



    1 love
  • Sana Shakeel Chaudhry(Roxie) replied

    ohh thanks, mine says "c" gives angle constraint

  • Martin Bergwerf replied

    That's an older Blender Version then 😊...it used to be C ...they changed that to A in 3.0

    2 loves
  • Muhammad Kennedy(Muhammad Kennedy) replied

    Thank you, this also works for me through "A".

    • 🤘
    • 👍
