    Problem with curved corners after applying bevel

    Kamil Wanzek(CamVanZek)
    posted to: Creating the Cartridge Slot

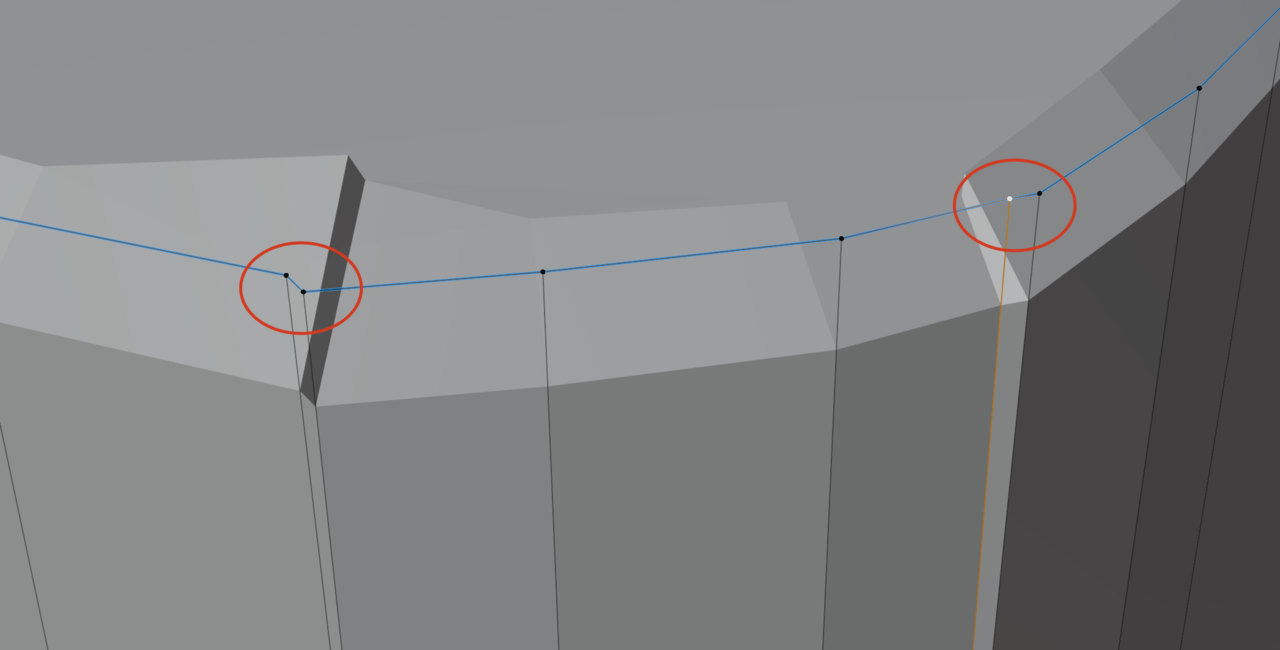

    I need help with solving this problem. As you can see on the image some curved parts of the base shape after applying bevels got sharp edges ( left and right side and top and bottom all has a same problem). What's wrong with my vertexes and how can i resolve this issue? Thanks for your time. Here's a visual presentation of the issue
    https://drive.google.com/file/d/1K0lU4pCRJ6gUvz7M_D80cPE6qCZpIluS/view?usp=sharing

    Reply
    • Martin Bergwerf replied

      Hi Kamil CCamVanZek ,

      Have you tried (in Edit Mode):

      Select everything and M > Merge By Distance, followed by SHIFT+N to fix the Normals of your Mesh.

    • Martin Bergwerf replied

      ...and there is also this, if you're fast:

      https://cgcookie.com/community/15679-office-hours-jonathan-s-office-thursdays-11am-pacific-time

    • Omar Domenech replied

      Also the good old, have you applied the scale? You know, I think it's time we did some flash card with common solutions that we can share.

    • Martin Bergwerf replied

      Yeah, Scale was Applied, Omar

    • C
      Kamil Wanzek(CamVanZek) replied

      Unfortunately, missed office hours, will try next time. Thank you spikeyxxx for your reply. Tried your approach to Select everything and M > Merge By Distance, followed by SHIFT+N to fix the Normals but doesn't work (no change in corner area and also distort other meshes ie. rectangular buttons

    • Martin Bergwerf replied

      CCamVanZek ,

      Could you upload your .blend file to a filesharing service (like Dropbox, Googledrive, or so) and post a link here? Then we can have a look at what's causing this.

    • C
      Kamil Wanzek(CamVanZek) replied

      spikeyxxx Of course, I can. Here's a link to a google drive where you find a blender file. https://drive.google.com/file/d/1PGrUoztidbpwdRzr7sdP7jIi9HSoeROg/view?usp=sharing

    • Omar Domenech replied

      It's just that you had double vertices there. You can just select everything and M to merge by distance and it'll all be fixed.

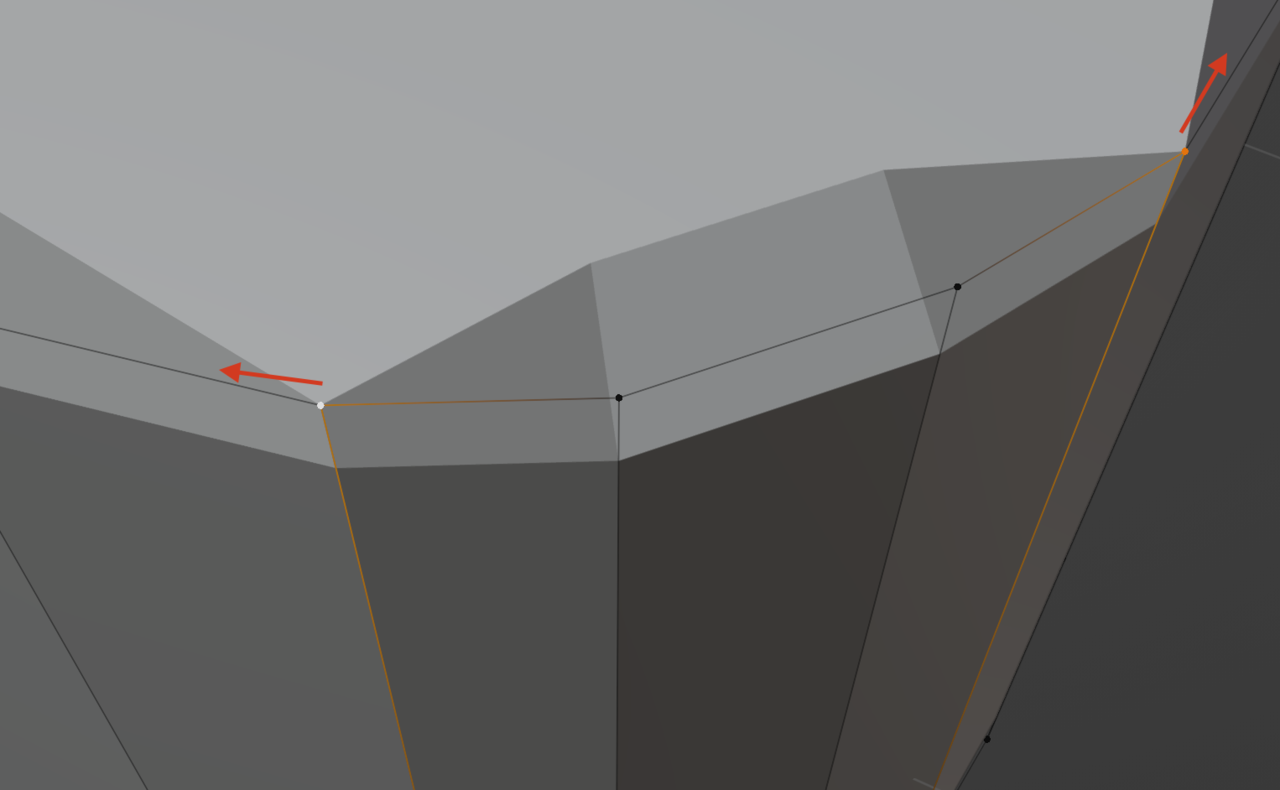

      You can usually tell you have double vertices if when you select a vert, the edge next to it doesn't get highlighted in selection orange color:

      Highlight Edge.png


    • C
      Kamil Wanzek(CamVanZek) replied

      dostovel Thank you so much. You were right about double vertices but for a couple of minutes, I couldn't select the second point in the same place. Finally find a solution, when I enable unselected in the Merge menu. Also, huge thanks for the tip about orange lines when selecting vertices. Really appreciate it.

      • 🤟🏼
    • Martin Bergwerf replied

      You can also select two Vertices that are on top of eachother, by switching to Wireframe Mode (Z > Wireframe) and box select (or circle select, or lasso select) or you can select everything with A (be careful that you don't Merge too much this way).
