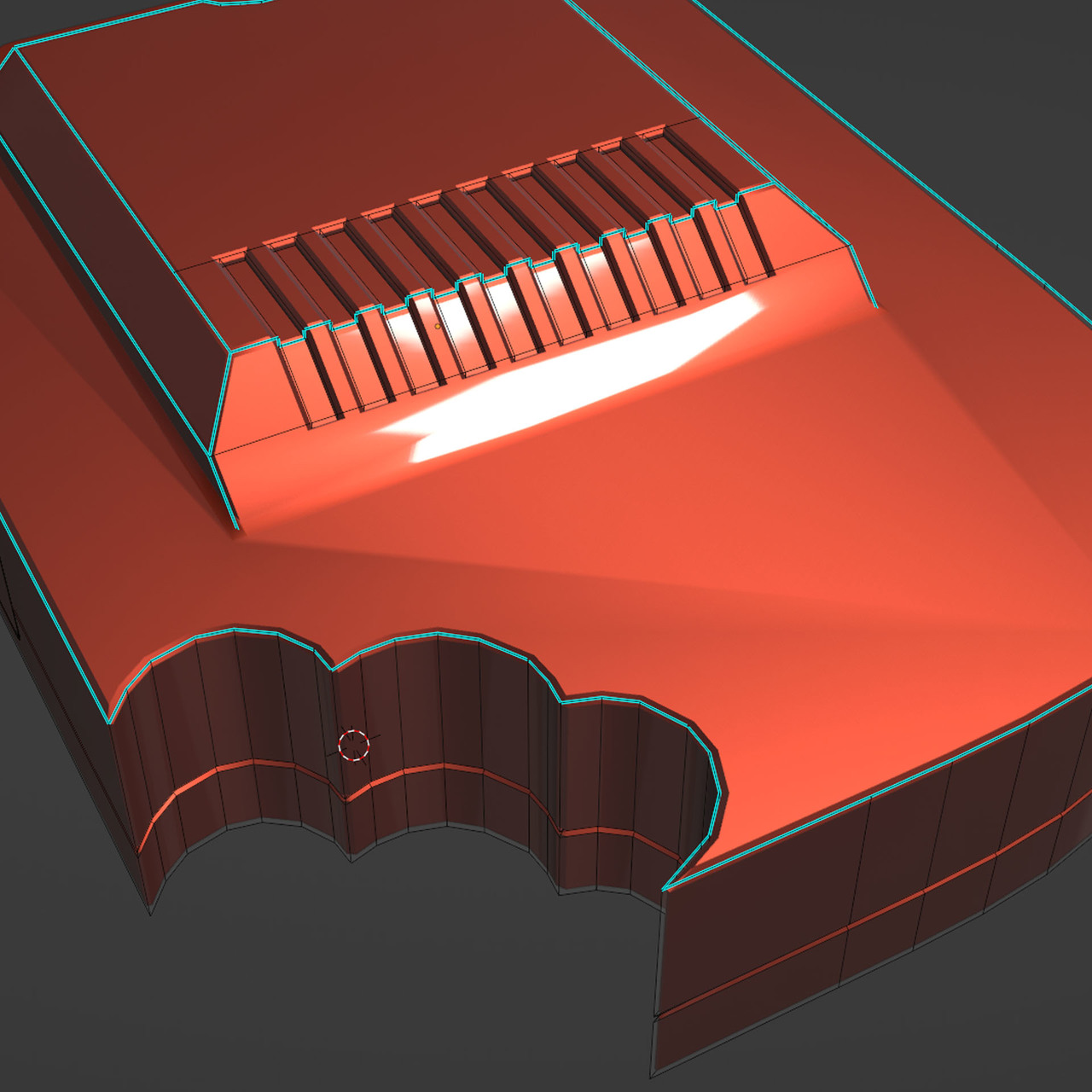

Strange Shadows on the bottom face.

I can't seem to get the bottom face smooth. I have made sure that numerous areas are level and even. But I must be missing something. I have found that disabling my Bevel modifier makes it go away. So I'm assuming it has something to do with that.

Any more detailed advice would be amazing.


  • Martin Bergwerf replied

    Hi Louis LLooish5 ,

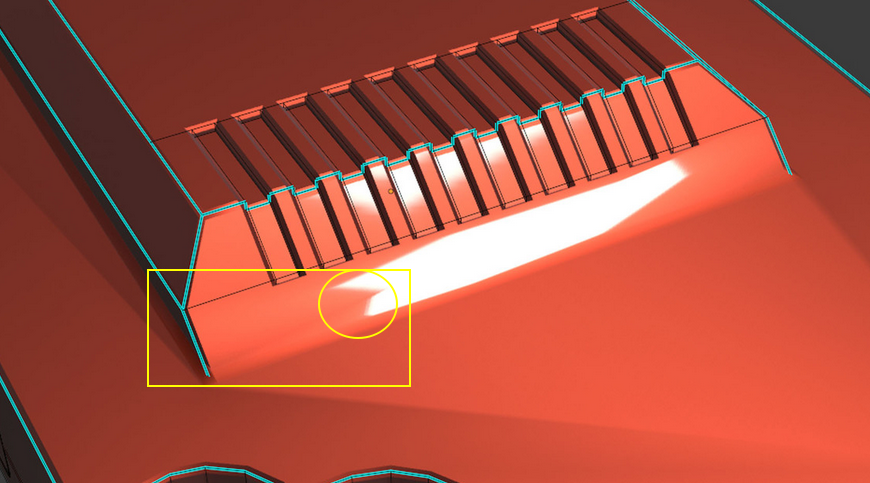

    Personally, I find this more worrying:


    Anyway, you can try to enable Harden Normals in your Bevel Modifier, under Shading. And you can also try to slightly reduce the threshold angle in the Auto Smooth...

    There might actually be something wrong with your model, but I'd need to see your .blend file, in order to be able to troublshoot.

    (If you want, you can upload it to Dropbox, GoogleDrive, or any filesharing system and post a link here, then we can have a look at what's causing this.)

  • Adrian Bellworthy replied

    It could be a number of things, such as flipped normals, double verts or bevel modifier settings as Spikey alluded to.

  • Omar Domenech replied

    It could be also that the Ngon is way too big, maybe you van try connecting some extra edges with J. But yes, it would be easy to troubleshoot what's exactly wrong by having the file.

  • Jonathan Lampel replied

    My guess would be that it's because that bottom edge isn't marked sharp like the others. Any n-gon will look fine if it's perfectly flat, but that applies to the normals as well as the actual geometry (refresher on that). Because the shading is smooth along that edge, it's interpolating between the flat face and the angled face. Marking it sharp will separate the two so that the angles of each are not blended together when calculating the shading.
