What do you think of that head?

posted to: Modeling the Face

The imperfections are intentionnal. Lots of tweeking. Head

  • Martin Bergwerf replied

    Not bad at all, Max!

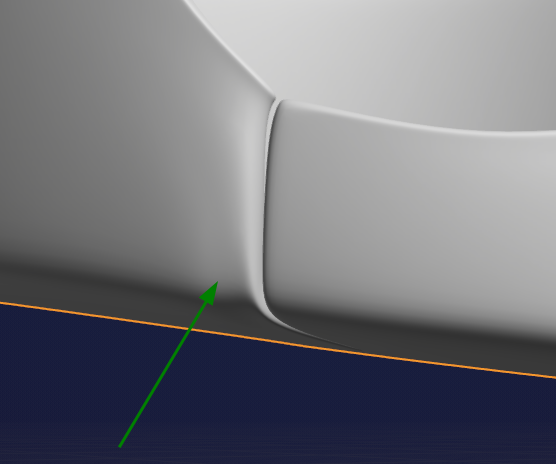

    There is one 'problem area' as far as I'm concerned:

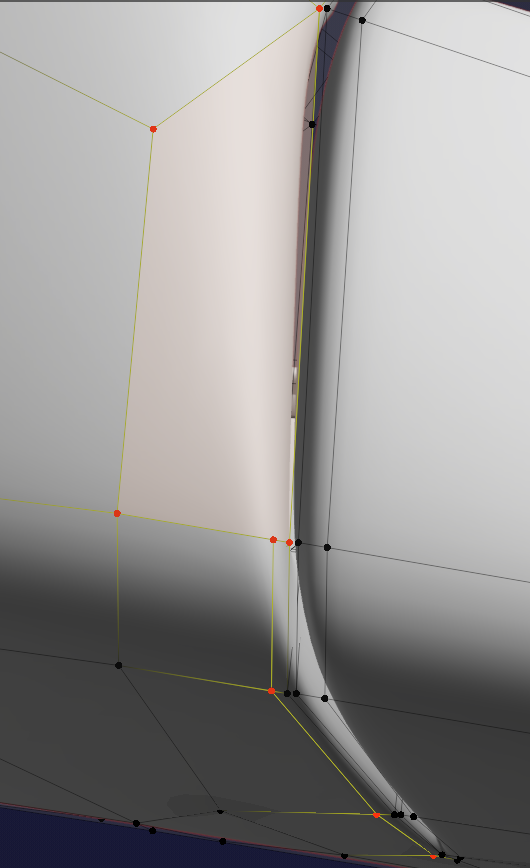

    There is some weird shading going on there. In Edit Mode it reveals two Triangles that can be made into a Quad by selecting and pressing F:


    Then I'd X > Dissolve Edges to get rid of this weird Edge that just creates N-Gons

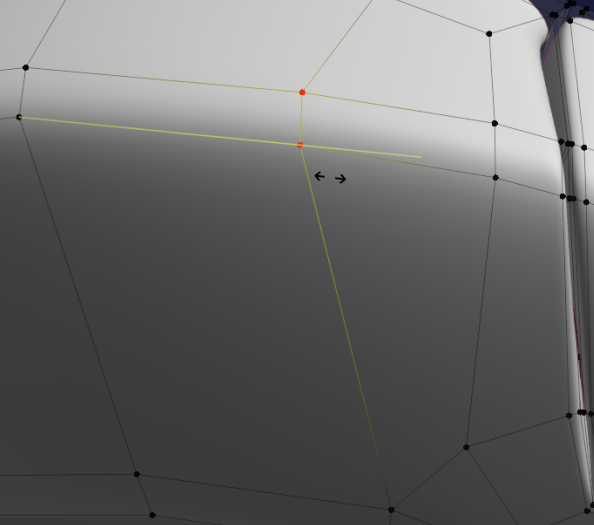

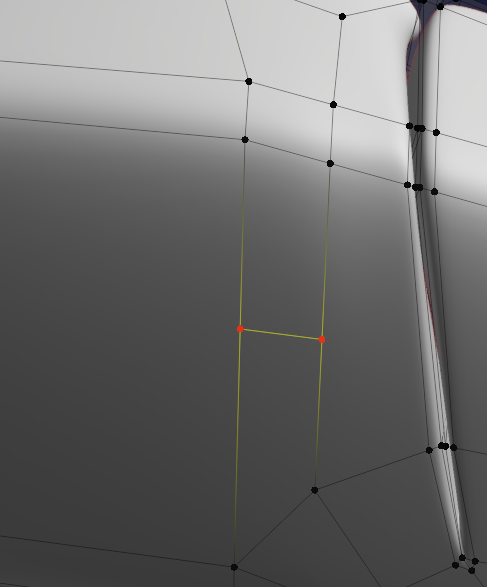

    And for good measure you can double-tap G to Edge slide this:


    Now it already looks a lot better, but you still have a holding Edge at the bottom that stops halfway and creates another N-Gon:


    Causing a sharp Edge to turn into a rounded Edge.

    If this is intentional, you can leave it, otherwise you'd need to rethink your topology in the top area. Probably use the Knife Tool to cut a holding Edge at the top and connect that with the existing one...and then maybe Merge some Vertices to make Quads.

    1 love
  • maxcady replied

    I thought that tris was tolerated. So I must make quads the most I can?

  • Martin Bergwerf replied

    Hi maxcady ,

    Tris (and N-Gons) are tolerated, especially in flat surfaces, but try not to use them when they are not needed. They can cause shading artifacts when using Subsurf Modeling.

    In your case, I noticed bad shading and saw the unnecessary Triangles in that area, so removed them...(almost automatically, without thinking...they may have been harmless in this case.....)

    1 love
  • maxcady replied

    Let's go step by step. I feel the need to remake that head cause there were imperfection that I couldn't correct. Not what you were talking about. I must improve my way of modeling. I have the tendency of adding loops everywhere and I can't correct strange areas cause it's too confusing at some point.

    step by step

    I kept going. I found new tricks and I improved and I ended up with this piece:

    Final result

  • Martin Bergwerf replied

    Cool!

    Most of the Mesh looks excellent!

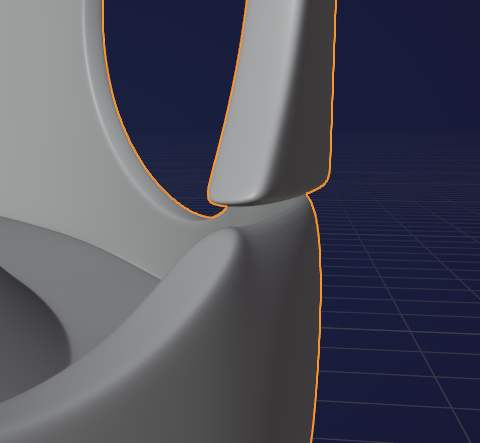

    There is bit of an issue here (on both sides, but this side is the worst):

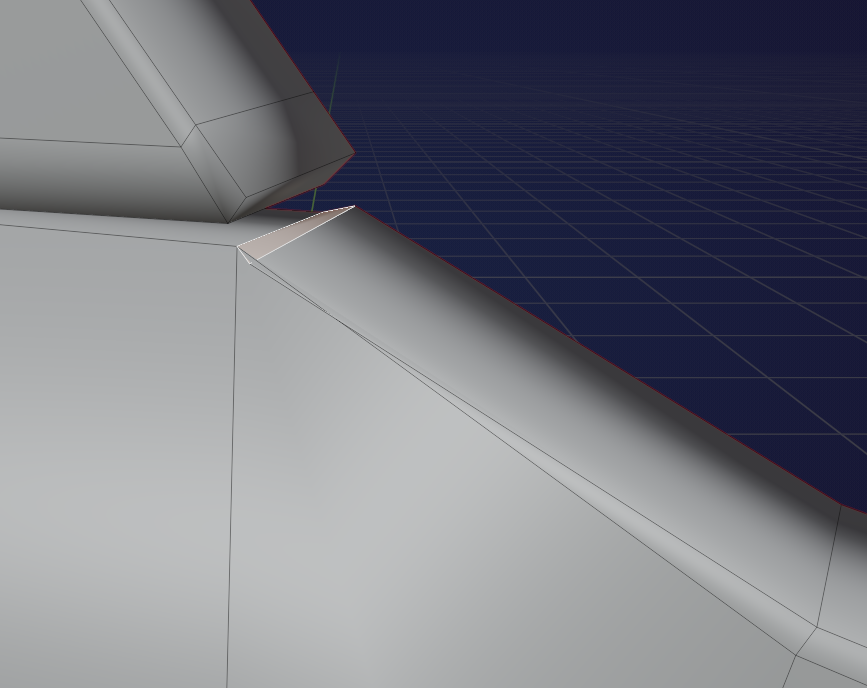

    In Edit Mode it reveals twisted Faces:


    Can be easily fixed by Scaling the Faces to 0 in (Local or Global!) Z.

    I lifted the Edges a bit afterwards to follow the contour of the top, but you can also make both flat of course.

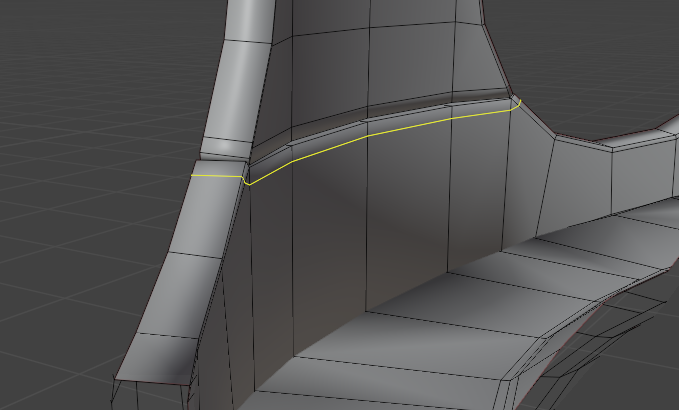

    Then I'd prefer to have an Edge Loop here (like you have everywhere else), You can use the Knife tool:


    I used Cut Through, but therefore i had to 'hide' part of the Mesh. My favorite way to do that is, box selecting what you want to see with ALT+B.

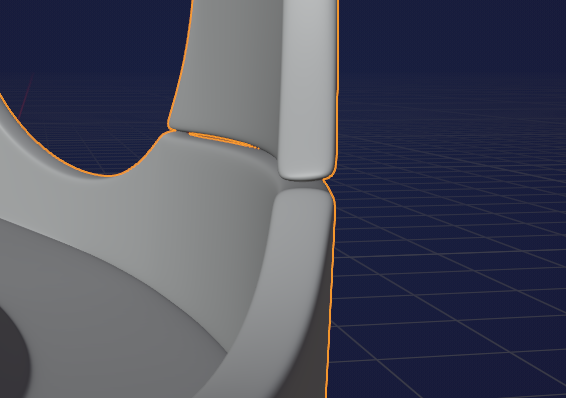

    The result:


    1 love
  • maxcady replied

    I didnt know how to make the top more thick. Now I start to understand. I kinda repaired the issue but there is still pinching. I don't know how to solve the issue without modifying the overall shape. I wanna become a good modeler :-)

  • Martin Bergwerf replied

    Hi Max,

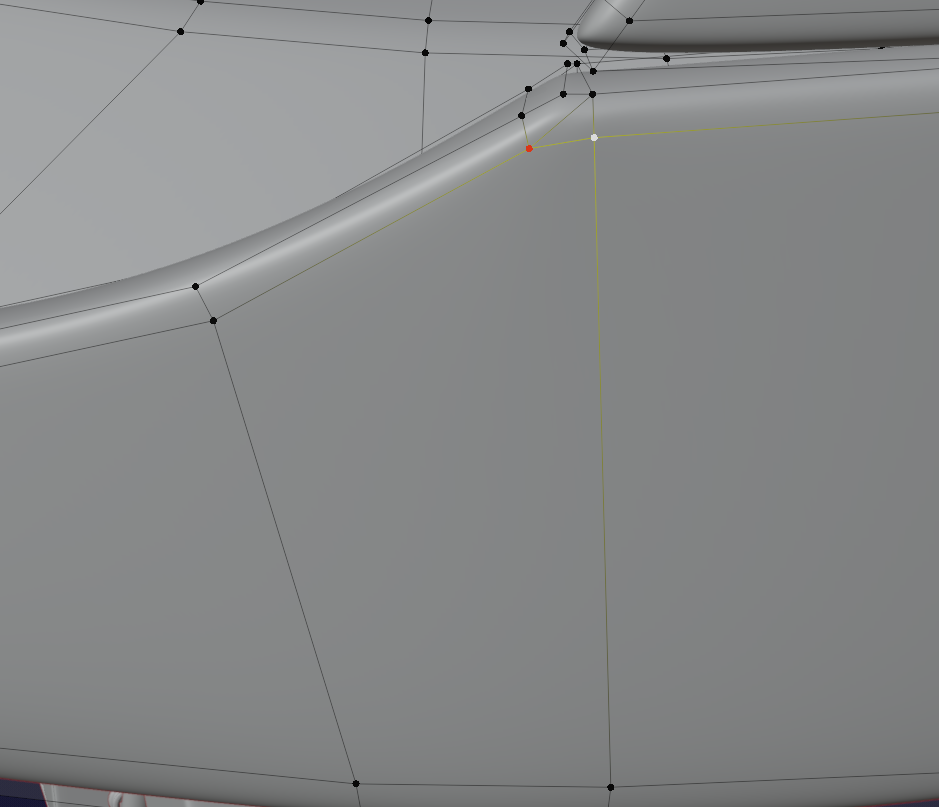

    There is a Triangle next to a 5-Gon, you can solve that by Merging the red Vertex to the white one (or the other way around, or Merge at Center..)


    Do this on both sides and on the inside as well.

    You can Edge Slide the holding Edges at that corner if you find it too sharp, but for the rest the model looks great to me.

    I would however bring  down the Level of the Subsurf Modifier to 2, that seems enough to me.

    1 love
  • maxcady replied

    I accidentally put the subsurf to 4. But Usually I put this to 2 or 3.

    Why having a subsurf is bad if you have the computer power to support it?

  • Omar Domenech(dostovel) replied

    I guess you can abuse the subD if you have the power to do so. But I think you still have Blender to account for, meaning that even thought your PC might be powerful, Blender itself can handle a limited number of poly's. Rule of thumb, for now at least, is have subsurf level at 2, maybe 3 in special cases.

    1 love
  • maxcady replied

    I like 3 most of the time cause I can see that it's even smoother. It doesn't slow down at all. It is slowing down only if I move a lot of big meshes at the same time that are subsurf at level 3.

    • 🤟🏼
