Unexpected Bevel Geometry on Side Panel

posted to: Modeling the Sides

This issue only occurred once I added the last panel into place. Not sure what went wrong here.

  • Riley Linch(Riley72014) replied

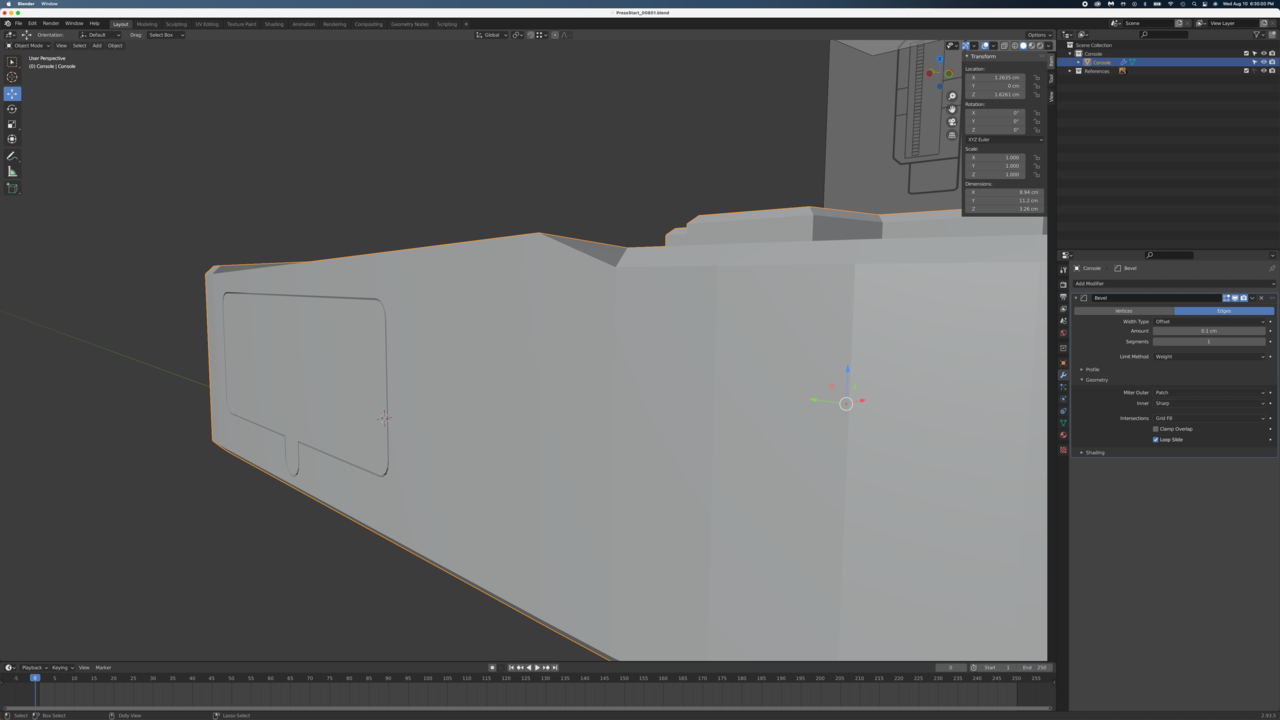

    Screen Shot 2022-08-10 at 6.35.00 PM.png

  • Riley Linch(Riley72014) replied

    Okay it went away as soon as I moved the vertex down a hair, even though it was already alined properly with the other vertices. Any suggestions on why this happened would be appreciated!

  • Martin Bergwerf replied

    Hi Riley,

    the screenshot isn't helping me at all, in this case. If you haven't completely destroyed the problem by fixing it, yet, maybe show the model in Edit Mode and tell us where the problem area is...My guess is, that that Vertext you moved wasn't as well aligned as you thought...

    A link to your .blend file (via Dropbox, googledrive, or...) can also be helpful in many cases, although it is of course difficult for anyone, asking a question, to know what is needed; sometimes a description of the problem is enough, sometimes it is almost impossible to solve without access to the .blend....

  • Omar Domenech replied

    Hello Riley. Same as Martin, I can't tell much of the problem with that screenshot. I'm thinking maybe it's those faces I see slightly bent right where the origin point is? But anyways yeah, that tends to happen when you have some vertices were misaligned. Your project seems to be going great thought, you're making good progress. Keep it up.
