Weird beveling on side panel?

posted to: Modeling the Sides

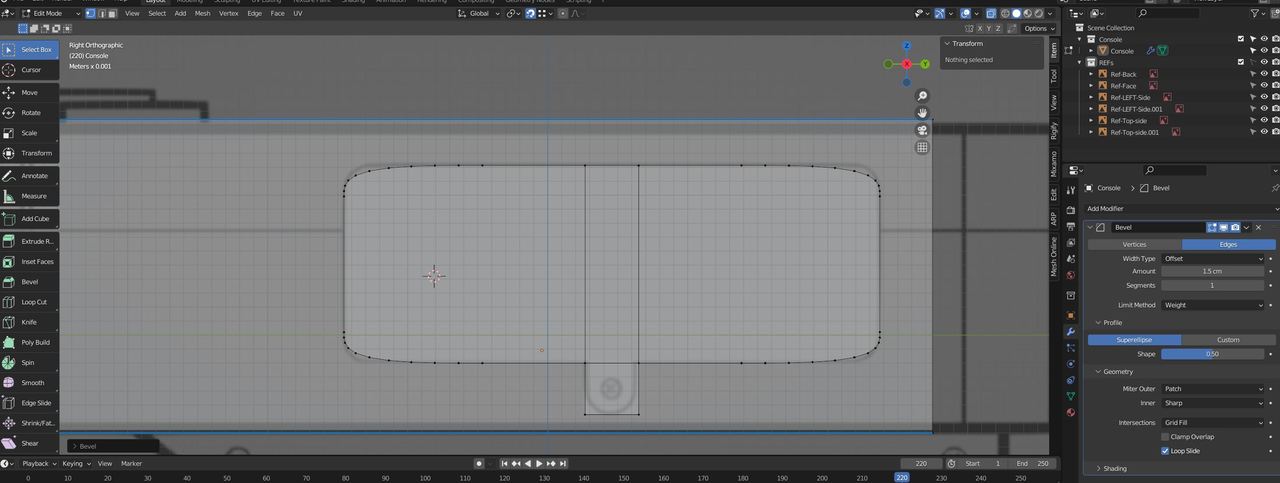

Hi, I'm a newbie to Blender and I've hit a snag with the beveling on the side panel. I can't make the shape uniform> I've tried merging any "spare" vertices and redoing the panel a few times but it's coming out the same. I've also adjusted shape settings etc but the bevel seems constrained to the proportion of the rectangle.
I'll add a screenshot......when I've worked out how.....
  • James Treweek(Smartassmusic) replied


  • spikeyxxx replied

    Hi Smartassmusic ,

    that is a classic one:)

    The Scale of your Object is not uniform. Solution: go into Object Mode and CTRL+A > Apply > Scale.

    When Scaling in Object Mode you are actually Scaling the Objects Origin/Coordinate System.

    A bit tricky to explain, but look at these images:

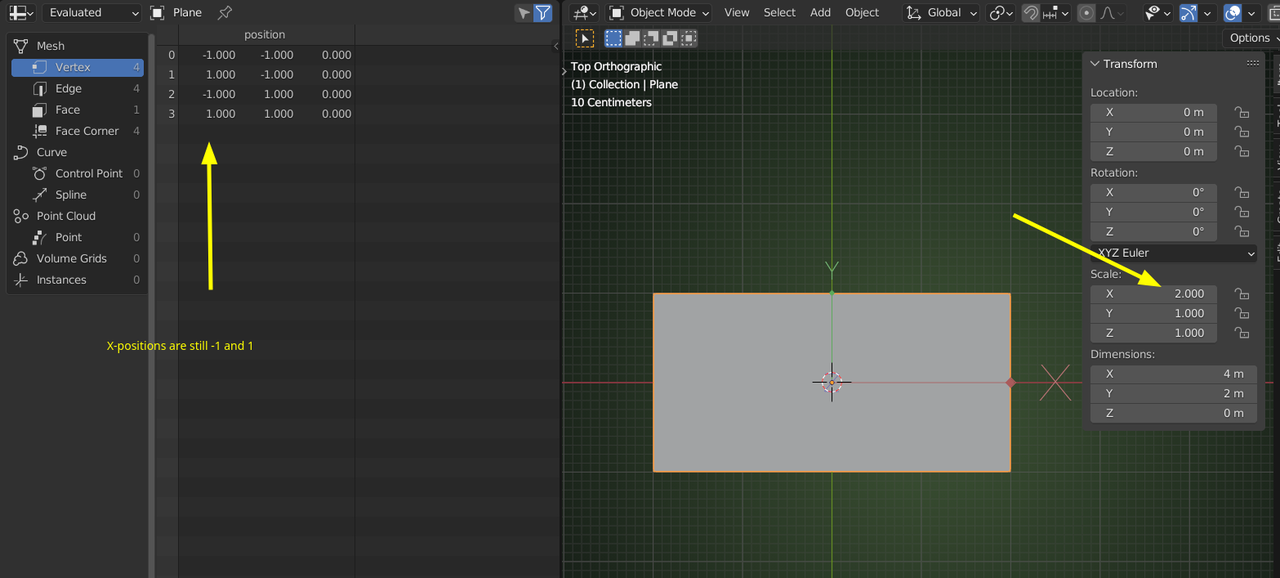

    Before:

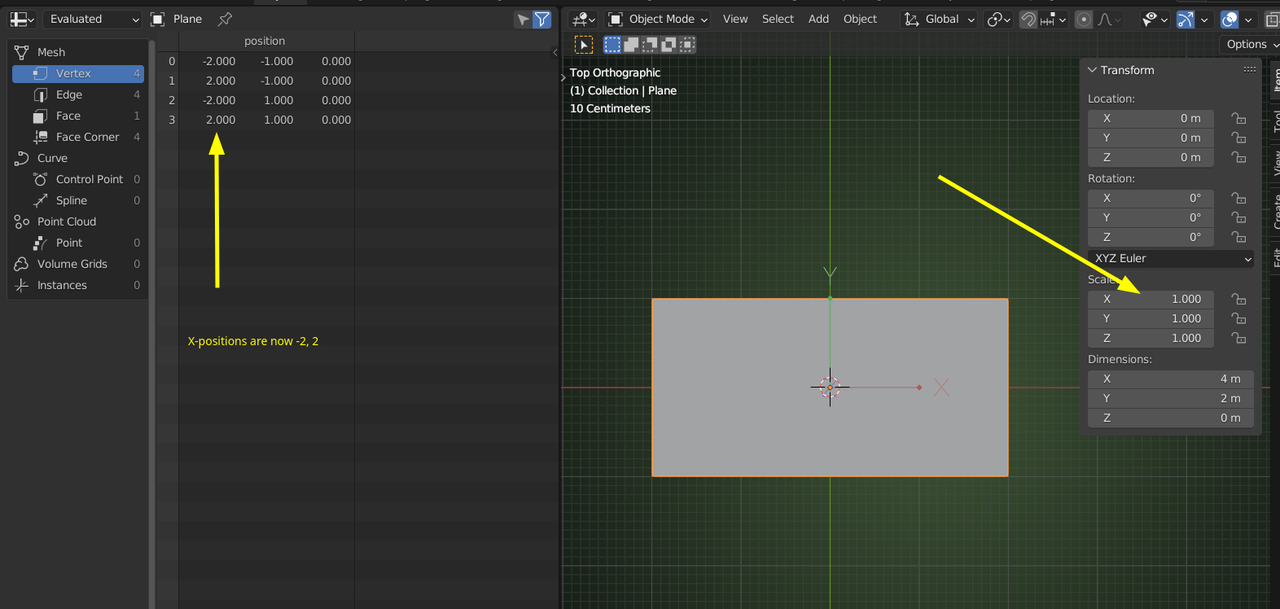

    And after Applying the Scale:


  • James Treweek(Smartassmusic) replied

    Aha! That looks exactly like what I need...trying it now, thank you!
    :-)

    1 love
  • James Treweek(Smartassmusic) replied

    Hi Spikeyxxx, I think you're exactly right but I seem to have got myself stuck in a corner here.
    This side panel is part of the same object as the console, so in Object mode I can't select the panel itself, so I get a very interesting result! (Below)
    Ironically the only thing that looks right here is the panel.
    Can I isolate this panel to make the scaling uniform? Or...how did it end up like this? I've redone this panel about 4/5 times and it always ends up like this (in fact even if I bevel the initial plane, it's the same issue)>
    Thank you!Capture2.jpg

  • spikeyxxx replied

    Smartassmusic , it looks like a mess, but I think your Bevel (Size) is now simply too large.

    Before your Z-Scale was less than 1, so the 'vertical size of the Bevel' looked smaller than it 'actually was'.

  • James Treweek(Smartassmusic) replied

    Aha again! I think you're right (again). I was noticing that my beveling numbers were different from the tutorial - that would explain why.

    Really appreciate you taking the time!

    1 love
  • spikeyxxx replied

    I looked at the video and the original model is 3.3 cm in the Z-Axis. You have, in your Screenshot a Bevel Size of 1.5 cm. That is obviously too much; in the Video the Bevel Size is 0.1 cm.

  • James Treweek(Smartassmusic) replied

    Ok, a HUGE thank you! It worked :-)
    I would never have found that issue.

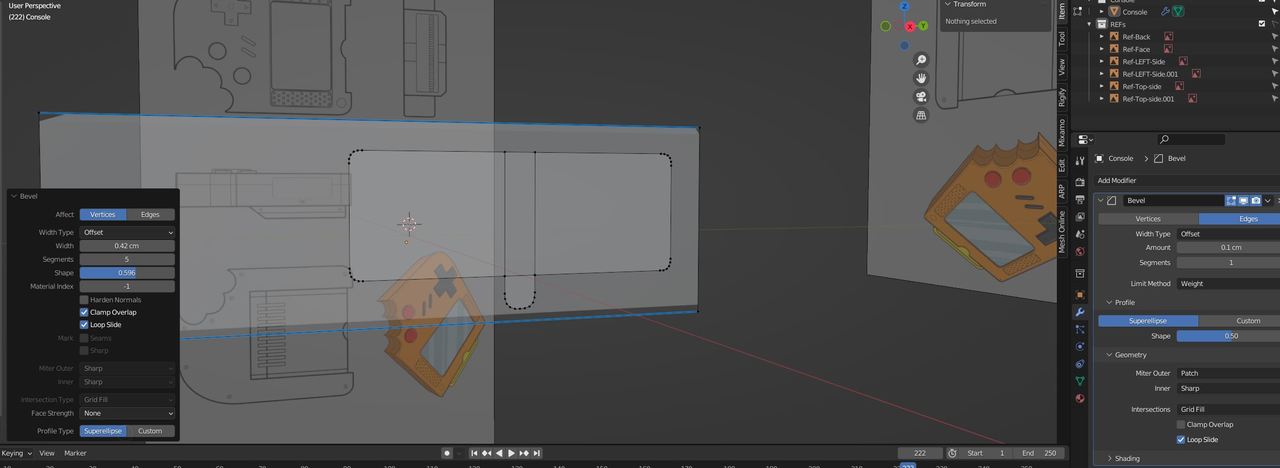

    You've saved me several hours and now I can carry on learning!Capture3.jpg

    1 love
