SOLVED: UV Not showing in Solid View

Collaborations

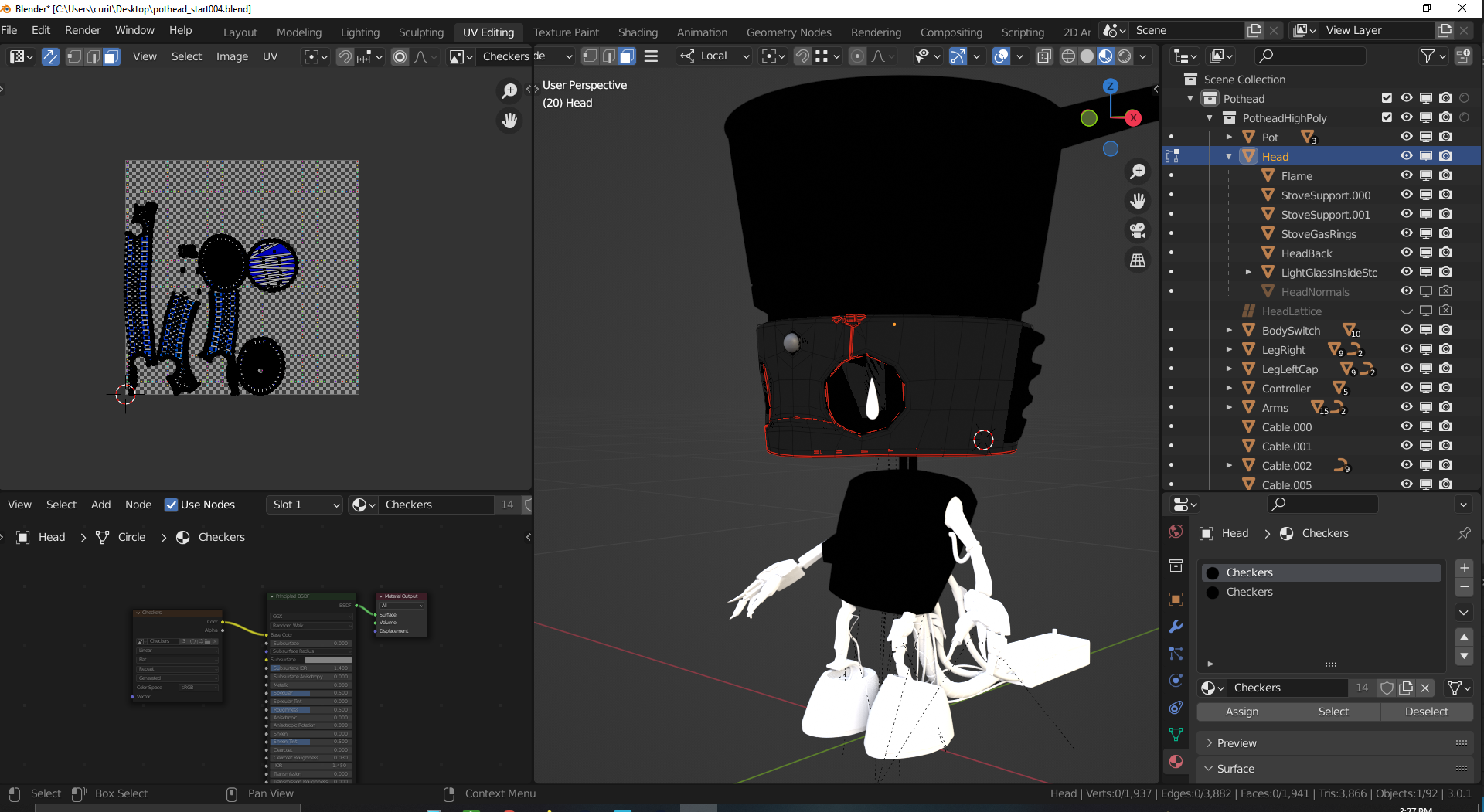

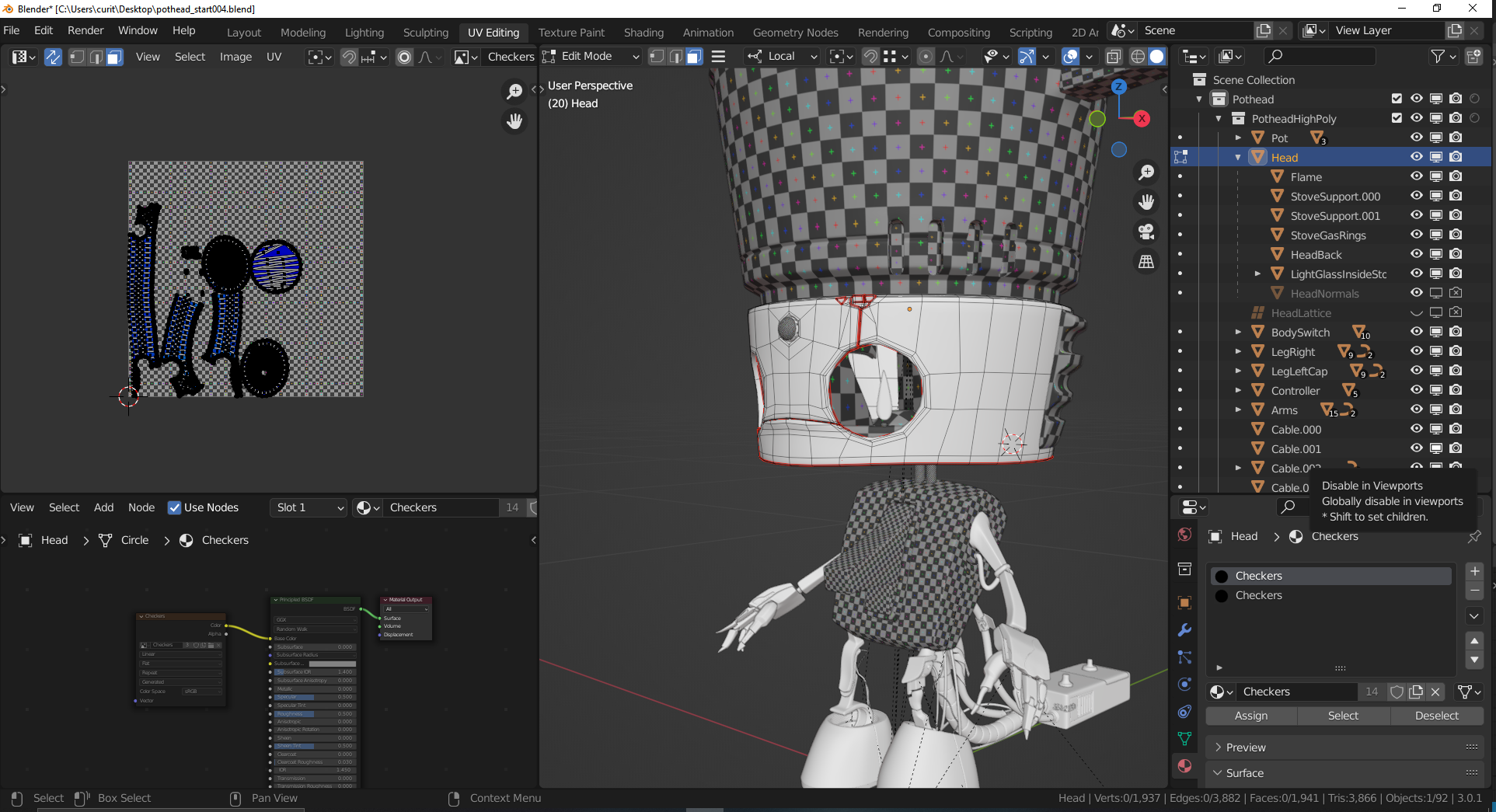

OK - as much fun as UV unwrapping can be..... it categorically hates me.  So far I have unwrapped the pot, the head, the neck and body. However the UV Checkers won't show on the pot at all. I have deleted the UV  and reapplied it. I deleted the original materials that were there and just selected the Checkers and I did for every other piece, but still nothing. When I am solid view the head is white. When in material preview it turns black like all the other unwrapped pieces. I have no idea if this will cause problems later or not.  After hours of jankying around I decided to return to you wonderful folks again for help.


HERE: Link to Blend File

Thanks again,

Ang


  • spikeyxxx replied

    Hi again Ang!

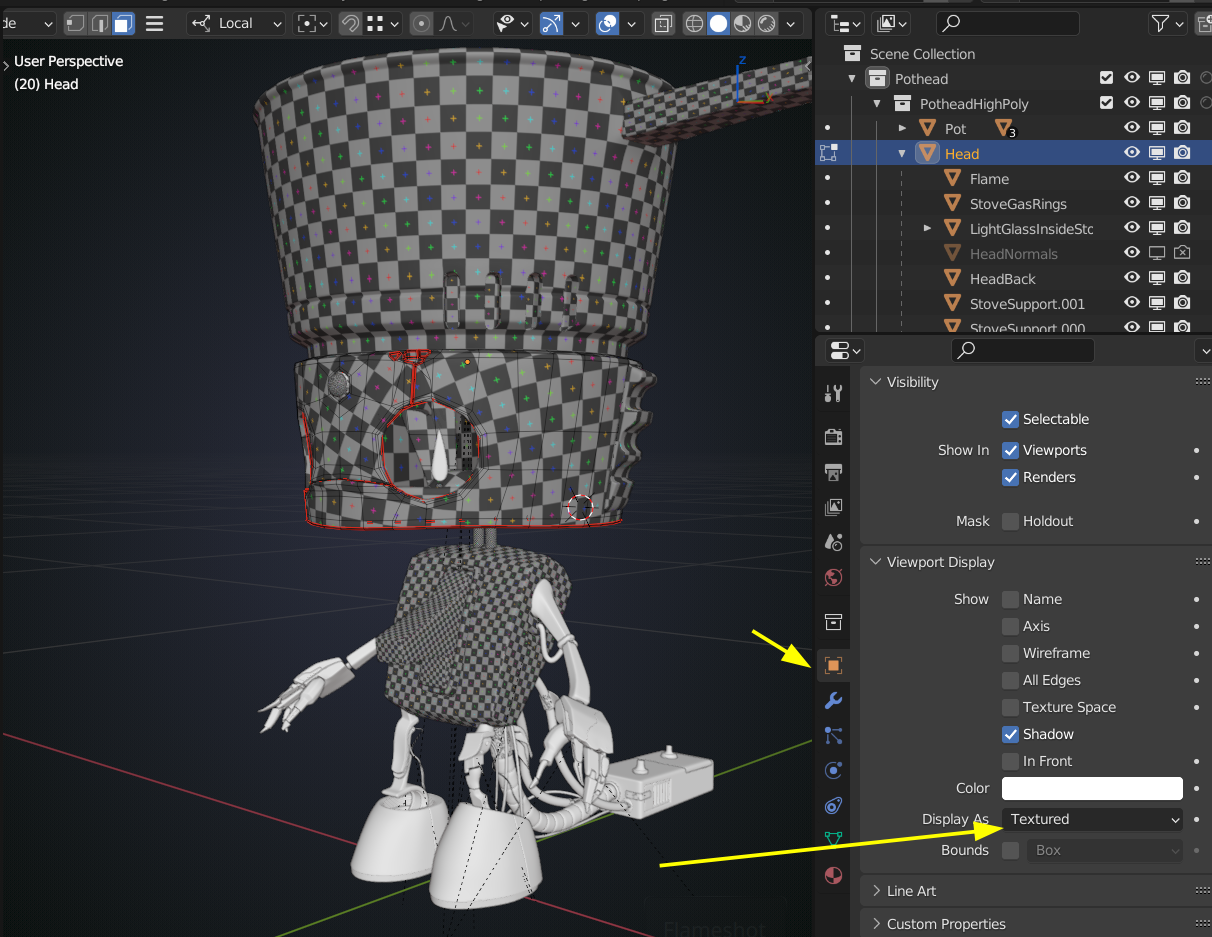

    One problem is that you have the Vieport Display set to Solid:

    The other...I don't know yet, but for some reason your Nodes are greyed out.

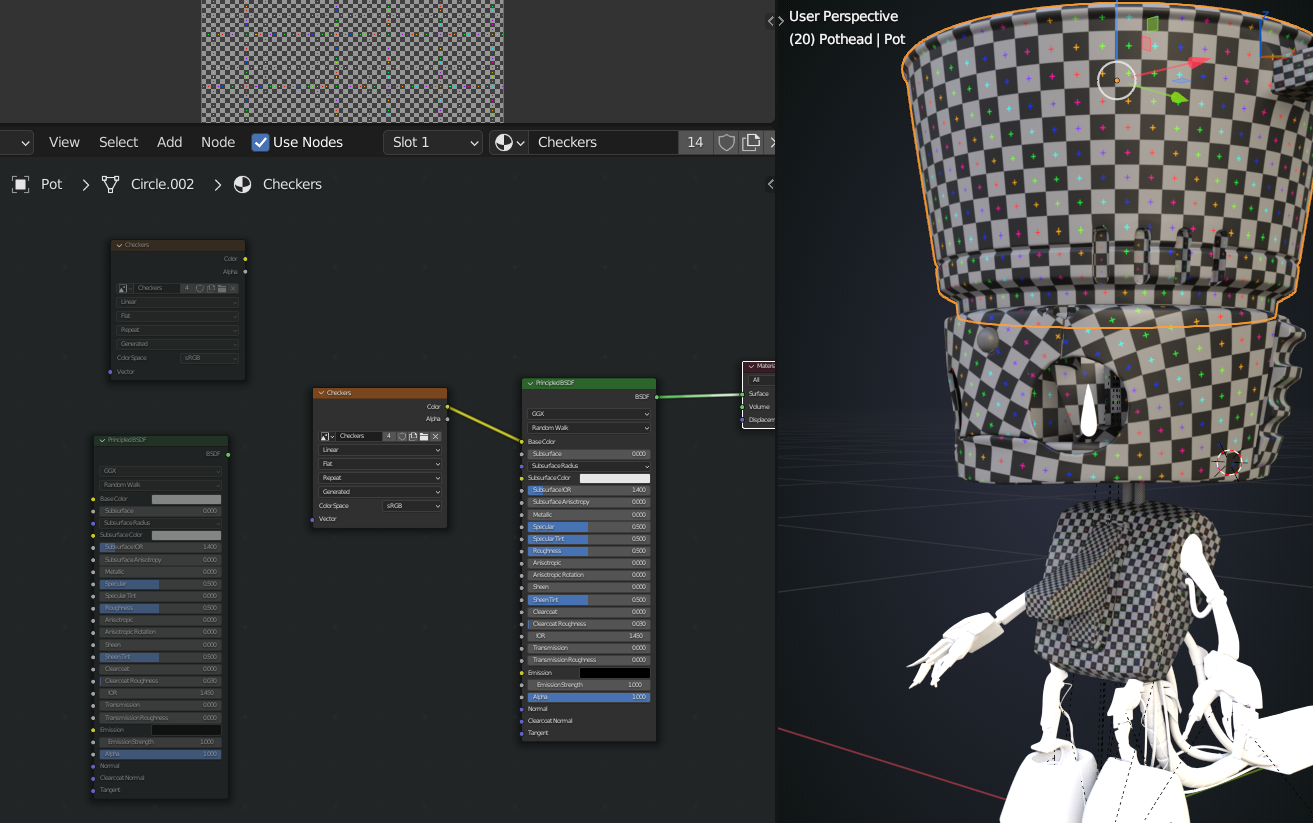

    So I just re-added them and:

    I will look into why those are greyed out, but you should at least be able to continue this way.

  • spikeyxxx replied

    Oh stupid me!

    The Nodes are just  Muted (there used to be a red line through the Node, but nowadays they are just greyed out). Select a Node and press M to toggle between muted and not.

  • Ang Deaver(shegeek) replied

    You are my hero, once again. Thank you so much.

    This is my cat Spikey, and he isn't nearly as helpful... We will have a chat about him sleeping on the job, once he wakes up of course.

  • spikeyxxx replied

    How sweet!

    Well, at least he's not lying on the keyboard :)

  • Ang Deaver(shegeek) replied

    Only because I moved it to my lap :D
