FIXED: Hole visible in multi-res & Silly Bug

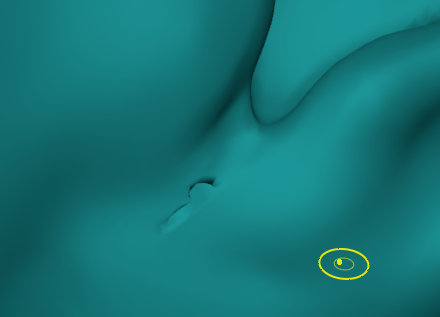

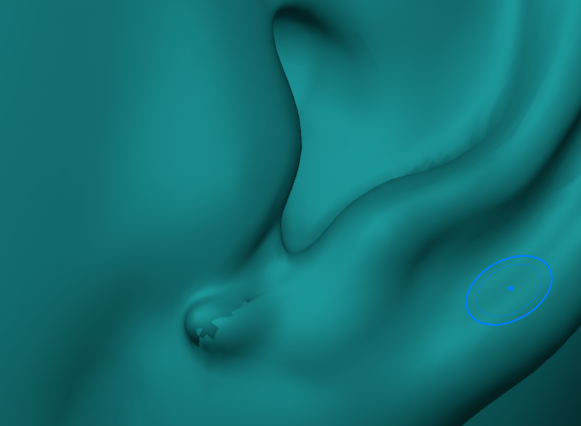

When I gave my model the multires modifier and let it rebuild the subdivisions, a small hole appeared in the ear. The hole was not there, as I projected the details via shrinkwrap onto my low poly model and there is no hole in the topology.

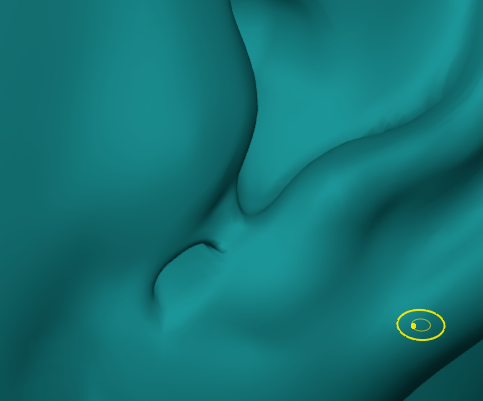

When I try to smooth it out, the hole gets bigger:

Inflate doesn´t work either D:

How can I get rid of this?

  • adrian replied

    @fide , I think the best option maybe to add an earing.

    Have you tried the simplify tool before inflate and smooth?

    This normally works for me on this type of artefact.

  • Ingrid Frank(Fide) replied

    Hey, thanks for the reply, @adrian2301 . Simplify doesn´t work either :(

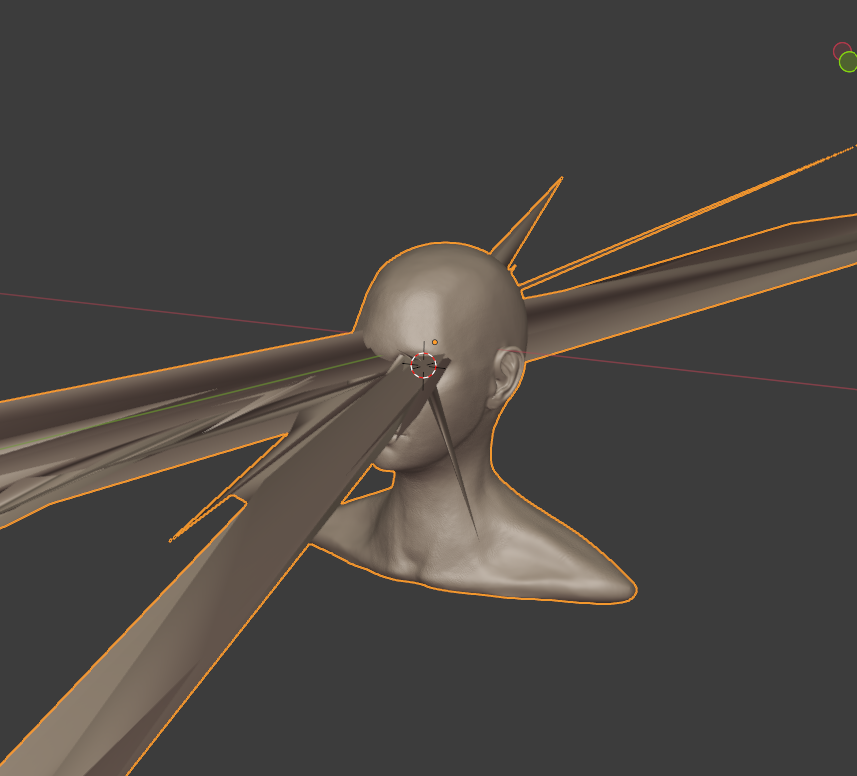

    And now I also have the "silly bug", which won´t go away either. Just as I finished the first detailing pass :((


  • adrian replied

    Oh no!

    Have a look at this Silly Bug response from @theluthier ,

    Hope this helps.

  • Ingrid Frank(Fide) replied

    @adrian2301, already did, but the fixes didn´t help. It´s really frustrating :(

  • Kent Trammell replied

    The multires "reset" method might fix your issue if you find the behavior kind of buggy, but it looks like this artifact appeared as a result of rebuilding subdivisions.

    It looks like this hole is the base of a multires "spike" artifact. Can you confirm by looking on the inside of the head for the point of the spike? Such spikes are an annoying multires bug but they can often be smoothed out as I did in chapter 3, lesson 10.

  • Ingrid Frank(Fide) replied

    @theluthier thanks for your reply! Yeah it´s one of those spikes. I am able to smooth it out in sculpt mode, but as soon as I go back to object mode, the spikes - the hole in the ear and the ones around the eye - reappear...

  • Kent Trammell replied

    Does the spike lessen when jumping to object mode? Keep in mind that the spikes are sometimes propagated through the subdivision levels. In the past I've had to smooth them out on each level to completely get rid of them 😬

  • Ingrid Frank(Fide) replied

    @theluthier the spikes get way worse when jumping to Object mode. I try to smooth them on every level, hope this helps D:

  • Ingrid Frank(Fide) replied

    @theluthier unfortunately, smoothing didn´t work either. I was able to get rid of the spikes, but as soon as I changed the sculpt multires level, no matter if one step up or one step down - where I already had smoothed the spikes- they reappeared. When I toggled local view, without changing anything in the multires, they also reappeared :(

    Is there anoher way to get rid of them?

    I´d hate to start over with the pore detailing part, but at this point I´m reconsidering it....

  • Kent Trammell replied

    Did you try the "1b" method Adrian linked to? https://cgcookie.com/questions/15239-silly-bug-please-heelp#answer-58534

    The extra step is exporting your top level of multires out as an OBJ and re-importing it before rebuilding subdivs. Exporting is a guaranteed way to refresh a model.

  • Ingrid Frank(Fide) replied

    I was able to fix it. I deleted the faces where the spikes were coming from, filled the holes again and now the spikes are gone. Luckily, the affected faces had no texture or details on it, so they almost looked the same. I had to smooth the eyelid part a bit though.

  • naiad replied

    I recently discovered that the spikes can be generated even without using multires modifier.

    Let's take a look at the following example:

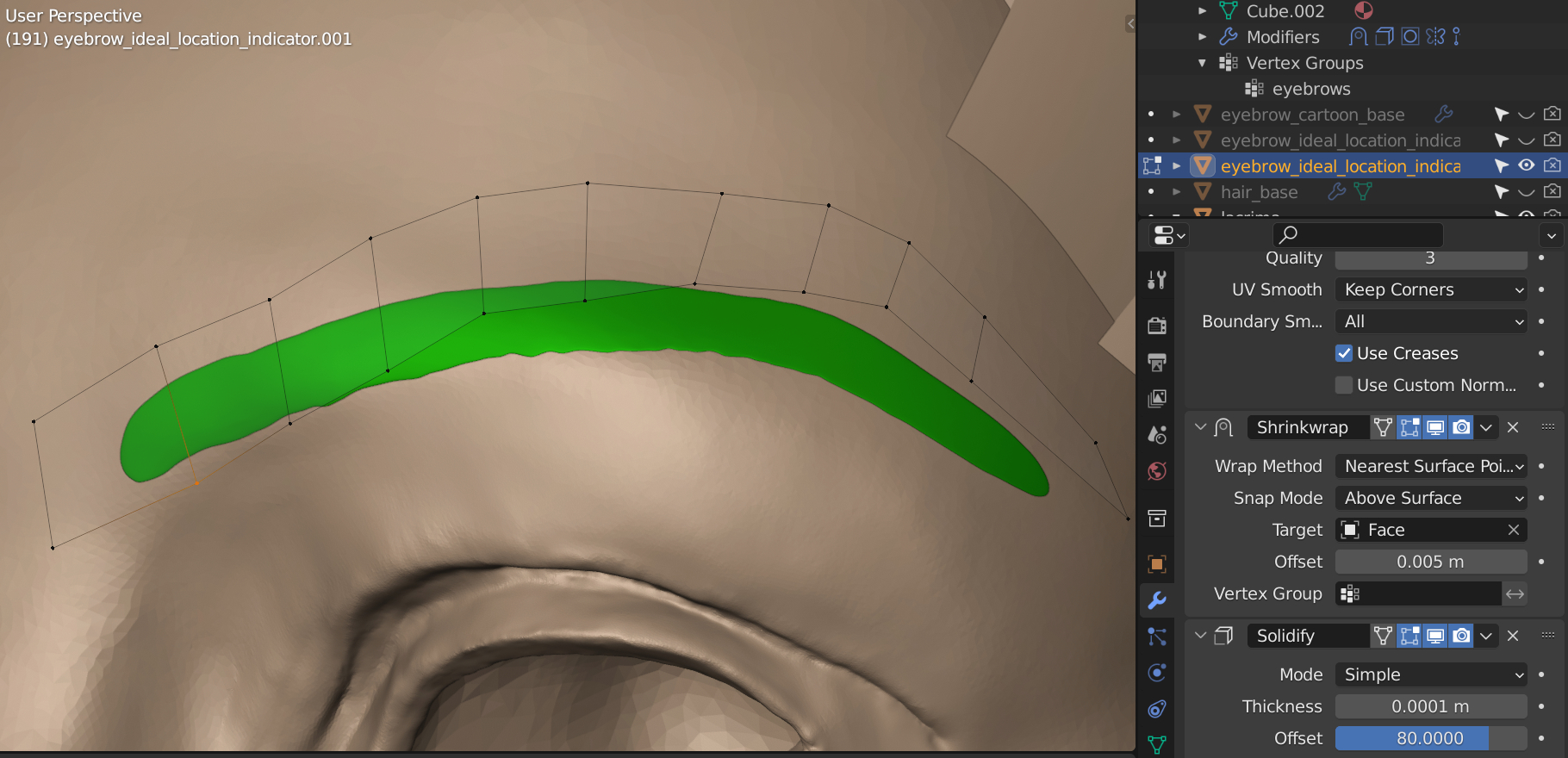

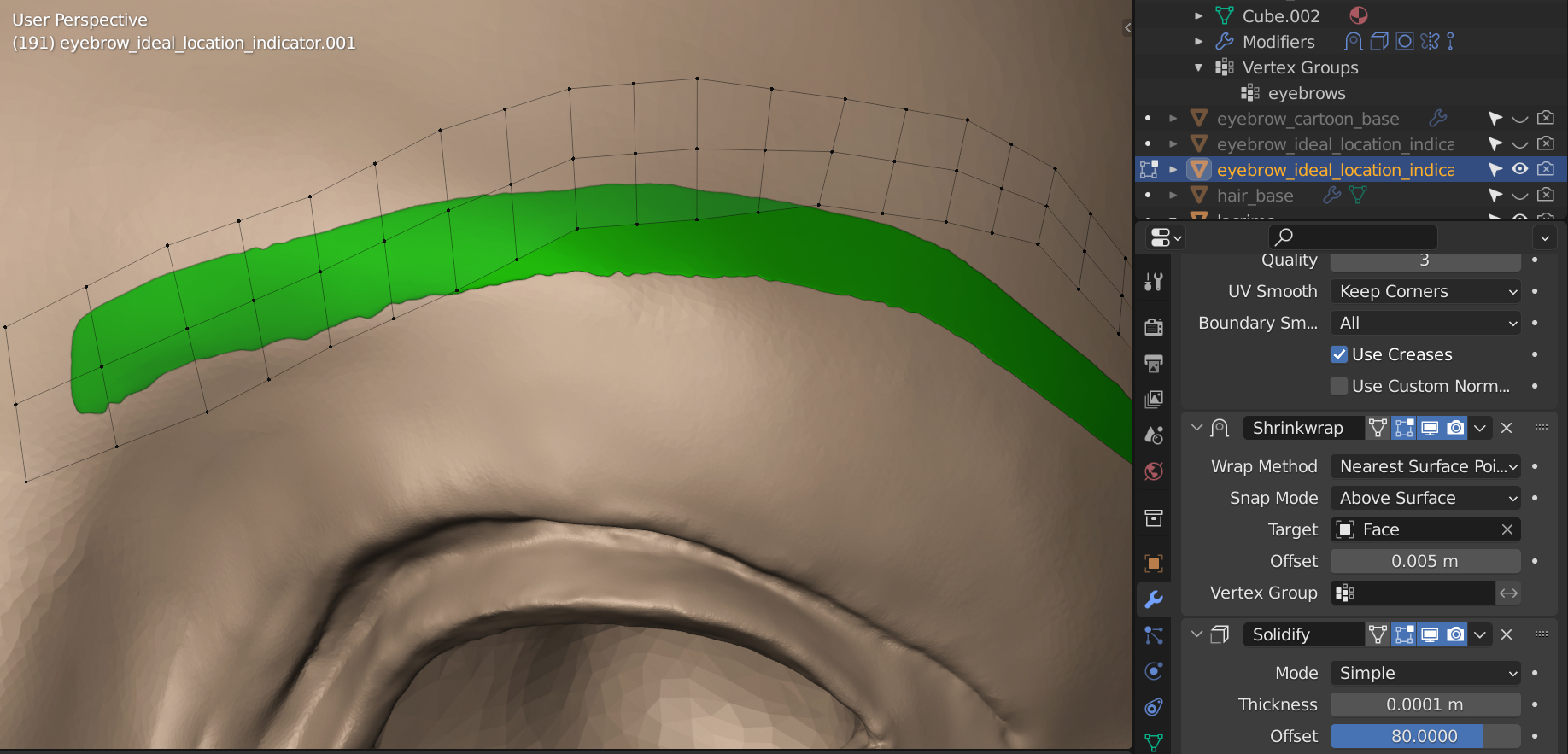

    The eyebrow made by a separate mesh is shrinkwrapped on the un-retopologized head.

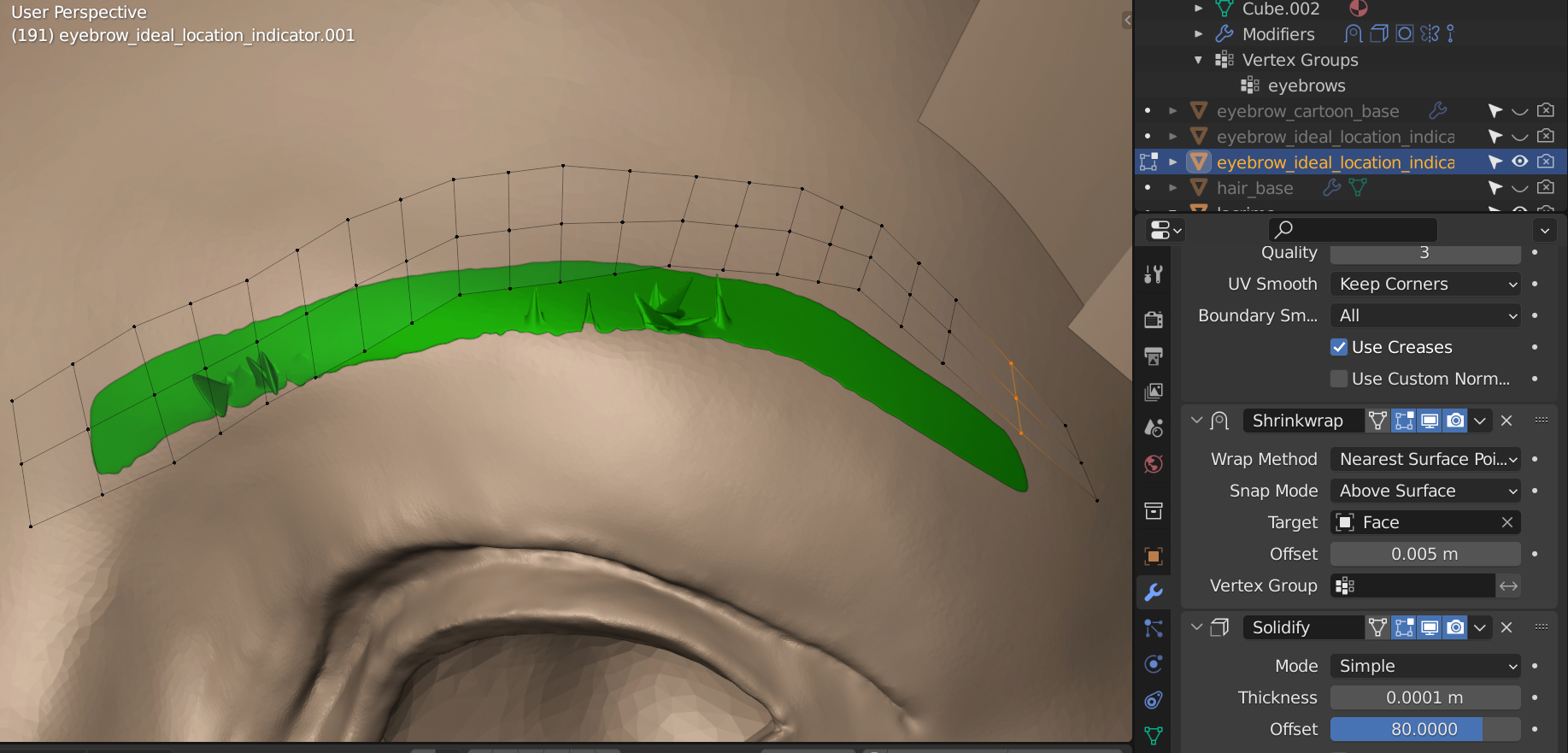

    The small spikes are generated after adding loop cuts on the eyebrow mesh as the following screenshot shows:

    Now, let's select the head and go to the Sculpt mode and turn on the Dyntopo. Use Draw or Simplify brushes to remesh only the area where the spikes occur. After that, go back to the Layout or Edit mode, and the spikes are gone. (If they are not gone, then repeat the process several times.)

    My Conclusion:

    In my cases, the spikes are caused by:

    1, the algorithm of the Shrinkwrap;

    2, the haphazard locations and shapes of the polygons from the head;

    3, the relatively denser loop cuts of the eyebrow mesh.

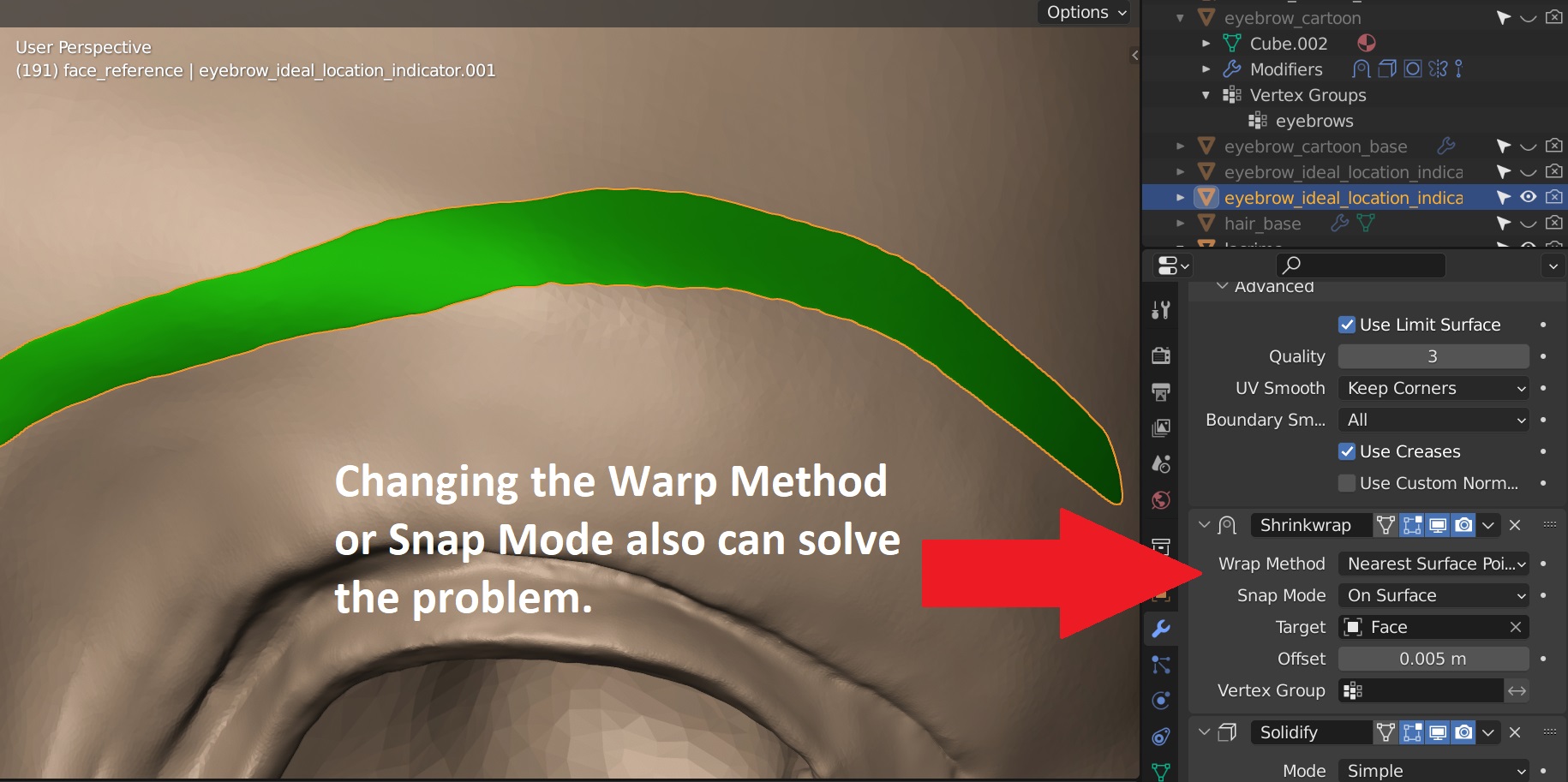

    The spikes can not be generated if any one of the three causes is eliminated in my case.

    Lastly,

  • nicoledub replied

    I also suffer from the silly bug (working with Blender 3.0) everything was ok until I've noticed a pinch in the corner of my eye, after I used smooth brush and my silly bug appeared..… honestly I've  tried everything you guys suggested and nothing works:(

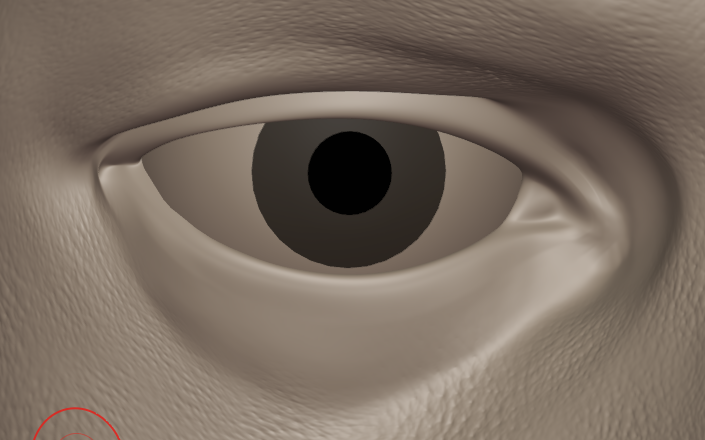

    Is there any way to salvage it or should I just leave the pinch and re detail the eye?,,,

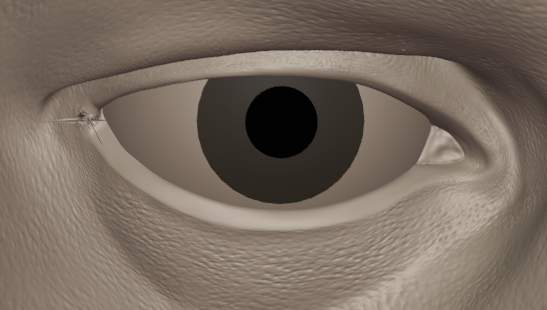

    annoying pinch  -_-

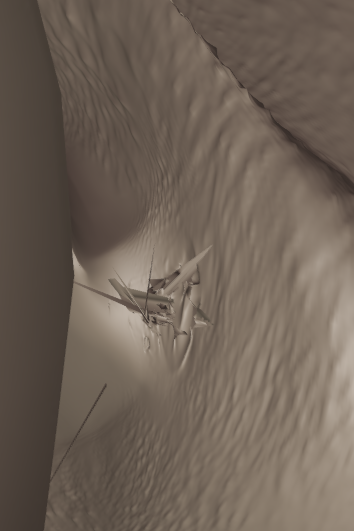

     Silly bug

  • adrian replied

    You could try using with the clay strips brush lightly just in the area where you have the issue., then smooth it back and reshape the corner of the eye.

  • Ingrid Frank(Fide) replied

    nnicoledub did you try to delete the Vertex which is causing the spike?

  • nicoledub replied

    Yes, but it made the spikes worse when I deleted the verts =/

    I've been told that once you use mulires you can't make any more changes in the edit mode, because  that will cause bugs to appear (because the multires is a ''bugy'' feature)  =/ so the only way to fix it is to either leave the pinch in the corner of the eye and continue without messing with it or to go back to the file before I added the multires and make the necessary  changes for the eye --_--

  • nicoledub replied

    So I'm written this in hope to help anyone who will have the same problem as I did=]

     The way that I eventually dealt with the ''silly bug'' was going back to my file before we applied the multires, I moved my verts as much as I needed  to their desired  places.

    Reapplied the step of the multires and yes that meant that I had to do all the stamp process again (but to be honest it didn't took too long:) and it was worth it ) eventually all the changes that Kent made in edit mode I did in sculpt mode with the wireframe on and multires off --- got the same result as his without Silly bug =]
