Alt+S to thicken the curved portion of the lid is acting differently in 2.90.1 than in video

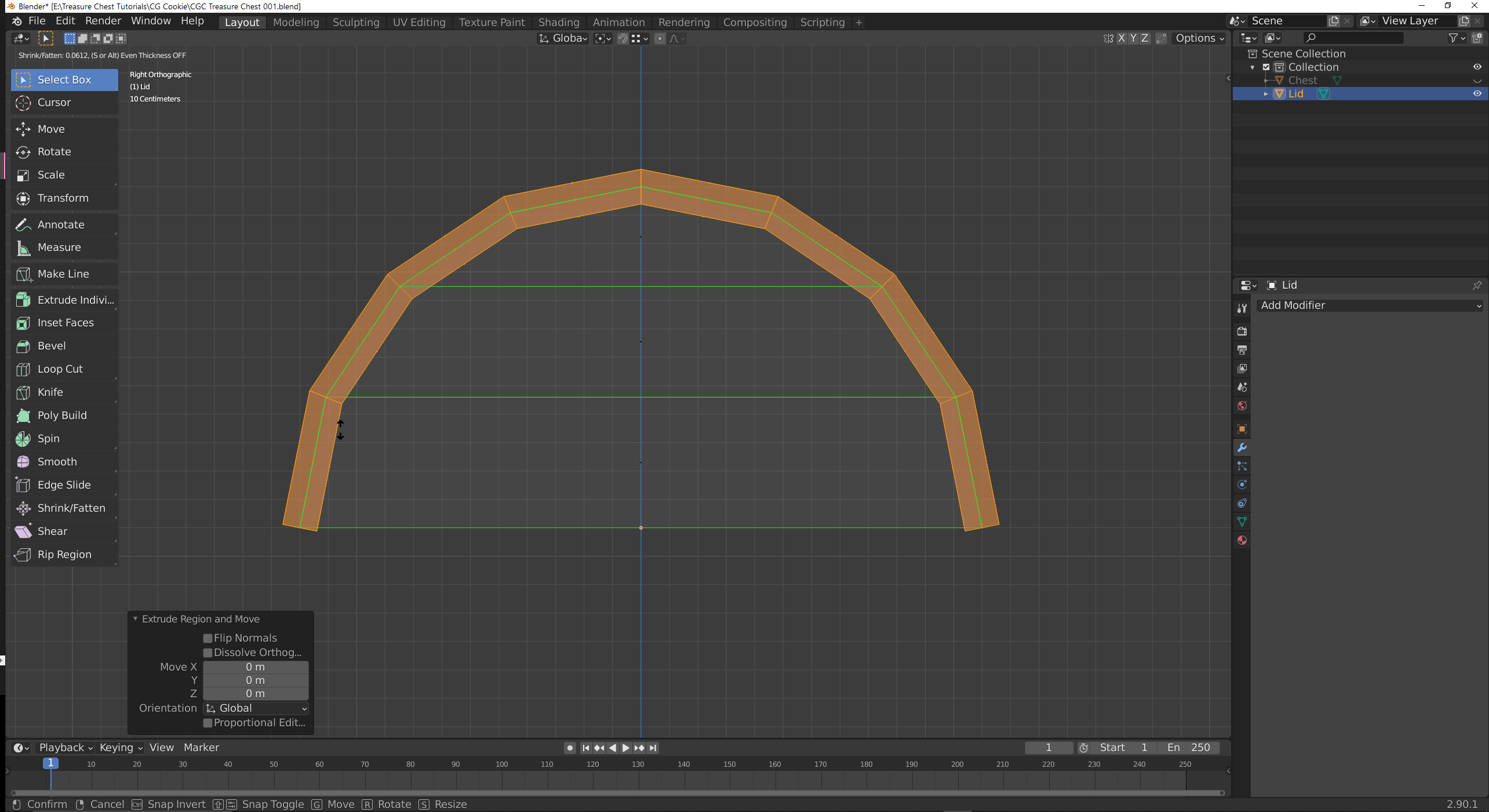

When I do this, the mesh extrudes evenly to either  side of the faces instead  of to inside or outside. Is there a setting or toggle to change this?

  • spikeyxxx replied

    The thing is, you have too much selected!

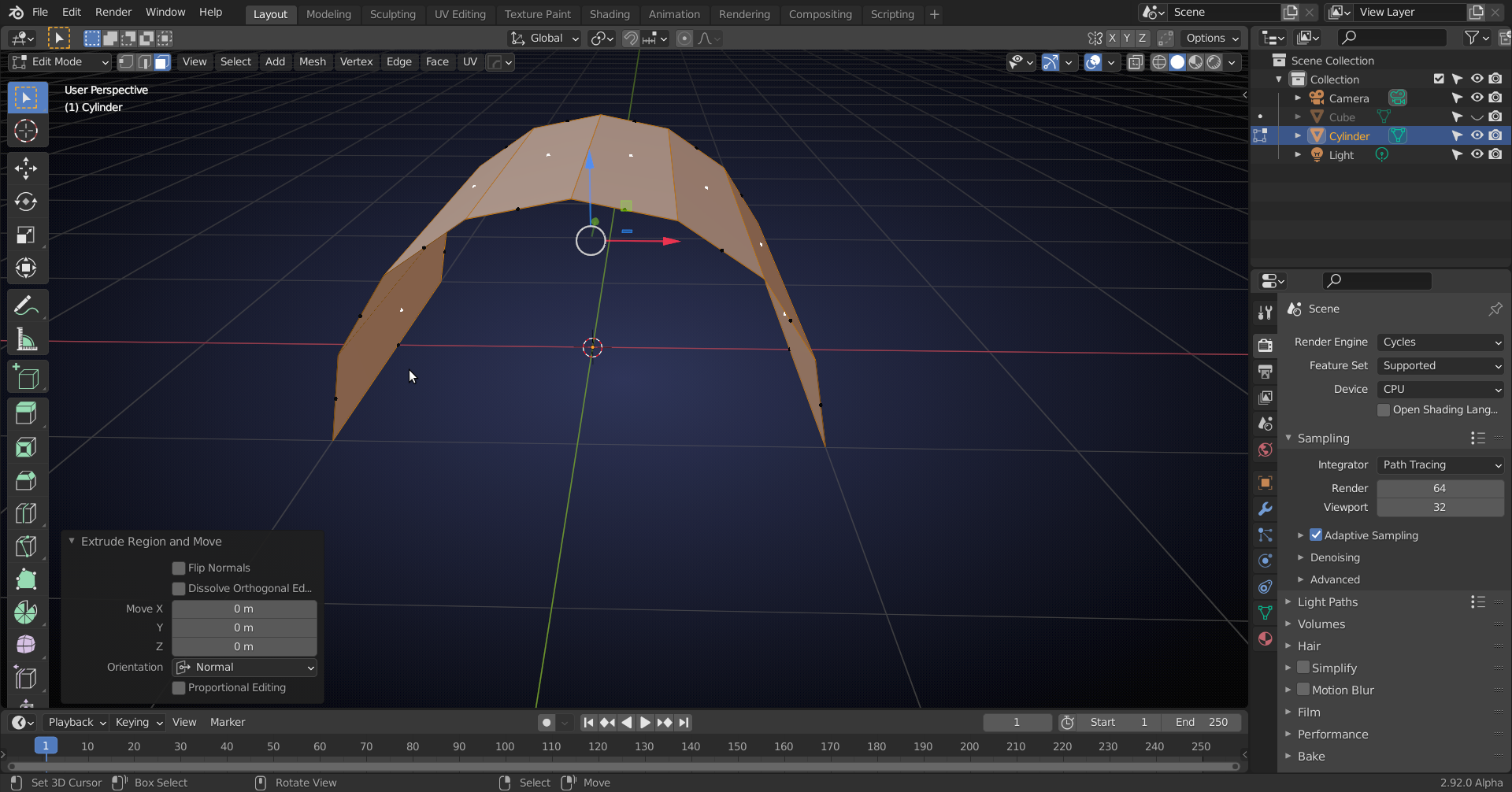

    This is how it should be. Look at the white dots (selected, in your case: orange) and the black dots (unselected):

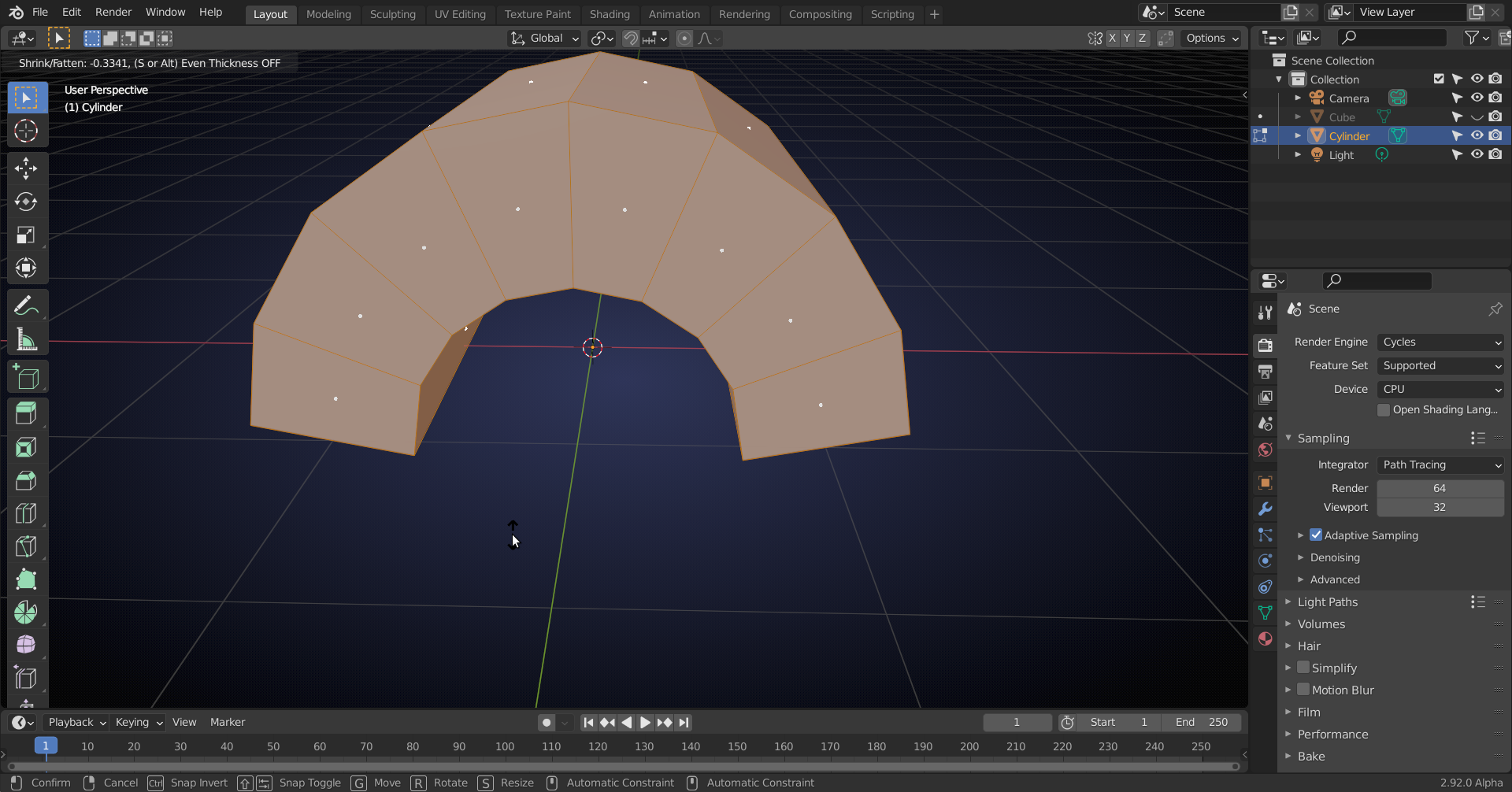

    Now this happens when scaling (as it should):

    But you must have Extruded, canceled (which doesn't cancel the extrusion, only the 'Move" that would normally follow the Extrude) and then selected 'everything' and extruded again:

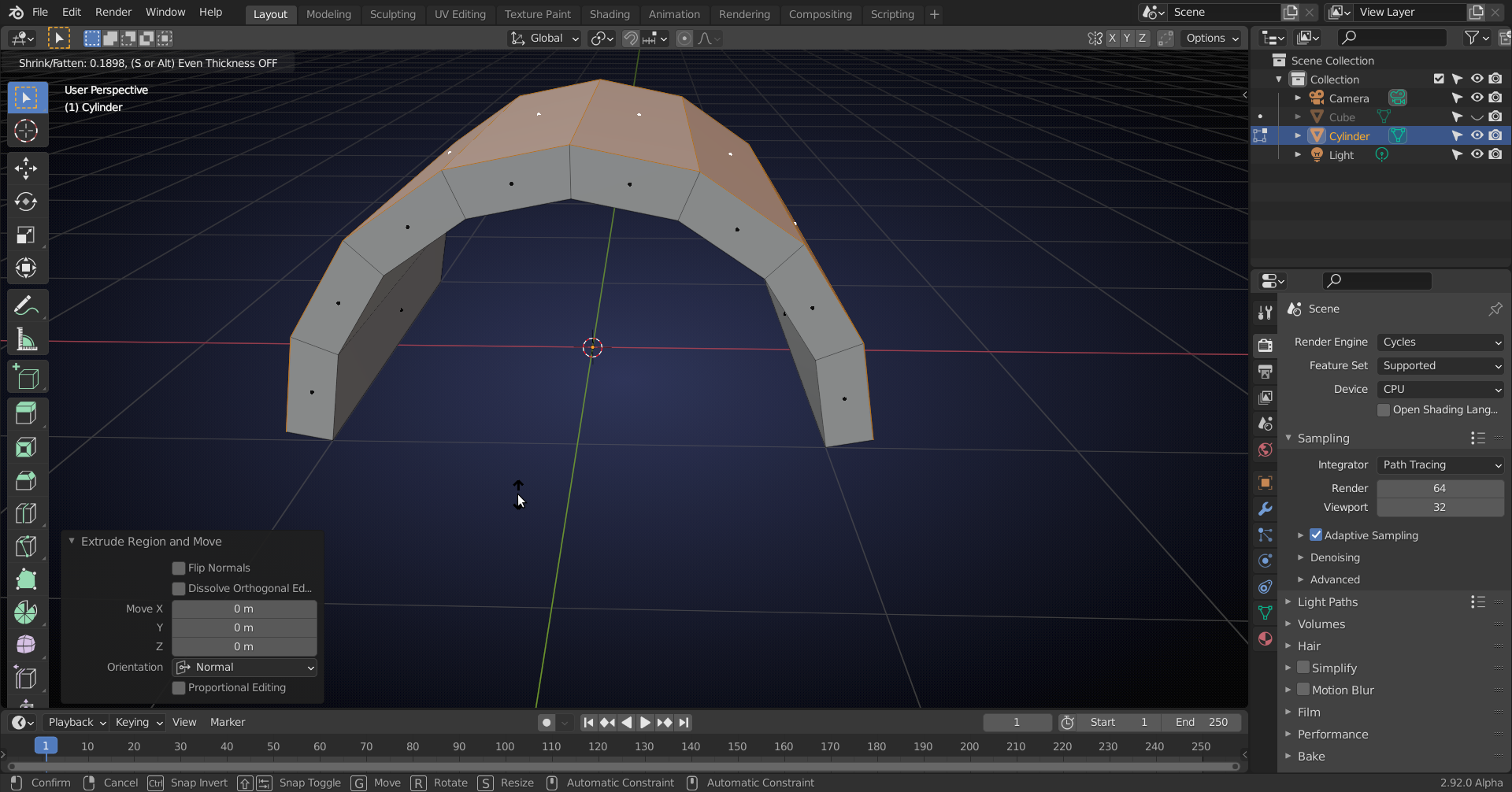

    Look at all the white dots (selected Faces). When Scaling now, this happens:


  • clydefrog replied

    Thanks for the help! I was using L to select all of the faces instead of selectin all.

  • spikeyxxx replied

    That shouldn't be the issue, you have double vertices in your screenshot ( more than one vertex at the same position), which can be seen by the black dots at the edges; they are the centers of Faces, You should use A, M > Merge by Distance! (I recommend you do this even if things appear to be working correctly now.)

    In fact: double vertices (solution : M > Merge by Distance) and flipped Normals (solution SHIFT+N) are together responsible for (a lot) more than 90% of all modelling issues.

  • clydefrog replied

    Thanks again, got it working now ;)
