boolean

posted to: Connecting the Arms
my boolean modifier doesn't work. It works when the solver is on ''Fast'' mode, which messes with the body's shape later. What do you think I should do now?
1 love
Reply
  • Martin Bergwerf replied

    Hi Nazanin,

    It's a bit hard to understand what you are talking about. What do you mean, when you say it messes with the Body's shape later, when using Fast Mode?

    There are many things that can cause problems when using a Boolean Modifier and I don't know what's causing the Exact Mode to fail in your case.

    If you can provide more information (screenshots, video, a link to your .blend file, maybe?), we might be able to troubleshoot.

    1 love
  • Omar Domenech replied

    Yes as Martin says, Booleans can be super finicky and depend on the underlying geometry a lot or other factors, so when it behaves erratically there are tons of things you have to look for. In your case we would have to look at your model, it could be the scale, double vertices or the object you are using as the boolean. More information or screenshots can help us out.

    1 love
  • Nazanin Eslami(Nazanin) replied

    Thanks for the responses, here are the files, before and after applying boolean.
    https://file.io/fUkz49MRWGfn

    1 love
  • Martin Bergwerf replied

    Hi Nazanin,

    Thank you for providing your files!

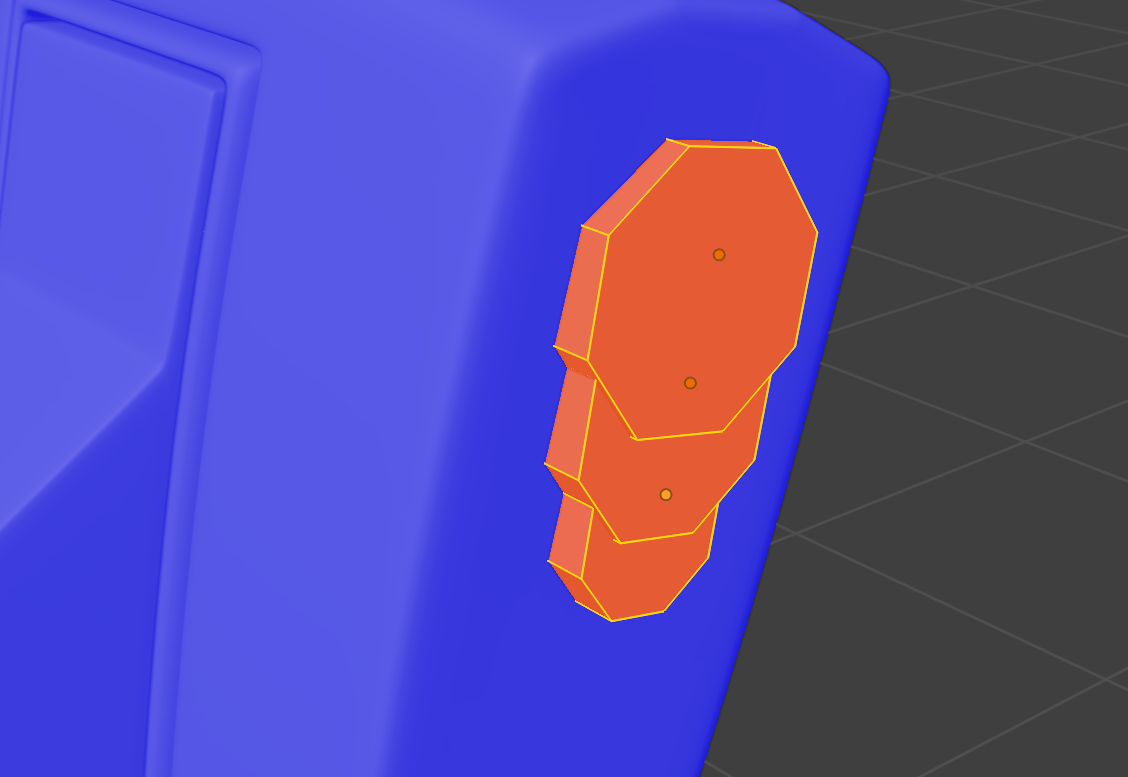

    I think that the problem is, that your 'Cutters' have wrong Normals:


    Select those three, switch to Edit Mode and SHIFT+N, should fix the Normals and then Exact works.

    I hope that fixes your problems (I didn't check you other file yet, sorry).

    1 love
  • Nazanin Eslami(Nazanin) replied
    Hi Martin,
    That was the problem!!! thank you so much for the support.
    • 👍🏼
    1 love
