Showreel, render image with multiple Passes/layers/maps

How did u the header image, where you split the render in 3 parts, separated by the black lines. like to show 3 stages of comositing. I try to achieve the same effect for a demoreel (to showcase my skills), to present my render with (basecolor, UV-layout, Clay-render, Wireframe) and i want to combine all these renders in a single image, split by small lines like yours. Would you suggest blendes compossitor for this? I guess the easiest way is to render all needed images before and then just slpit them with masks in the compositor. Any other tipps?

1 love
Reply
  • Martin Bergwerf replied
    Solution

    Hi Tobias,

    It is probably easier to do this in Krita or Photoshop, or so, but it can be done in Blender.

    (I personally would use Blender for it, because I know the software better than Krita...)

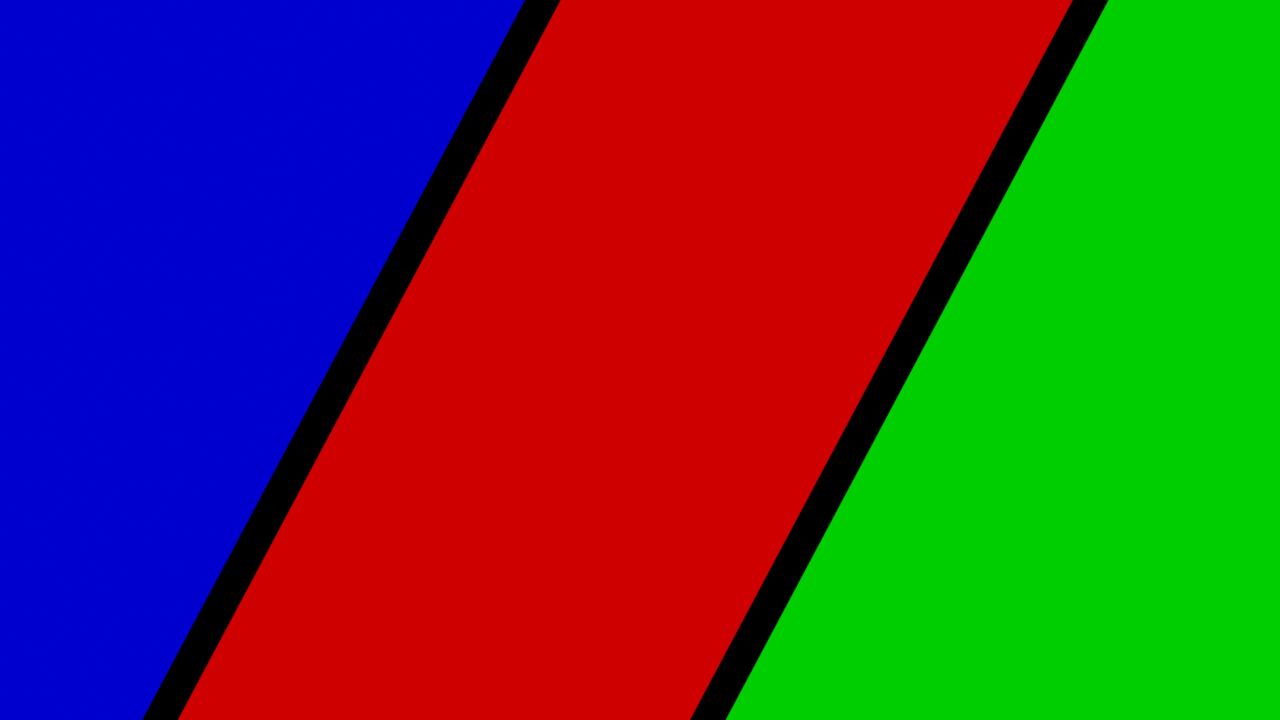

    You can for instance Render an Image like this:


    and use that as a Mask (there is a Color > Mix > Separate Color Node in the Compositor) and as a black line provider...


    1 love
  • Omar Domenech replied

    Yeah an image editor software like Photoshop or one of its free alternative would be much easier to get a composition like that going. Feels like Blender is an overkill.

    1 love
  • Kent Trammell replied

    Indeed I used Photoshop for this (I'd use Krita for it now). Martin makes an excellent suggestion for a mask that could be utilized for the compositor!

    1 love
  • Tobias Schmid(benkroft) replied

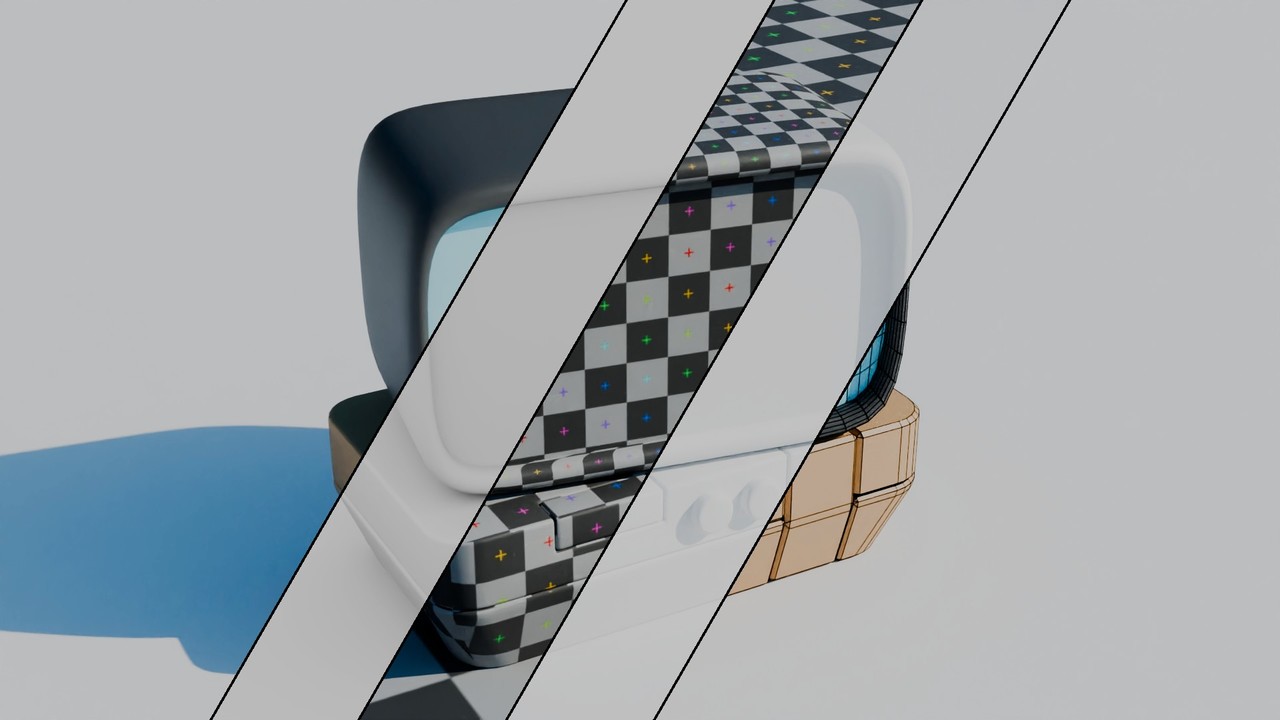

    Thanks for the replies. I came up wit a solution in belnder. I use a gradien texture in the compositor and some math like greater than to get sections and masks to separate images. The nice thing in blender is its procedrual and animatable.Render7.jpg

    • 🍪👏
    • well done!👏
    • 👍🏻
    • 🤘🏼
  • Kent Trammell replied

    benkroft Please share your showreel with us when you're done 🙏

  • Tobias Schmid(benkroft) replied

    I have used it here on the demoscene
    https://www.artstation.com/artwork/Ry4QAA
    and also on a geometry node loop
    https://www.artstation.com/artwork/xDVbdE

    The effect has still some limitations but works for now with 5 or less images. I like to update it and cleanup the bugs in the future

    • 🤘🏼
    • 😍👍🏻
