Bevel menu

posted to: Outlining the Shape

Soo, in the second video of PRESS START, when the first selection of vertices that are to be beveled, there is a window that pops up on the left side of the screen to adjust settings of the bevel. Didn't see in the video what keys that were used to open the menu for the bevel tool. Help please.

  • Martin Bergwerf replied

    Hi boshjosh87 ,

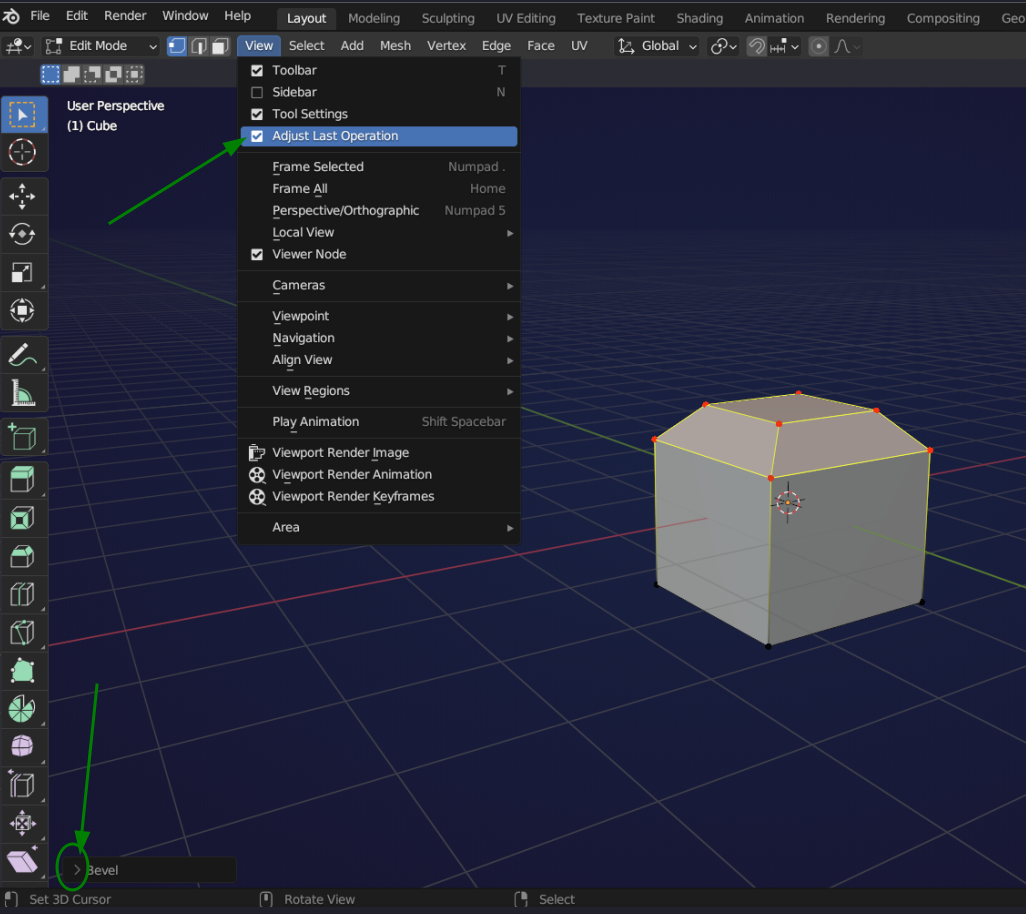

    That is the Last Operation Menu and no key was pressed, it appears by default. If you can't see it, go to View and check the box.. maybe it is there but still collapsed, then you can use the little 'arrow' to open up the Menu:


    Alternatively, you can press F9 to get the same Menu (where your Mouse Pointer is).

    Be aware that it shows the last Operation, so if you do anything else, the Menu changes and you lose the agility to change the Bevel Parameters. Then you'd have to go back in time with CTRL+Z.

    1 love
  • Omar Domenech replied

    I guess that about covers all that can be said about that. Martin left no stone unturned. A nice WBW content if you ask me. Thanks Martin.

  • Joshua Bouillion (boshjosh87) replied
    Apparently the menu is appearing at the top of the viewport. Although when inputting the numbers into the parameters nothing seems to be changing.
  • Martin Bergwerf replied

    boshjosh87 ,

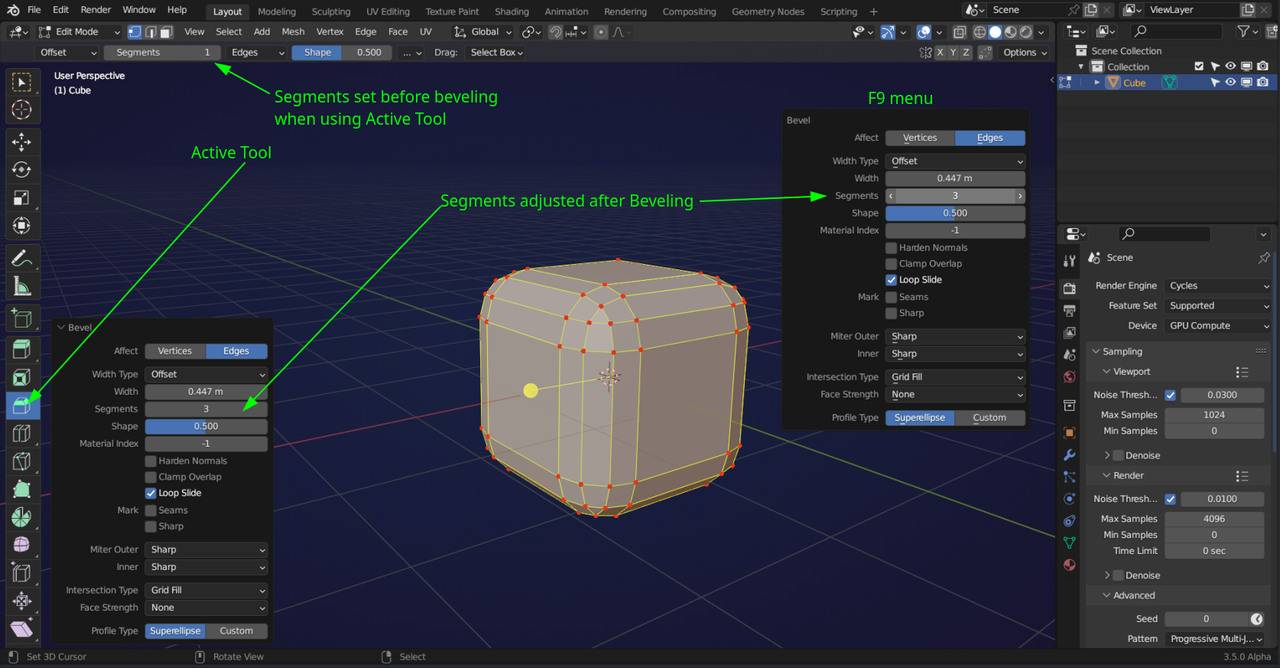

    That sounds like you're using the Active Tool Bevel instead of just CTRL+B.

    That behaves slightly different to the normal Bevel operation (CTRL+B).


    Those numbers on the top of the Viewport that you are talking about are to be set before using the Active Tool. If you want to change things after the bevel has been done, you use the Adjust Last Operation. Bottom left corner or F9.

    • 💯
    • 👌
