even loop cuts issue

Contests and Challenges

from along time using blender l can't actually get 100 % even loop cuts ..... even l turn even on or let it off nothing actually becomes better ...... l applied the scale by the way

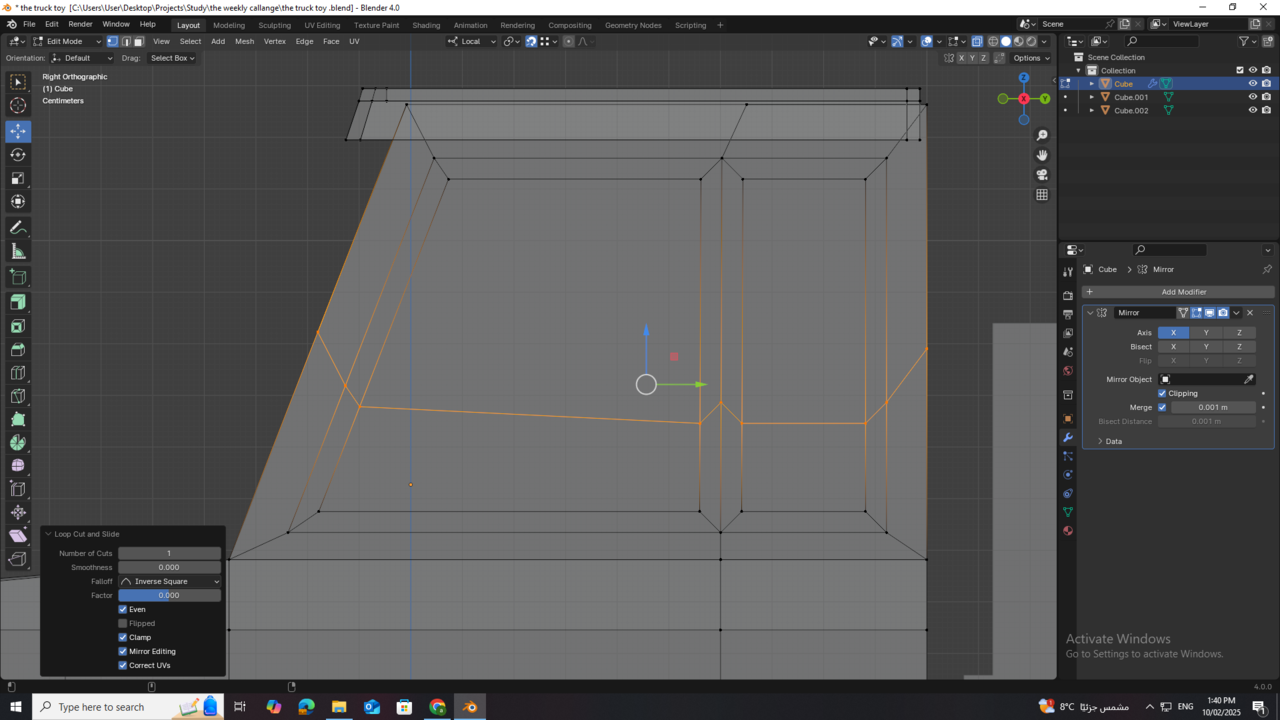

thanks in advance Screenshot (69).pngScreenshot (68).png

1 love
Reply
  • Martin Bergwerf replied

    Hi Ahmed,

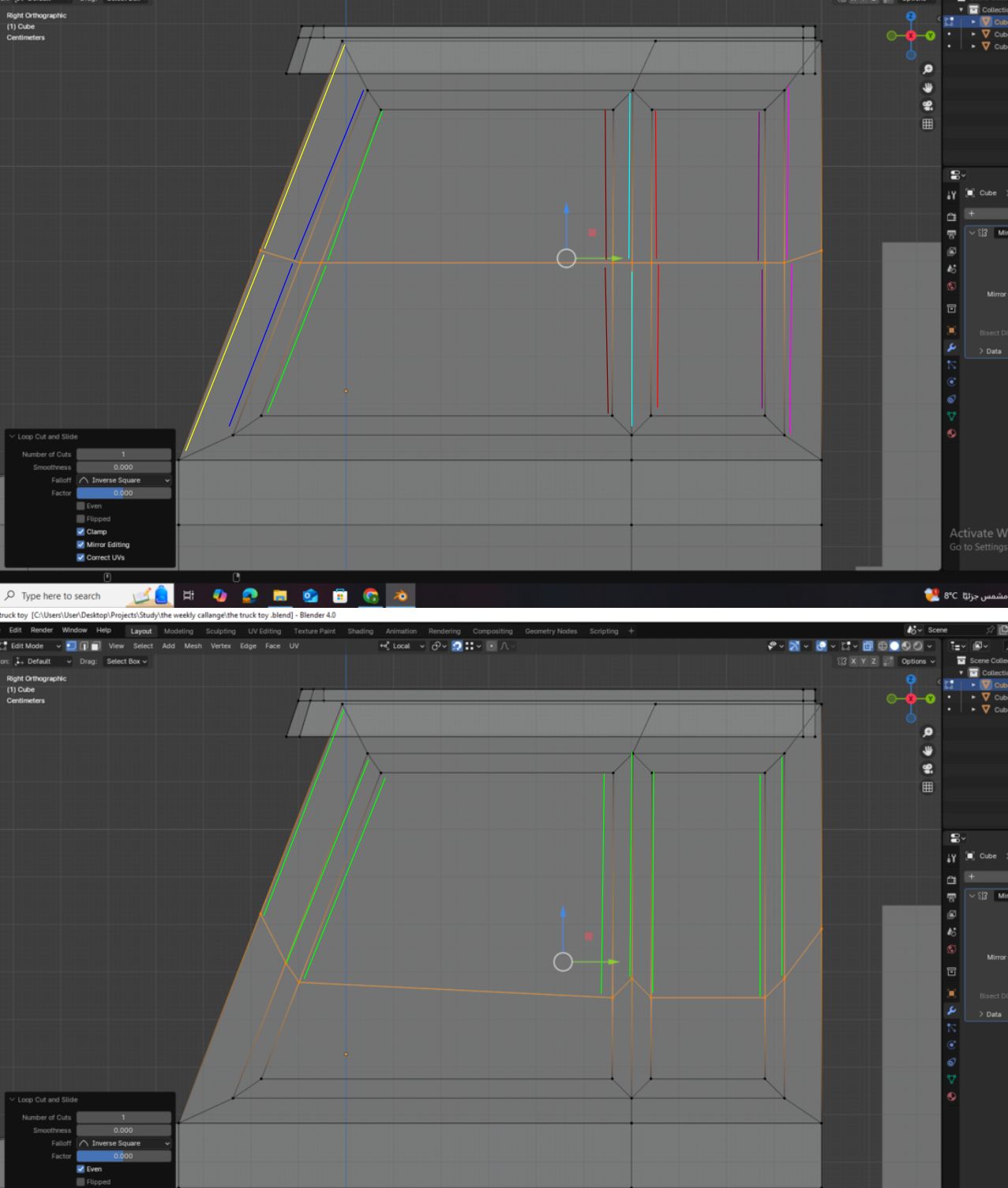

    Maybe this will clear up how Loop Cut works and what Even means:

    Loop Cuts.png

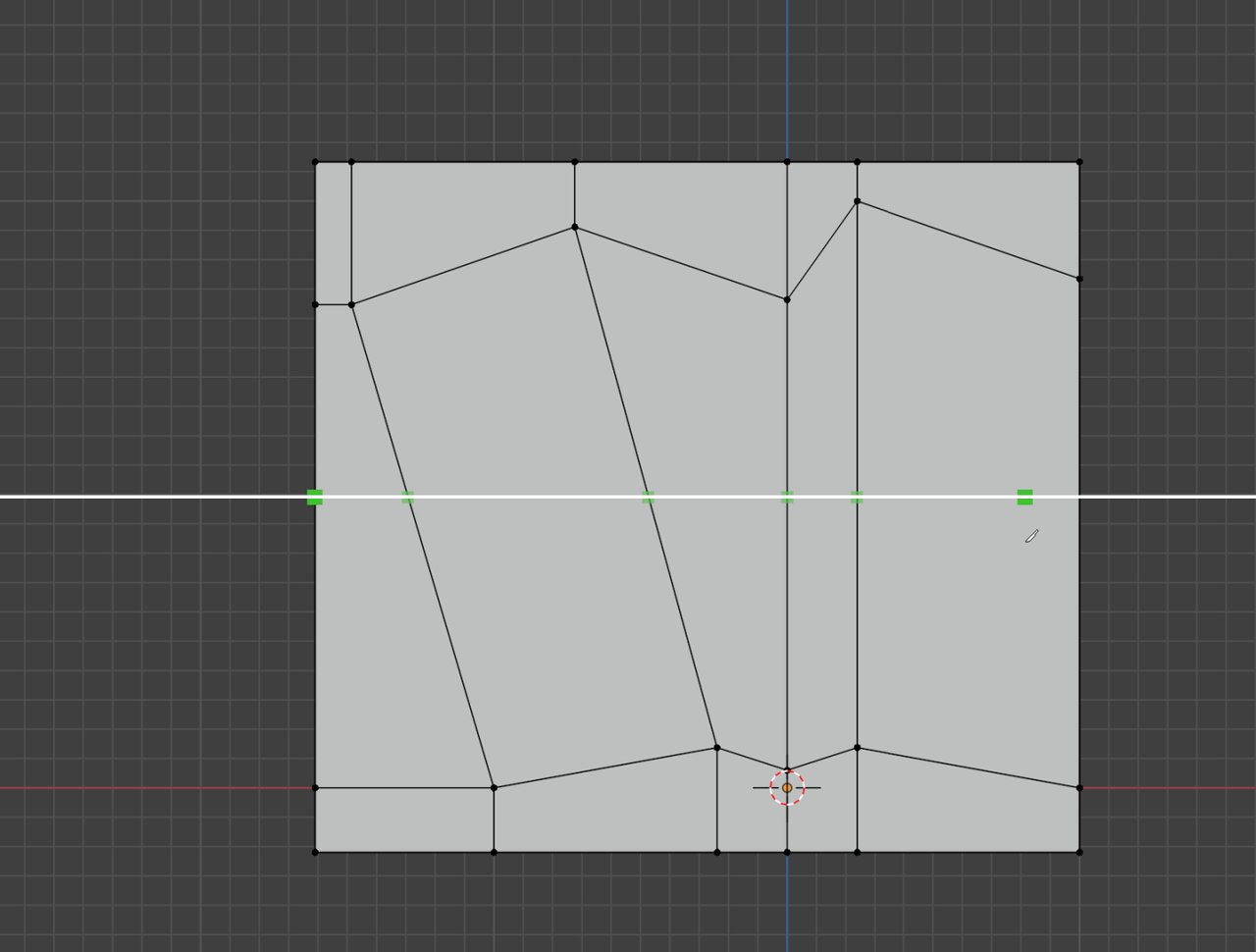

    What you might want to use is a Knife Cut: K(nife), A(ngle Constraint), C(ut through), ENTER:

    Knife Cut.png

    2 loves
  • Omar Domenech replied

    As martin showed, since the length of your edges vary, the middle point will be different for each of them. So Blender is making them even. The thing is a loop cut is not the right tool for the situation. So yes, a knife cut will do the trick in this situation.

    2 loves
  • Martin Bergwerf replied

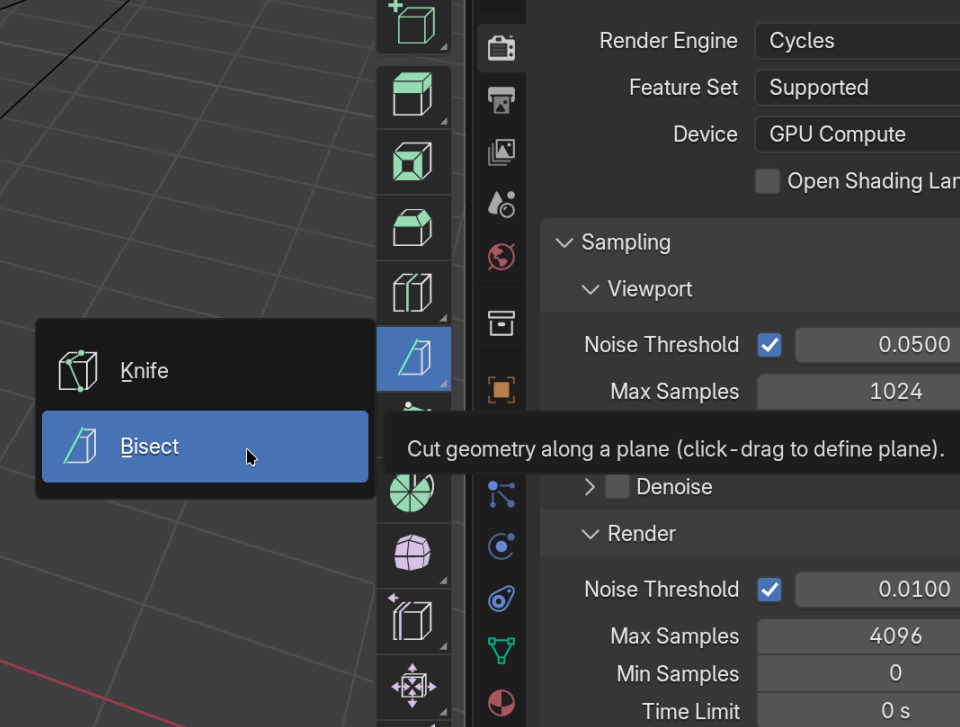

    Another Tool you could use, is the Bisect (Submenu of the Active Tool Knife):


    This can also be found under Mesh > Bisect.

    You will need to Select your Mesh, or at least the part that you want to cut through.

    To be honest, I hardly ever use this one (because I forget it exists, not because it is bad).

    2 loves
  • Ahmed Wael(Ahmed Wael) replied
    thank you both ...... big luv
    • 👍
    • 🤘🏻
    1 love
