Is there a spline 'loft' in Blender?

posted to: Modeling the Handle

This was good but I'd have wanted to loft a custom shape around the bezier spline. Is that possible? ie what if I wanted a flatter ribbon or perhaps a square leather loop rather than the perfect circle the bevel generates

1 love
Reply
  • Omar Domenech replied

    I guess you mean something like this?

    https://cgcookie.com/lessons/modeling-trim

  • Jonathan Lampel replied

    I don't think you can create a surface from the curves themselves unless you use geometry nodes, but you can easily loft meshes using the Bridge Edge Loop tool. You'll need to convert the curves to meshes, but once you do that then you can bridge and use the following settings:


  • Dwayne Savage(dillenbata3) replied

    You would use a curve as the loft path(path). Then use a curve as the profile(profile). Then you can adjust the spin of the loft(tapper). To do this select the path curve and in properties editor under curve tab expand geometry panel. Under bevel change it to object the assign it the profile curve. You can adjust spin cut by selecting the tapper curve under taper object which should be above bevel if I remember correctly. At some point they added a profile option which allows you to create a profile without having to use another curve. I think it was 2.92.

  • Martin Bergwerf replied

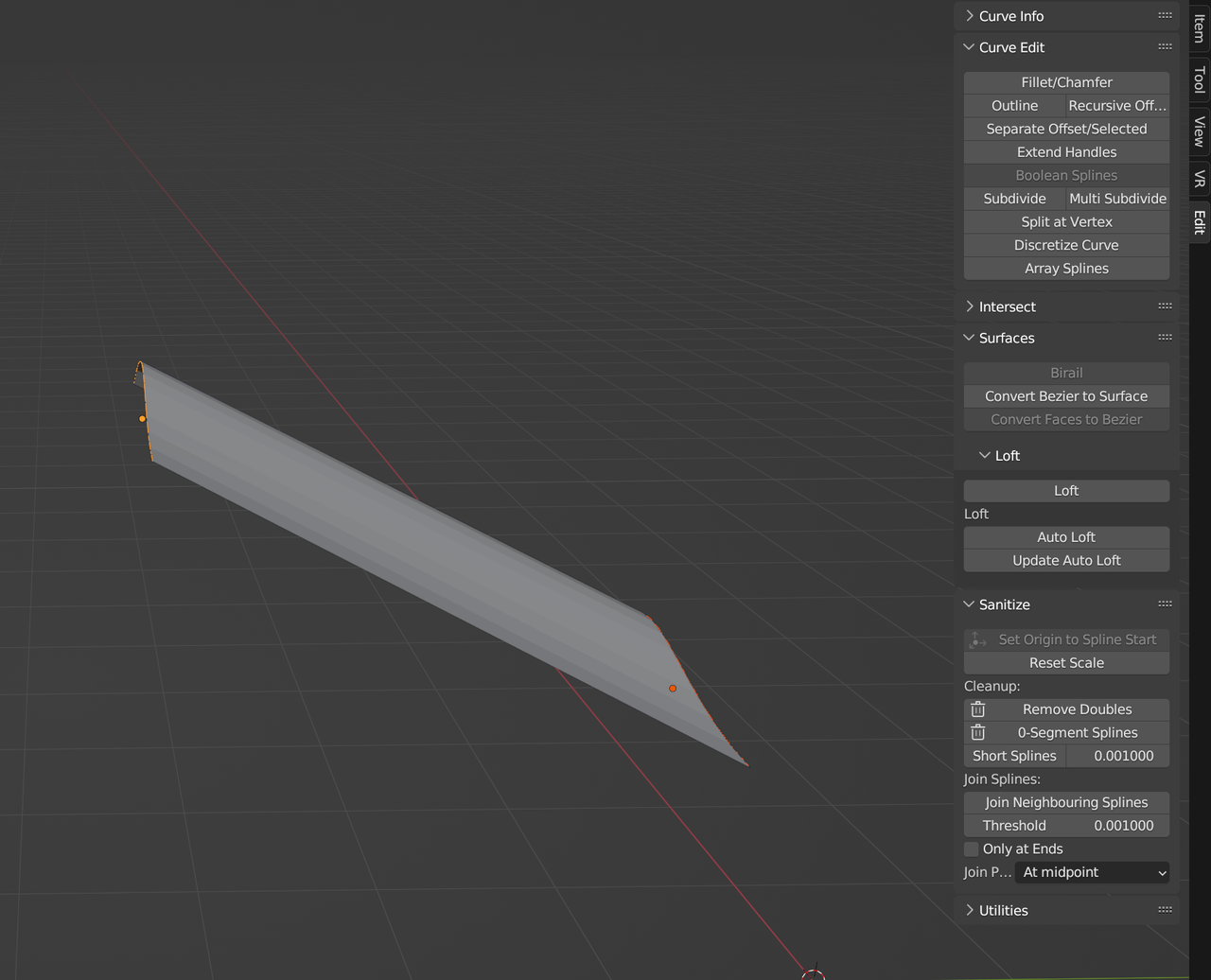

    And there is an Addon that comes with Blender: Edit > Preferences > Addons > Add Curve: Curve Tools:


  • thehomme replied

    Wow. Thanks all! Yes this is exactly what I was asking.

    I didn't realise all my comments showed up in the forum - I thought they'd only be seen in the context of the comment on the tutorial.  Now I know this I'll be a bit more judicious when asking a question. Don't want to annoy anyone!

    • 🤘🏼
    1 love
  • Adrian Bellworthy replied

    That's what we do!
    The awesome CGCookie community is always happy to help answer whatever questions you have.
    Don't hesitate in asking your questions, or adding your comments.

    You could also join us on Discord, a place where you can enjoy deeper Blender discussions.

    1 love
