inset not working

I cant inset the cartridge slot. Because its insetting all of the faces.

  • Krzysztof Kluczyk(UserData) replied

    Try pressing 1 and then A to select all vertices and then M and select by distance. Worked for me

  • Omar Domenech replied

    Hello. Can you can give a little more context to the problem? It can be a number of things, so to really come up with the solution it's easier to see the problem. If you can describe more about the problem add a screenshot or even a recording screen capture.

  • v i(SuperNova) replied

    its insetting all the faces individually.

    023-03-18 093019.png

  • Martin Bergwerf replied

    Hi vi SSuperNova ,

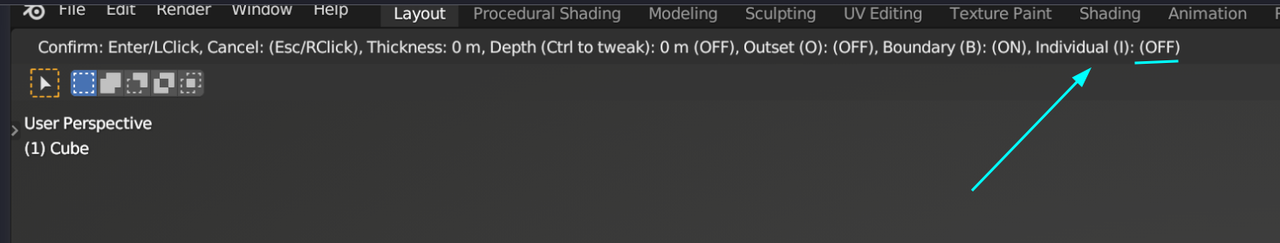

    It is possible that you accidentally pressed I twice, the first one is to activate the Inset tool and the following times it toggles Individual off/on:


    Try Pressing I again and see what happens.

    The other possibility is, like already mentioned above by Krzysztof UUserData , that you have 'double Vertices'. Try Merging.

  • v i(SuperNova) replied

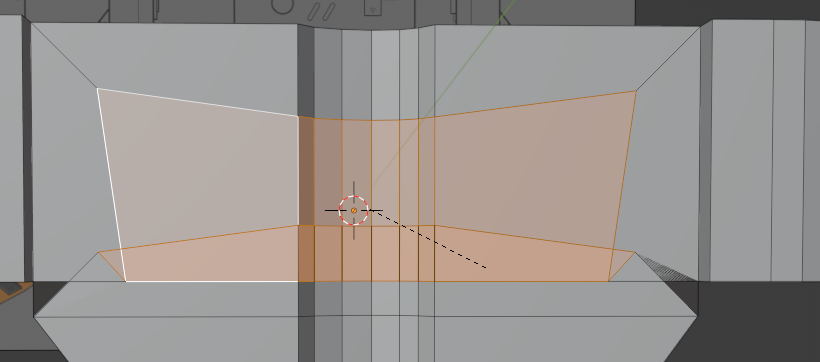

    I tried to merge the vertices but it deleted 0. I also turned individual off and now its better but its still not working.023-03-18 104336.png

  • Martin Bergwerf replied

    Hi vi,

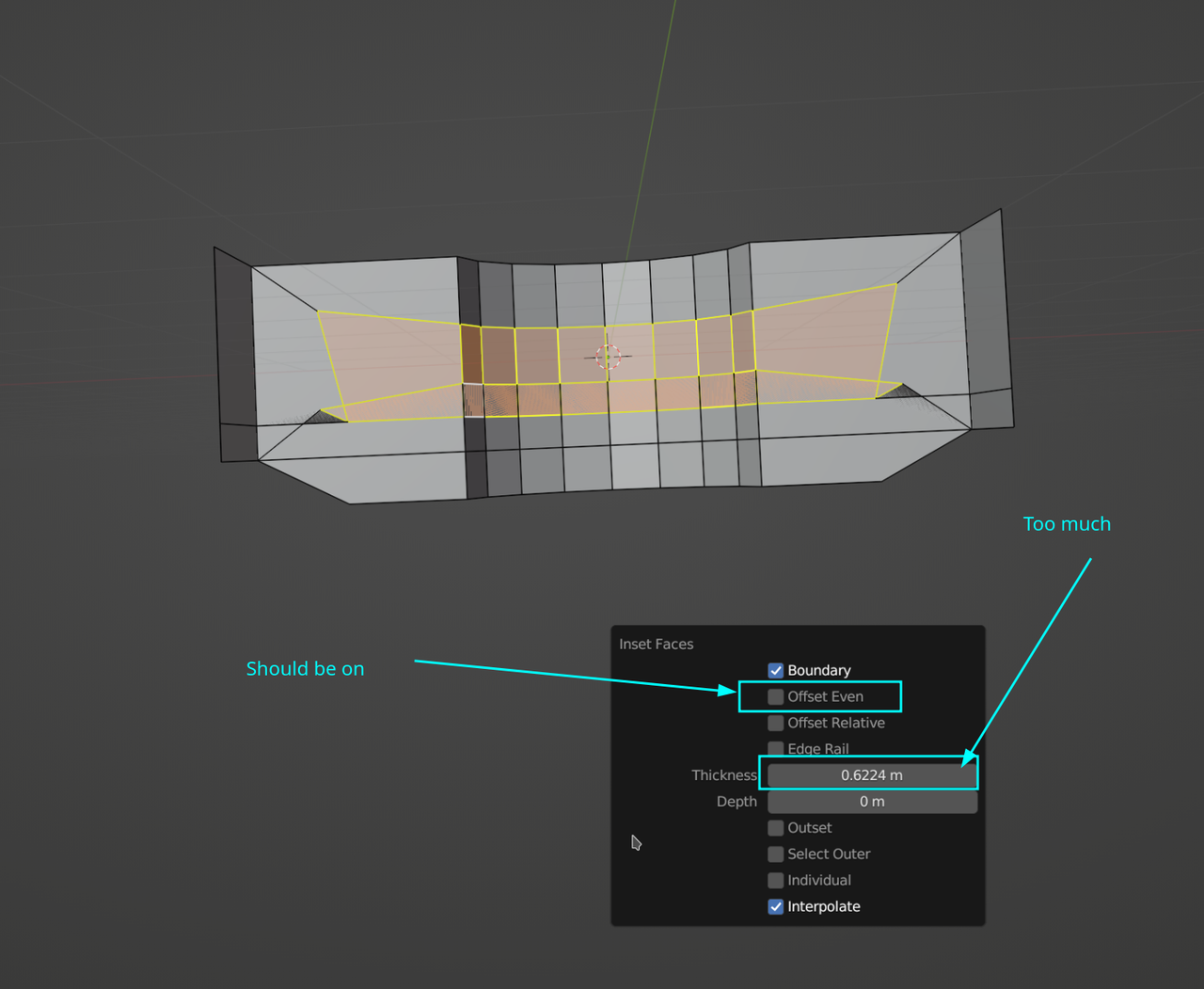

    please check your Inset settings:


  • Omar Domenech replied

    Yes there can be such a thing as inseting too much. You can go past a threshold and end up overlapping your faces. Just get the inset until you reach a point where the faces don't overlap, then you can arrange the cartridge slot to your liking by arranging the vertices.

    For example, you can select a row of vertices and scale them to zero in the X o Y axis by hitting on your keyboard, S to scale, followed by the axis, so Y or X and then zero and it will align those vertices. That way you can arrange you slot.

    You can always upload your file and give us the link if you want us to take a look at it.
